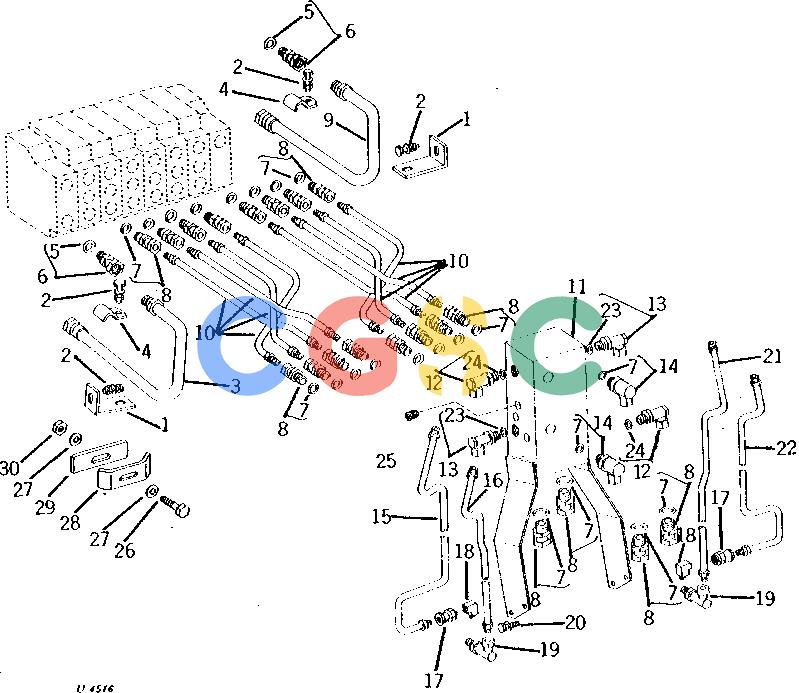

约翰迪尔零件查询93 - BACKHOE OIL LINES AND FITTINGS - CONTROL VALVE TO MANIFOLD BLOCK 93 ( -005700) AND 95 ( -002450) [EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 417 次

Pos.	Part No	Qty	Parts name	Comments
1.	........	[2]	Clamp	( U16400 NO LONGER AVAILABLE)
2.	19H2676	[4]	Cap Screw	HS, SAE 8, 3/8" X 1"
2.	12H304	[4]	Lock Washer	3/8"
2.	14H812	[4]	Nut	3/8"
3.	AU13396	[1]	Tube
4.	U13635	[2]	Clamp
5.	U12547	[2]	O-Ring
6.	AU11654	[2]	Fitting
7.	R26906	[24]	O-Ring
8.	AU11753	[20]	Union Fitting
9.	........	[1]	Line	( AU13397 NO LONGER AVAILABLE)
10.	AU11507	[8]	Hydraulic Hose - Fabricate	470 MM (1/2" X 18-1/2")
11.	........	[1]	Manifold	( AU13416 NO LONGER AVAILABLE)
12.	AN31756	[2]	Elbow Fitting	90°
13.	........	[2]	Check Valve	(SUB FOR AU13612)
14.	AU11752	[2]	Fitting	90°
15.	AU13688	[1]	Tube	BRAKE, SWING CYLINDER, R.H.
16.	AU13686	[1]	Tube	SWING CYLINDER, R.H.
17.	AM3763T	[2]	Adapter
18.	U16468	[2]	Elbow Fitting	90°
19.	AU13611	[2]	Elbow Fitting	90°
20.	19H2472	[4]	Cap Screw	1/2" X 1"
20.	12H301	[4]	Lock Washer	1/2"
21.	AU13685	[1]	Tube	SWING CYLINDER, L.H.
22.	AU13687	[1]	Tube	SWING CYLINDER, L.H.
23.	R26375	[2]	O-Ring	(SUB FOR U10778)
24.	R26375	[2]	O-Ring
25.	........	[7]	Pipe Plug	(U40053 USE IF AVAILABLE)
26.	19H3552	[1]	Cap Screw	5/16" X 1-1/2"
27.	24M7207	[2]	Washer	8.400 X 24 X 2 MM
28.	........	[1]	Strap	( U40183 NO LONGER AVAILABLE)
29.	........	[1]	Clamp	( U40184 NO LONGER AVAILABLE)
30.	14H785	[1]	Nut	5/16"
