约翰迪尔零件查询93 - BACKHOE SUPPLEMENTARY HYDRAULIC OIL FILTER AND RELIEF VALVE (WITH JD544 LOADER AND JD644 LOADER) [G11]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 615 次

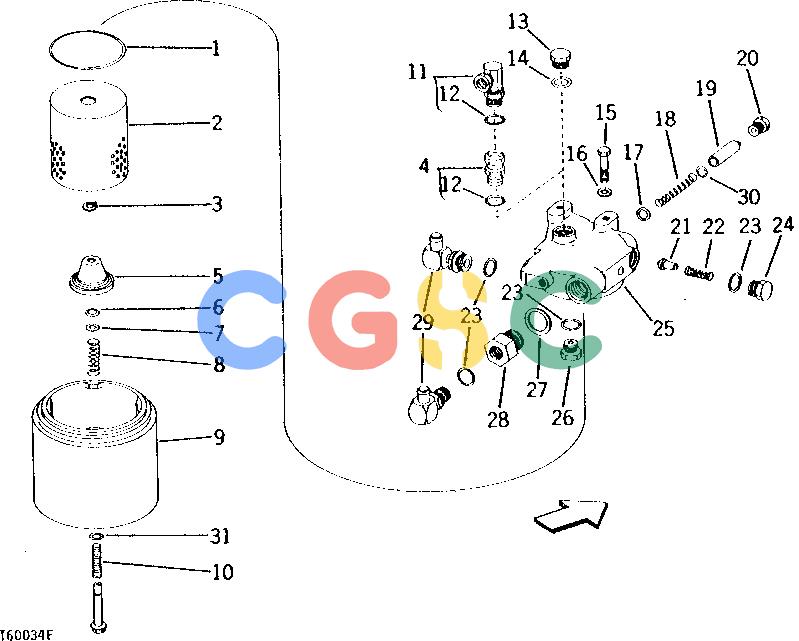

Pos.	Part No	Qty	Parts name	Comments
1.	R34733	[1]	Sealing Washer
2.	AR75603	[1]	Filter Element	(SUB FOR AT34670 AND AR75601)
3.	R32507	[1]	Snap Ring
4.	AU11654	[1]	Fitting
5.	R28593	[1]	Retainer	(USE WITH R394R ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2471R)
5.	R65892	[1]	Retainer	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
6.	R394R	[1]	O-Ring	(USE WITH R65892 RETAINER)
6.	F2741R	[1]	Packing	(USE WITH R65892 RETAINER)
7.	24H1227	[1]	Washer	17/32" X 13/16" X 0.060"
8.	R66064	[1]	Spring	(SUB FOR R1769R)
9.	R63093	[1]	Cover	(SUB FOR R39798 AND R51654, THIS APPLICATION)
10.	R82731	[1]	Screw	(SUB FOR R54753)
11.	AP23222	[1]	Elbow Fitting	90°
12.	U12547	[2]	O-Ring
13.	R27175	[1]	Drain Plug	(WITHOUT BACKHOE)
14.	U12547	[1]	O-Ring	(SUB FOR F3171R) (WITHOUT BACKHOE)
15.	19H2633	[2]	Cap Screw	3/8" X 1-1/2"
16.	12H304	[2]	Lock Washer	3/8"
17.	R26906	[1]	O-Ring
18.	T27992	[1]	Spring
19.	R57559	[1]	Valve	(ALSO ORDER R33259) (SUB FOR R33162)
20.	AT26172	[1]	Plug	(NO LONGER AVAILABLE, ORDER R27474 AND T22850)
21.	R40976	[1]	Valve
22.	R30776	[1]	Spring
23.	U12547	[4]	O-Ring	(SUB FOR (4) F3171R)
24.	AT26171	[1]	Plug
25.	AT27078	[1]	Housing	(MARKED T27991)
26.	R27175	[1]	Drain Plug
27.	A4808R	[1]	Washer
28.	........	[1]	Fitting	( T33035 USE IF AVAILABLE)
29.	AT21574	[2]	Fitting	90° ADJUSTABLE
30.	R33259	[1]	O-Ring
31.	R394R	[1]	O-Ring
