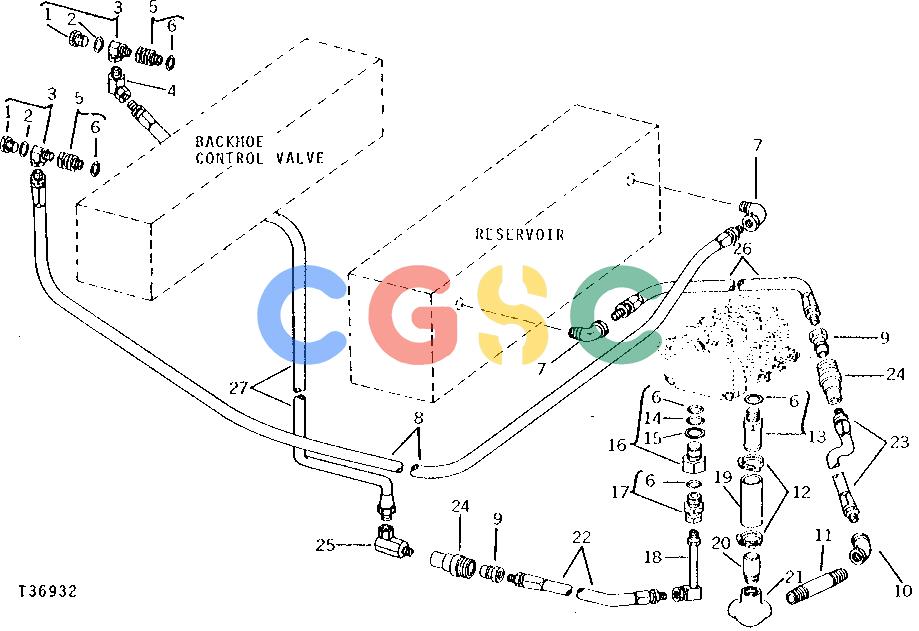

约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (SERIAL NO. -016385) [C17EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (SERIAL NO. -016385) [C17EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 930 次

Pos.	Part No	Qty	Parts name	Comments
1.	U13982	[2]	Fitting
2.	U12547	[2]	O-Ring
3.	AT33316	[2]	Adapter	90°
4.	U11754	[1]	Elbow Fitting	45°
5.	AU13375	[2]	Fitting	(SUB FOR AT33315)
6.	R29936	[5]	O-Ring
7.	15H213	[2]	Elbow Fitting	1", 90°
8.	AT33318	[1]	Hydraulic Hose - Fabricate	.914.4 MM (1" X 36")
9.	AT33968	[1]	Fitting	(SUB 15H616, 15H589, AT72911 AND (2) AT33970)
9.	AT33970	[2]	HYD. INTERNAL HALF COUPLER	(A)
10.	15H618	[1]	Elbow Fitting	(A) 1", 90°
11.	29H346	[1]	Threaded Nipple	(A) 1" X 11"
12.	AR21839	[2]	Clamp
13.	AU14063	[1]	Hose Fitting
14.	U15242	[1]	O-Ring
15.	U43313	[1]	Back-Up Ring
16.	AT63185	[1]	Plug	(A) (SUB FOR AT32456, THIS APPLICATION)
17.	AU13375	[1]	Fitting	(A)
18.	AT33615	[1]	Line	(A)
19.	L2033CU	[1]	Hydraulic Hose
20.	29H747	[1]	Threaded Nipple	1" X 3", (SUB FOR U17026)
21.	U17033	[1]	Elbow Fitting
22.	AU42577	[1]	Hydraulic Hose	(A) 1270 MM (1" X 50") 90°, (SUB AT36891 AND AU41178)
23.	AT33319	[1]	Hose	(A) 762 MM (1" X 30") (SUB AT36891 AND AU41178, THIS APPLICATION)
24.	AT39581	[2]	HYD. EXTERNAL HALF COUPLER	(A) (SUB FOR AT33967)
25.	AR29459	[4]	Union Fitting	(A) 90°
26.	AT36891	[1]	Hydraulic Hose - Fabricate	584.2 MM (1" X 23")
27.	AT33319	[1]	Hose	(A) 762 MM (1" X 30")
...	AT33972	[1]	Kit	HYDRAULICS, SECONDARY WITH QUICK DISCONNECT COUPLER, (SUB AT63406)
