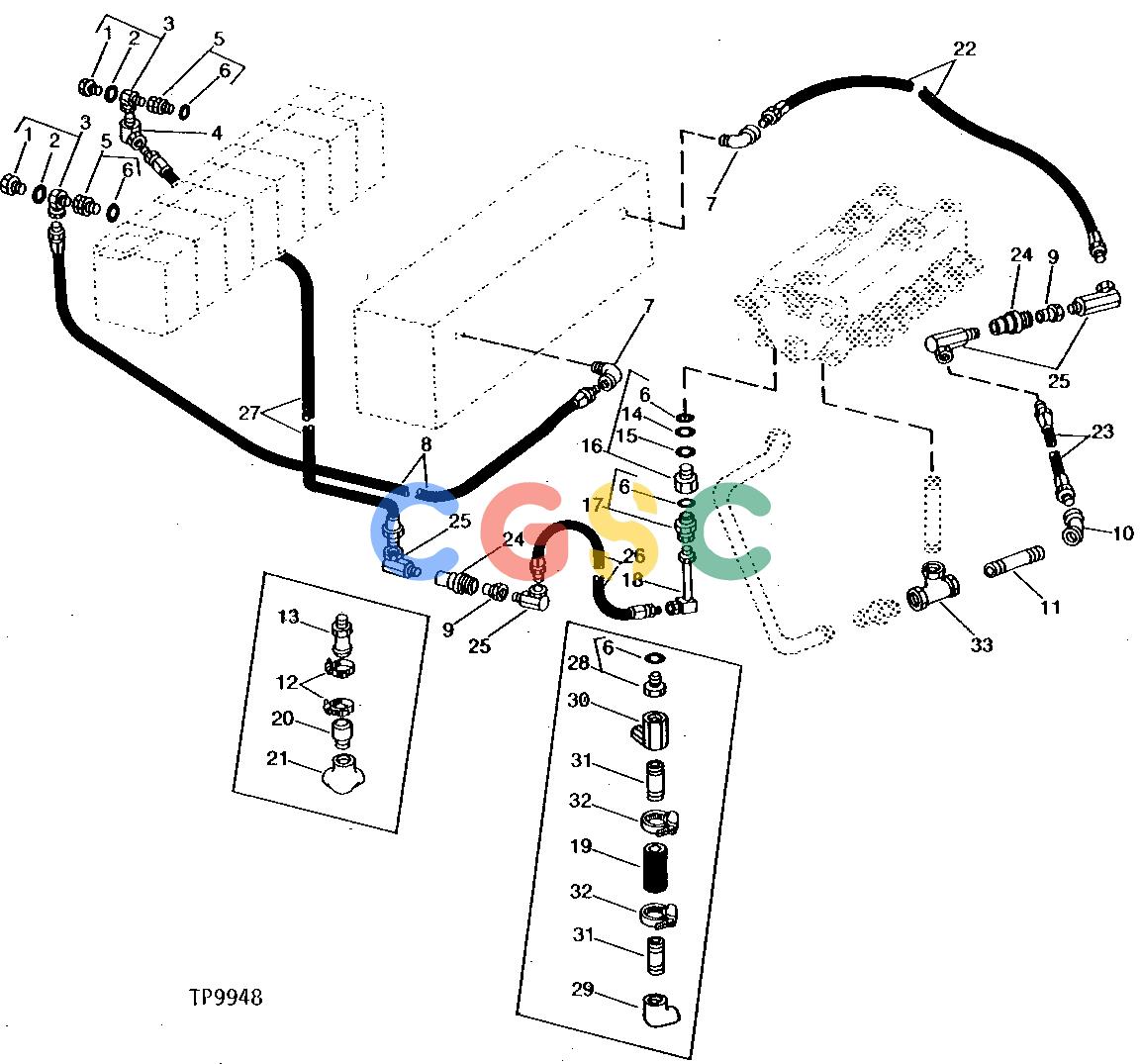

约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (WITHOUT STEEL TUBES) (SERIAL NEPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-LOADER CONTROL VALVE TO BACKHOE CONTROL VALVE (WITHOUT STEEL TUBES) (SERIAL NEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 752 次

Pos.	Part No	Qty	Parts name	Comments
1.	U13982	[2]	Fitting
2.	U12547	[2]	O-Ring
3.	AT33316	[2]	Adapter	90°
4.	U11754	[1]	Elbow Fitting	45°
5.	AU13375	[2]	Fitting	(A) (TO CONTROL VALVE)
6.	R29936	[5]	O-Ring
7.	15H213	[2]	Elbow Fitting	1", 90° (TO RESERVOIR)
8.	AT33318	[1]	Hydraulic Hose - Fabricate	1" X 914 MM (36") X 1"
9.	AT33970	[2]	HYD. INTERNAL HALF COUPLER	(A)
10.	15H618	[1]	Elbow Fitting	(A) 1", 90°
11.	29H346	[1]	Threaded Nipple	(A) 1" X 11"
12.	AR21839	[2]	Clamp	(USE WITHOUT SPIN-ON FILTER)
13.	AU14063	[1]	Hose Fitting	(USE WITHOUT SPIN-ON FILTER)
14.	U15242	[1]	O-Ring
15.	U43313	[1]	Back-Up Ring
16.	AT63185	[1]	Plug	(A) (SUB FOR AT32456, THIS APPLICATION)
17.	AU13375	[1]	Fitting
18.	AT33615	[1]	Line	(A)
19.	L2033CU	[1]	Hydraulic Hose
20.	29H747	[1]	Threaded Nipple	1" X 3" (USE WITHOUT SPIN-ON FILTER) (SUB FOR U17026)
21.	U17033	[1]	Elbow Fitting	90° (USE WITHOUT SPIN-ON FILTER)
22.	AT40853	[1]	Hydraulic Hose	1" X 457 MM (18") X 1", (SUB AT62493)
22.	AT62493	[1]	Hydraulic Hose - Fabricate	1" X 457 MM (18") X 1"
23.	AT36891	[1]	Hydraulic Hose - Fabricate	(A) 1" X 584 MM (23") X 1"
24.	AT39581	[2]	HYD. EXTERNAL HALF COUPLER	(A)
25.	AR29459	[4]	Union Fitting	(A) 90°
26.	AU41178	[1]	Hydraulic Hose - Fabricate	(A) 1" X 1 168 MM (46") X 1"
27.	AT40854	[1]	Hydraulic Hose - Fabricate
28.	AU13375	[1]	Fitting	(A) 1" X 1-5/16" (USE WITH SPIN-ON FILTER)
29.	........	[1]	Elbow Fitting	(A) 1" (USE WITH SPIN-ON FILTER) ( 15H100 - NO LONGER AVAILABLE)
30.	AT65819	[1]	Fitting	(USE WITH SPIN-ON FILTER)
31.	29H573	[2]	Threaded Nipple	(A) 1" X 1-1/2" (USE WITH SPIN-ON FILTER)
32.	AR21999	[2]	Hose Clamp	(A) (SUB FOR AR21840) (USE WITH SPIN-ON FILTER)
33.	15H535	[1]	Tee Fitting	1"
...	AT40855	[1]	Mounting Parts	(USE WITHOUT SPIN-ON FILTER) (SUB AT63406)
...	........	[1]	Mounting Parts	(USE WITH SPIN-ON FILTER) ( AT63406 - NO LONGER AVAILABLE)
