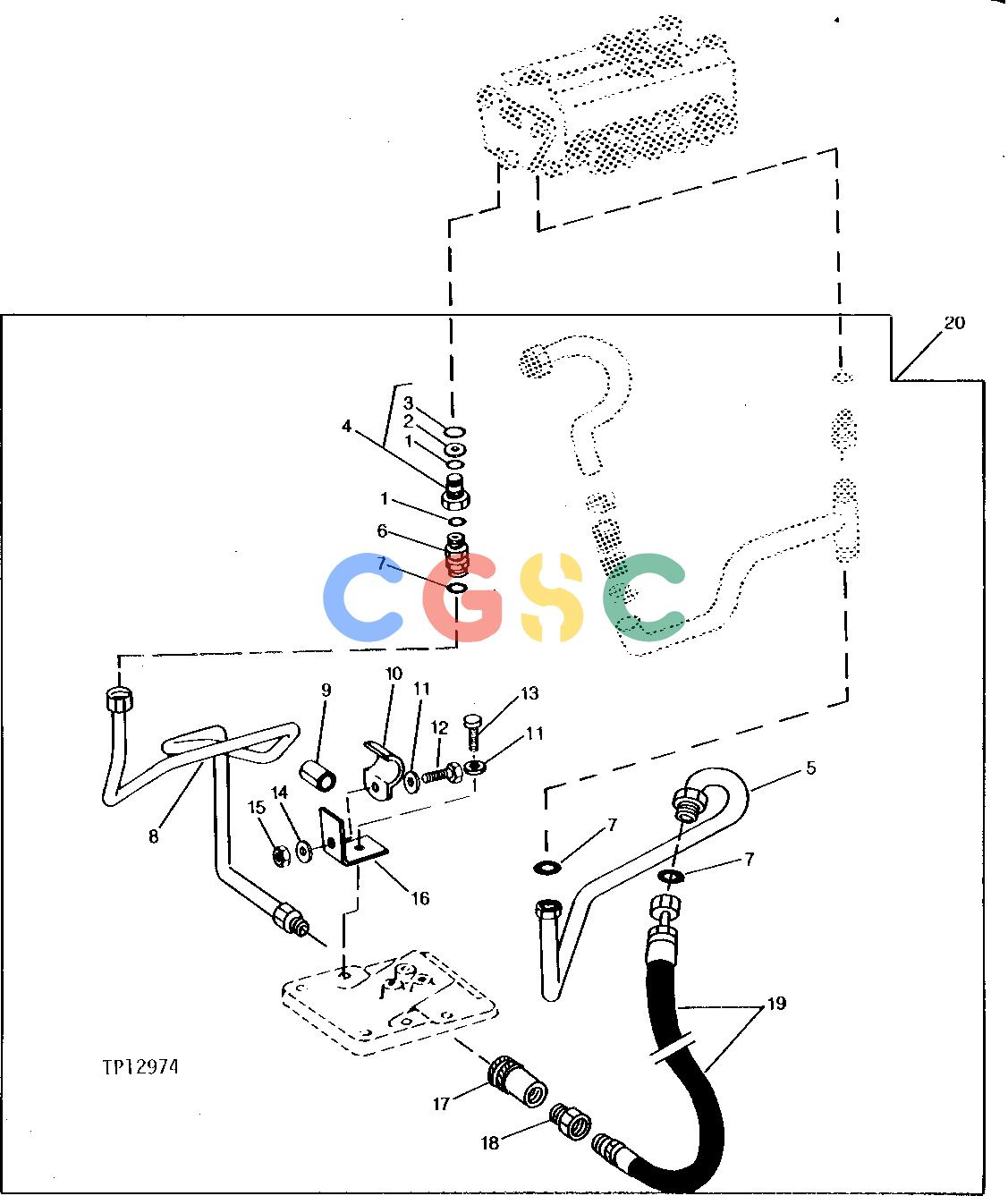

约翰迪尔零件查询9300 - BACKHOE CONTROL VALVE OIL LINES AND FITTINGS-QUICK-COUPLERS TO BACKHOE (SERIAL NO. 716591- ) [C22]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
297 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R29936
|
[2] |
O-Ring
|
|
| 2. |
U15242
|
[1] |
O-Ring
|
|
| 3. |
U43313
|
[1] |
Back-Up Ring
|
|
| 4. |
AT63185
|
[1] |
Plug
|
|
| 5. |
AT81571
|
[1] |
Oil Line
|
|
| 6. |
38H1164
|
[1] |
Adapter
|
|
| 7. |
T76938
|
[3] |
O-Ring
|
|
| 8. |
AT81572
|
[1] |
Oil Line
|
|
| 9. |
T37808
|
[2] |
Isolator
|
|
| 10. |
U15939
|
[2] |
Clamp
|
|
| 11. |
24H1305
|
[4] |
Washer
|
|
| 12. |
19H2676
|
[2] |
Cap Screw
|
|
| 13. |
19H3031
|
[2] |
Cap Screw
|
|
| 14. |
12H304
|
[2] |
Lock Washer
|
|
| 15. |
14H1076
|
[2] |
Nut
|
|
| 16. |
T56801
|
[2] |
Angle
|
|
| 17. |
AT39581
|
[1] |
HYD. EXTERNAL HALF COUPLER
|
|
| 18. |
AT33970
|
[1] |
HYD. INTERNAL HALF COUPLER
|
|
| 19. |
AT81866
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 20. |
........
|
[1] |
Kit
|
|
