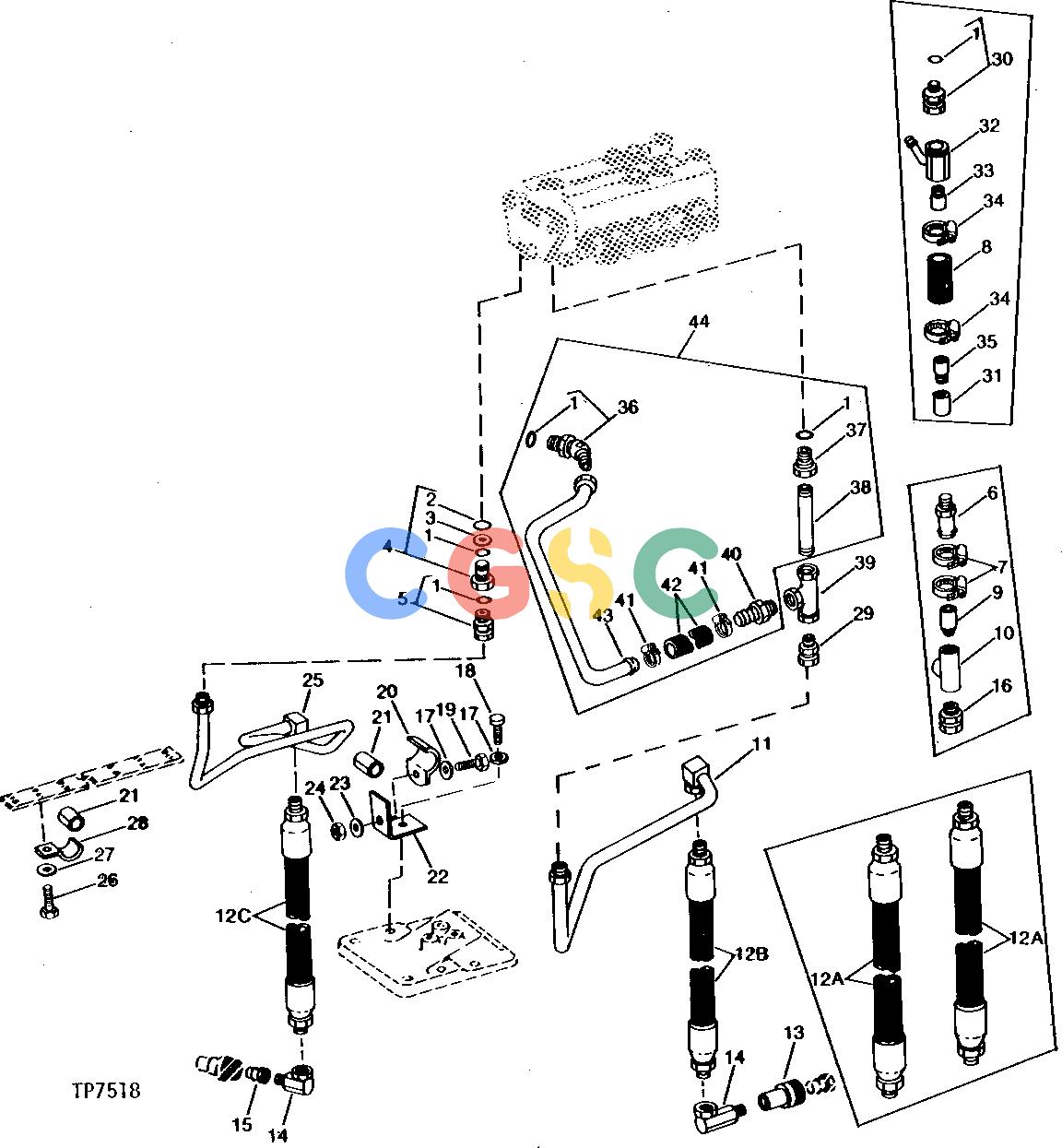

约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-QUICK COUPLERS TO LOADER CONTROL VALVE (WITH STEEL TUBES) (SERIAL NO. -EPC John Deere online_约翰迪尔John Deere_工程机械

约翰迪尔零件查询9300 - BACKHOE OIL LINES AND FITTINGS-QUICK COUPLERS TO LOADER CONTROL VALVE (WITH STEEL TUBES) (SERIAL NO. -EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 880 次

Pos.	Part No	Qty	Parts name	Comments
1.	R29936	[3]	O-Ring
2.	U15242	[1]	O-Ring
3.	U43313	[1]	Back-Up Ring
4.	AT63185	[1]	Plug	(A) (SUB FOR AT32456, THIS APPLICATION)
5.	AU13375	[1]	Fitting	(A)
6.	AU14063	[1]	Hose Fitting	(USE WITHOUT SPIN-ON FILTER)
7.	AR21839	[2]	Clamp	(USE WITHOUT SPIN-ON FILTER)
8.	L2033CU	[1]	Hydraulic Hose
9.	29H747	[1]	Threaded Nipple	1" X 3" (USE WITHOUT SPIN-ON FILTER) (SUB FOR U17026)
10.	15H535	[1]	Tee Fitting	1"
11.	AT54688	[1]	Tube	(A)
12A.	AT54689	[2]	Hydraulic Hose	(A) 1" X 343 MM (13-1/2") X 1", (SUB AT62494 AND AT62493)
12B.	AT62493	[1]	Hydraulic Hose - Fabricate	1" X 457 MM (18") X 1"
12C.	AT62494	[1]	Hydraulic Hose - Fabricate	1" X 457 MM (18") X 1"
13.	AT39581	[1]	HYD. EXTERNAL HALF COUPLER	(A)
14.	AR29459	[2]	Union Fitting	(A) 90°
15.	AT33970	[1]	HYD. INTERNAL HALF COUPLER	(A)
16.	JD150	[1]	Union Fitting	(A) (USE WITHOUT SPIN-ON FILTER)
17.	24H1305	[4]	Washer	(A) 13/32" X 13/16" X 0.065"
18.	19H3031	[2]	Cap Screw	(A) 3/8" X 2-1/2"
19.	19H2676	[2]	Cap Screw	(A) 3/8" X 1"
20.	U15939	[2]	Clamp	(A) (SUB FOR U13667)
21.	T37808	[3]	Isolator	(A)
22.	T56801	[2]	Angle	(A)
23.	12H304	[2]	Lock Washer	(A) 3/8"
24.	14H812	[2]	Nut	(A) 3/8"
25.	AT54690	[1]	Tube	(A)
26.	19H2993	[1]	Cap Screw	(A) 1/2" X 1-1/2"
27.	24H1111	[1]	Washer	(A) 17/32" X 1-1/16" X 0.090"
28.	U15977	[1]	Hose Clamp	(A)
29.	JD150	[1]	Union Fitting
30.	AU13375	[1]	Fitting	(A) 1" X 1-5/16" (USE WITH SPIN-ON FILTER)
31.	15H620	[1]	Pipe Plug	(A) 1" (USE WITH SPIN ON FILTER)
32.	AT65819	[1]	Fitting	(A) (USE WITH SPIN-ON FILTER)
33.	29H573	[1]	Threaded Nipple	(A) 1" X 1-1/2" (USE WITH SPIN-ON FILTER)
34.	AR21999	[2]	Hose Clamp	(A) (SUB FOR AR21840) (USE WITH SPIN-ON FILTER)
35.	29H747	[1]	Threaded Nipple	(A) 1" X 3"
36.	AU43288	[1]	Elbow Fitting	(A) 45°
37.	AE35246	[1]	Adapter
38.	T75432	[1]	Threaded Nipple	170 MM LONG (1" X 6-5/8")
39.	15H535	[1]	Tee Fitting
40.	N150084	[1]	Hose Fitting	HOSE
41.	AR21839	[1]	Clamp
42.	........	[1]	Hydraulic Hose	137 MM LONG (1" X 5-3/8") (MAKE FROM U11186) (SUB FOR T37797)
43.	AT73389	[1]	Oil Tube
44.	AT73390	[1]	Mounting Parts	(AT73390 NO LONGER AVAILABLE)
...	AT54687	[1]	Kit	(USE WITHOUT SPIN-ON FILTER) (SUB AT63413) (AT63413 NO LONGER AVAILABLE)
...	AT63413	[1]	Kit	(USE WITH SPIN-ON FILTER) (AT63413 NO LONGER AVAILABLE)
