约翰迪尔零件查询9300 - BACKHOE SWING CYLINDER [D17]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 592 次

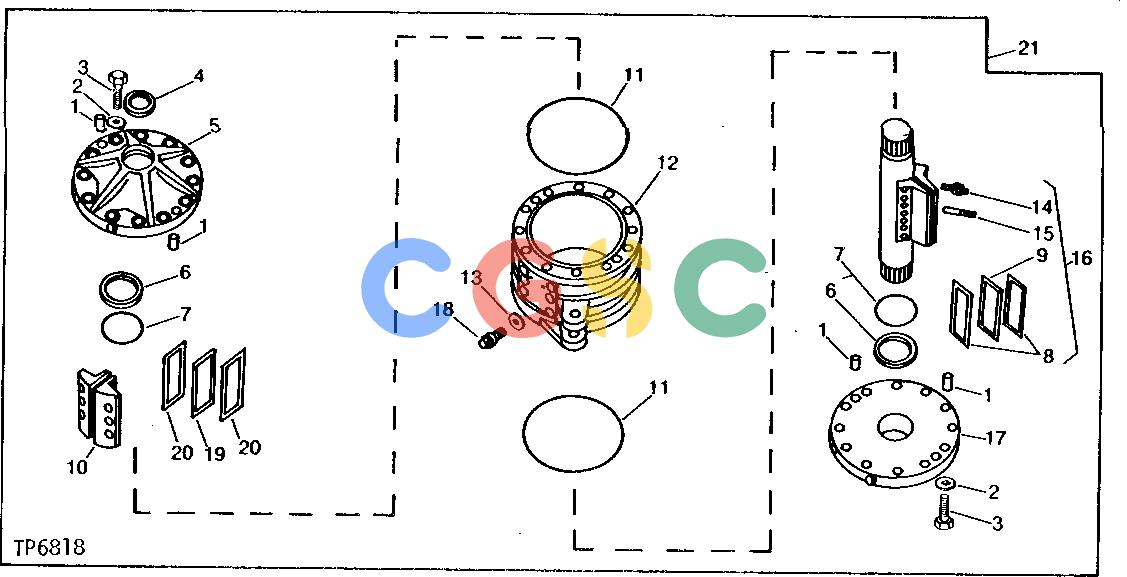

Pos.	Part No	Qty	Parts name	Comments
1.	U16334	[4]	Dowel Pin
2.	R78019	[24]	Washer	(SUB FOR T21397)
3.	19H3158	[24]	Cap Screw	HS, SAE 8, 3/4" X 2", (USE WITH U41094)
3.	19H3158	[4]	Cap Screw	HS, SAE 8, 3/4" X 2", (USE WITH R78440)
3.	19H2406	[20]	Cap Screw	HS, SAE 8, 3/4" X 3-3/4", (USE WITH R78440)
4.	T34330	[1]	Bushing	(A)
5.	R70412	[1]	Plate	(SUB FOR U41096 AND T50783)
6.	U41101	[2]	Back-Up Ring	(A)
7.	F950R	[2]	O-Ring	(A)
8.	........	[2]	Packing	(A) ( U41340 USE IF AVAILABLE)
9.	........	[1]	Seal	(A) ( U41104 USE IF AVAILABLE)
10.	U41092	[1]	Vane
11.	U10624	[2]	O-Ring	(A)
12.	R78440	[1]	Hydraulic Cylinder Barrel	(SUB FOR U41094) (ALSO ORDER (4) U16334 AND (20) 19H2406)
13.	U41562	[6]	Washer	(A)
14.	R78450	[6]	Screw	(SUB FOR R70141)
15.	R69970	[8]	Stud	(SUB FOR U12071)
16.	AU40710	[1]	Stator
17.	U41095	[1]	Plate	BOTTOM
18.	R78450	[6]	Screw	(SUB FOR U41561, THIS APPLICATION) (SUB FOR R70141)
19.	........	[1]	Seal	(A) ( U41104 USE IF AVAILABLE)
20.	........	[2]	Packing	(A) ( U41340 USE IF AVAILABLE)
21.	AR92369	[1]	Cylinder	(SUB FOR AU40708 AND AT49349)
...	AU40976	[1]	Kit	REPAIR SWING CYLINDER
