约翰迪尔零件查询9400 - BACKHOE SWING FRAME [A12]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 891 次

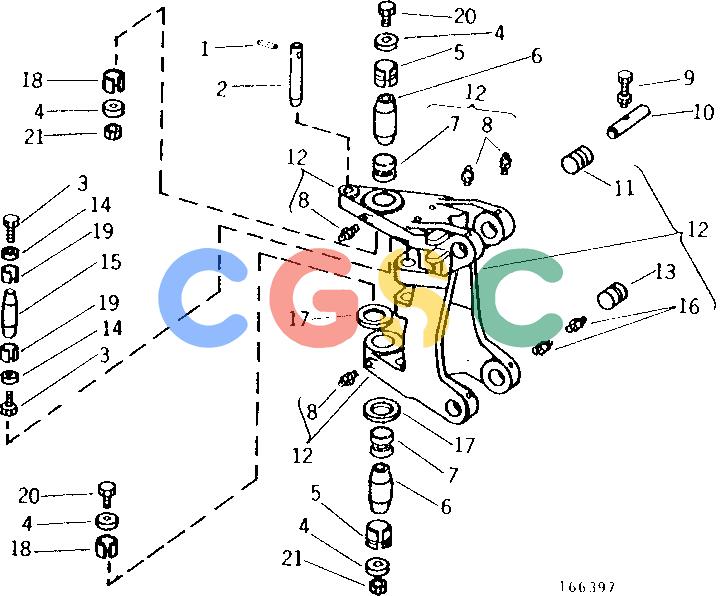

Pos.	Part No	Qty	Parts name	Comments
1.	A3581R	[1]	Spring Locking Pin	(SUB FOR 34H321)
2.	T68041	[1]	Pin Fastener	(SUB FOR U41722)
3.	19H1768	[AR]	Cap Screw	3/4" X 2", (8 USED WITH U45706 PIN)
3.	19H1768	[AR]	Cap Screw	3/4" X 2", (4 USED WITH U43443 PIN)
4.	T35565	[4]	Spacer	(SUB FOR U43442)
5.	U43435	[2]	Tapered Sleeve	OUTER
6.	U45706	[2]	Pin Fastener	PIVOT, (SUB FOR U43440)
6.	T35016	[2]	Pin	PIVOT
7.	U41086	[2]	Bushing
8.	JD7797	[4]	Lubrication Fitting	STRAIGHT, 1/4"
9.	19H3544	[1]	Cap Screw	1/2" X 4-1/2"
9.	K40014	[1]	Lock Nut	(SUB FOR U12622 AND BP12214)
10.	U16051	[1]	Pin
11.	U16070	[2]	Bushing
12.	AT58694	[1]	Frame	(WITH BUSHINGS) (SUB FOR AU42269)
13.	U10618	[2]	Bushing	(USED WITH AU42269)
13.	T126936	[2]	Bushing	(USE WITH AT58694) (SUB FOR T47070)
14.	U43444	[4]	Bushing
15.	U43443	[2]	Pin
16.	JD7788	[2]	Lubrication Fitting	1/4", 45°
17.	T67205	[2]	Thrust Washer	(SUB FOR U41077)
18.	T34188	[2]	Sleeve	INNER, (SUB FOR U43441)
19.	U43182	[4]	Tapered Sleeve
20.	08H4308	[AR]	Cap Screw	HS, SAE 8, 3/4" X 8" (2 USED WHEN T35016 HAS BEEN INSTALLED)
21.	14H858	[AR]	Nut	3/4", HS, SAE 8, 3/4" (2 USED WHEN T35016 HAS BEEN INSTALLED)
