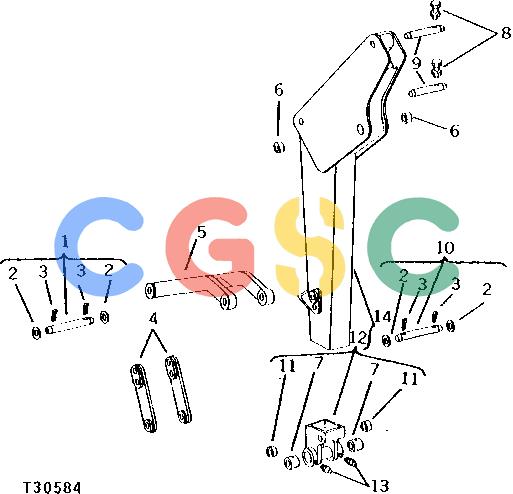

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AU13556 | [1] | Pin Fastener | CONTROL LINK TO CYLINDER |
| 2. | U11649 | [4] | Washer | |
| 3. | 11H221 | [4] | Cotter Pin | 3/8" X 2-1/2" |
| 4. | U16167 | [2] | Link | COUPLER |
| 5. | U42813 | [1] | Link | DRIVE, ONE-PIECE |
| 6. | T25875 | [2] | Bushing | (SUB FOR U41602) |
| 7. | U16017 | [2] | Bushing | (SUB FOR U41599) |
| 8. | 19H1781 | [2] | Cap Screw | HS, SAE 8, 1/2" X 3-1/2" |
| 8. | K40014 | [2] | Lock Nut | (SUB FOR U12622 AND BP12214) |
| 9. | U15822 | [AR] | Pin | (ONE USED WITH BUCKET CYLINDER; TWO USED WITH CROWD CYLINDER) |
| 10. | AU13558 | [1] | Pin Fastener | CONTROL LINK TO DIPPERSTICK |
| 11. | U11121 | [2] | Bushing | |
| 12. | AU43181 | [1] | Pivot | BUSHING TO DIPPERSTICK |
| 13. | JD7759 | [2] | Lubrication Fitting | STRAIGHT, 1/8" |
| 14. | AU43182 | [1] | Dipperstick | (INCLUDES BUSHINGS) |
