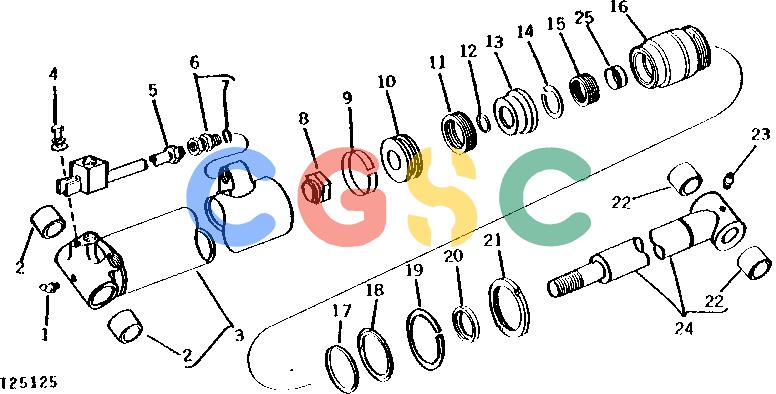

Pos.	Part No	Qty	Parts name	Comments
1.	JD7788	[1]	Lubrication Fitting	45°, 1/4"
2.	U10745	[2]	Bushing
3.	AU41199	[1]	Hydraulic Cylinder Barrel	WITH BUSHING
4.	19H3239	[1]	Cap Screw	HS, SAE 8, 3/8" X 1-1/4"
4.	12H302	[1]	Lock Washer	1/4"
4.	24H1305	[1]	Washer	13/32" X 13/16" X 0.065"
5.	AU12285	[1]	Tube	RETURN
6.	AU11753	[1]	Union Fitting	STRAIGHT
7.	R26906	[1]	O-Ring	(A)
8.	L2235CU	[1]	Lock Nut
9.	U17337	[1]	Wear Ring	(A)
10.	U17334	[1]	Piston
11.	T37381	[1]	Packing	(A) (SUB FOR U12968, THIS APPLICATION) (SUB FOR R72830)
12.	R29463	[1]	O-Ring	(A)
13.	U17347	[1]	Piston
14.	N10193	[1]	Snap Ring
15.	R76801	[1]	Packing	(A) (SUB FOR T35850)
16.	U41579	[1]	Hydr. Cylinder Rod Guide	(ALSO ORDER U41578) (SUB FOR AU41443)
17.	L2301CU	[1]	O-Ring	(A)
18.	L2309CU	[1]	Back-Up Ring	(A)
19.	U41821	[1]	Snap Ring
20.	L2029CU	[1]	Seal	(A)
21.	U12103	[1]	Nut
22.	U11121	[2]	Bushing
23.	JD7769	[1]	Lubrication Fitting	STRAIGHT, 1/4"
24.	AU12287	[1]	Rod
25.	U41578	[1]	Wear Ring	(A)
...	AU14244	[1]	Piston-Liner Kit	(CONSISTS OF U17334 AND U17347)
...	AU41202	[1]	Cylinder	(C) (INCLUDES AU12285 AND AU11753)
...	AR105387	[1]	Hydraulic Cylinder Kit	(SUB FOR AU41408, AT35938, AT36834 AND AR96530)
...	BU40274	[1]	Cylinder	BUCKET AND CROWD (NO LONGER AVAILABLE)
