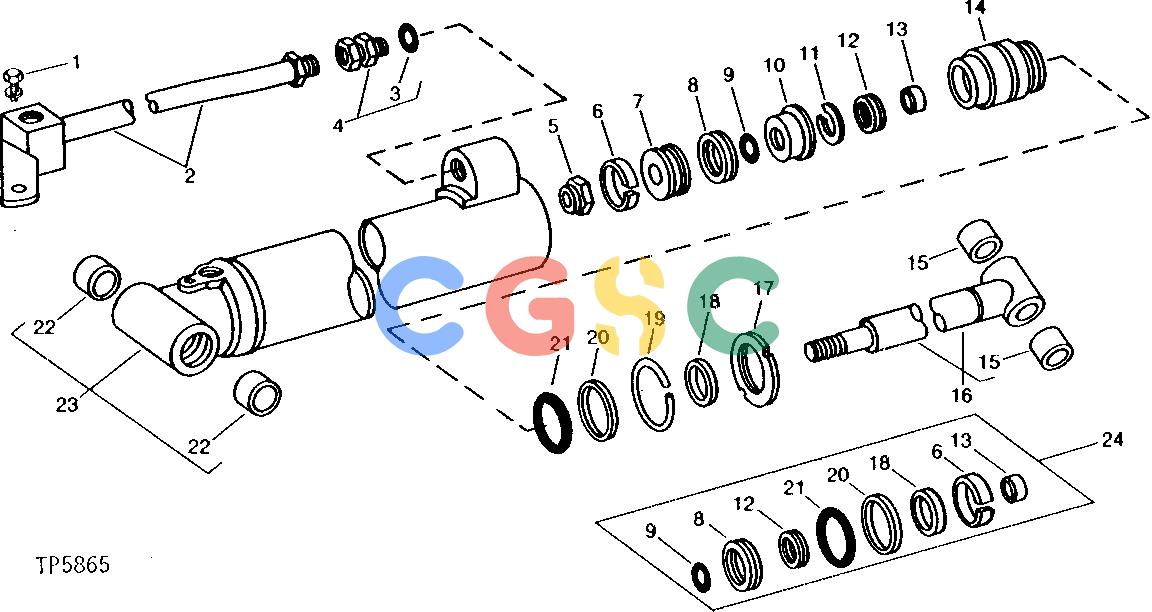

约翰迪尔零件查询9400 - BACKHOE BOOM CYLINDER [C01]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
616 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19H2676
|
[1] |
Cap Screw
|
|
| 1. |
12H304
|
[1] |
Lock Washer
|
|
| 2. |
AU14047
|
[1] |
Tube
|
|
| 3. |
R26906
|
[1] |
O-Ring
|
|
| 4. |
AU11753
|
[1] |
Union Fitting
|
|
| 5. |
U10750
|
[1] |
Lock Nut
|
|
| 6. |
U17225
|
[1] |
Wear Ring
|
|
| 7. |
U17348
|
[1] |
Piston
|
|
| 8. |
T37379
|
[1] |
Packing
|
|
| 9. |
U10289
|
[1] |
O-Ring
|
|
| 10. |
U17346
|
[1] |
Piston
|
|
| 11. |
W11229
|
[1] |
Ring
|
|
| 12. |
R76790
|
[1] |
Packing
|
|
| 13. |
U41822
|
[1] |
Wear Ring
|
|
| 14. |
U41895
|
[1] |
Drawer Slide
|
|
| 15. |
U14111
|
[2] |
Bushing
|
|
| 16. |
AU13649
|
[1] |
Rod
|
|
| 17. |
U12368
|
[1] |
Nut
|
|
| 18. |
U11022
|
[1] |
Seal
|
|
| 19. |
U12363
|
[1] |
Snap Ring
|
|
| 20. |
U10748
|
[1] |
Back-Up Ring
|
|
| 21. |
U10746
|
[1] |
O-Ring
|
|
| 22. |
U10688
|
[2] |
Bushing
|
|
| 23. |
AU14050
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 24. |
RE10640
|
[1] |
Hydraulic Cylinder Kit
|
|
| ... |
AU14048
|
[1] |
Hydraulic Cylinder
|
|
