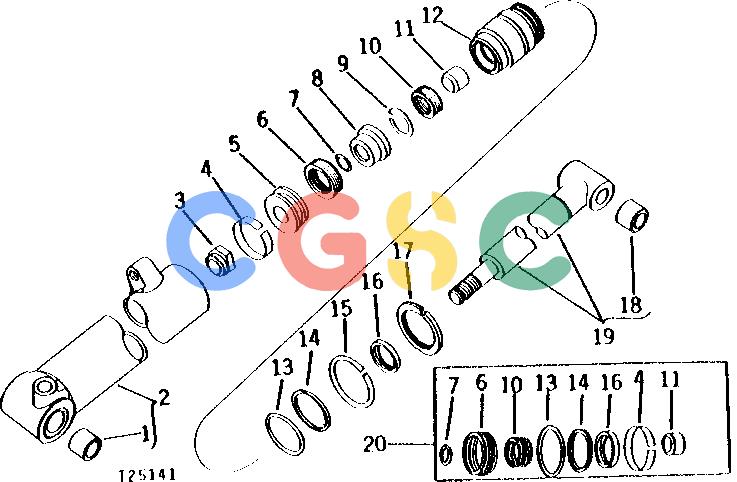

约翰迪尔零件查询9500 - BACKHOE STABILIZER CYLINDER [C07]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
732 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
U11013
|
[2] |
Bushing
|
|
| 2. |
AU13454
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 3. |
P45231
|
[1] |
Lock Nut
|
|
| 4. |
T40416
|
[1] |
Wear Ring
|
|
| 5. |
U17299
|
[1] |
Piston
|
|
| 6. |
T38194
|
[1] |
Packing
|
|
| 7. |
R495R
|
[1] |
O-Ring
|
|
| 8. |
U17300
|
[1] |
Piston
|
|
| 9. |
U14128
|
[1] |
Snap Ring
|
|
| 10. |
R76802
|
[1] |
Seal
|
|
| 11. |
U41823
|
[1] |
Wear Ring
|
|
| 12. |
U41958
|
[1] |
Guide
|
|
| 13. |
R86192
|
[1] |
O-Ring
|
|
| 14. |
R78823
|
[1] |
Back-Up Ring
|
|
| 15. |
U10136
|
[1] |
Snap Ring
|
|
| 16. |
U16406
|
[1] |
Seal
|
|
| 17. |
U10139
|
[1] |
Nut
|
|
| 18. |
U15925
|
[2] |
Bushing
|
|
| 19. |
AU13617
|
[1] |
Rod
|
|
| 20. |
RE18751
|
[1] |
Hydraulic Cylinder Kit
|
|
| ... |
AU13455
|
[2] |
Hydraulic Cylinder
|
|
| ... |
AU14246
|
[1] |
Piston-Liner Kit
|
|
