约翰迪尔零件查询9500 - BACKHOE BOOM CYLINDER [C08]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 209 次

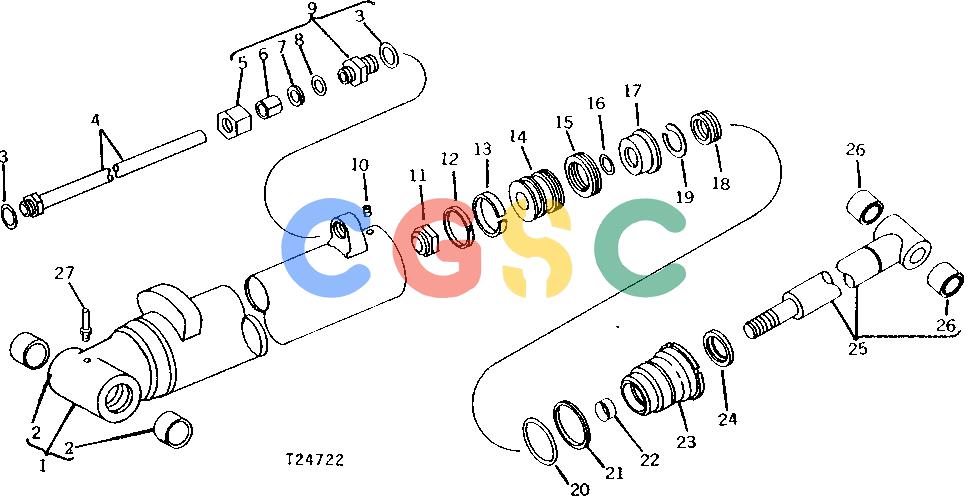

Pos.	Part No	Qty	Parts name	Comments
1.	AT32998	[1]	Hydraulic Cylinder Barrel	(SUB AR90448, AU13294 AND JD184)
2.	U10688	[2]	Bushing
3.	R26906	[2]	O-Ring
4.	AT33002	[1]	Line	RETURN
5.	U42975	[1]	Fitting
6.	U42976	[1]	Sleeve
7.	U42978	[1]	Back-Up Ring
8.	R394R	[1]	O-Ring
9.	AU42560	[1]	Fitting
10.	22H842	[1]	Set Screw	1/4" X 5/16"
11.	U10750	[1]	Lock Nut
12.	U45231	[1]	Piston Ring
13.	U17225	[1]	Wear Ring	(A) PISTON RETAINER
14.	T33663	[1]	Piston
15.	T37379	[1]	Packing	(A) (SUB FOR U12974, THIS APPLICATION) (SUB FOR R72828)
16.	U10289	[1]	O-Ring	(A)
17.	U17346	[1]	Piston
18.	R76790	[1]	Packing	(A) (SUB FOR T35851)
19.	W11229	[1]	Ring
20.	U10746	[1]	O-Ring	(A)
20.	P46765	[1]	O-Ring	(A)
21.	U10748	[1]	Back-Up Ring	(A)
21.	R79001	[1]	Back-Up Ring	(A) (SUB FOR T42552, THIS APPLICATION)
22.	U42716	[1]	Wear Ring	(A)
23.	U43378	[1]	Guide	(SUB P46765, R79001 AND R80944)
23.	R80944	[1]	Guide	(SUB FOR T57009)
24.	U11022	[1]	Seal	(A)
25.	AT33000	[1]	Rod
26.	U14111	[2]	Bushing
27.	JD7782	[1]	Lubrication Fitting	STRAIGHT, 1/8"
...	AT32997	[1]	Cylinder	(SUB AR90447, AU13294 AND JD184)
...	AR105355	[1]	Hydraulic Cylinder Kit	(SUB FOR AT35936, AT36832, AT55691 AND AR99791)
