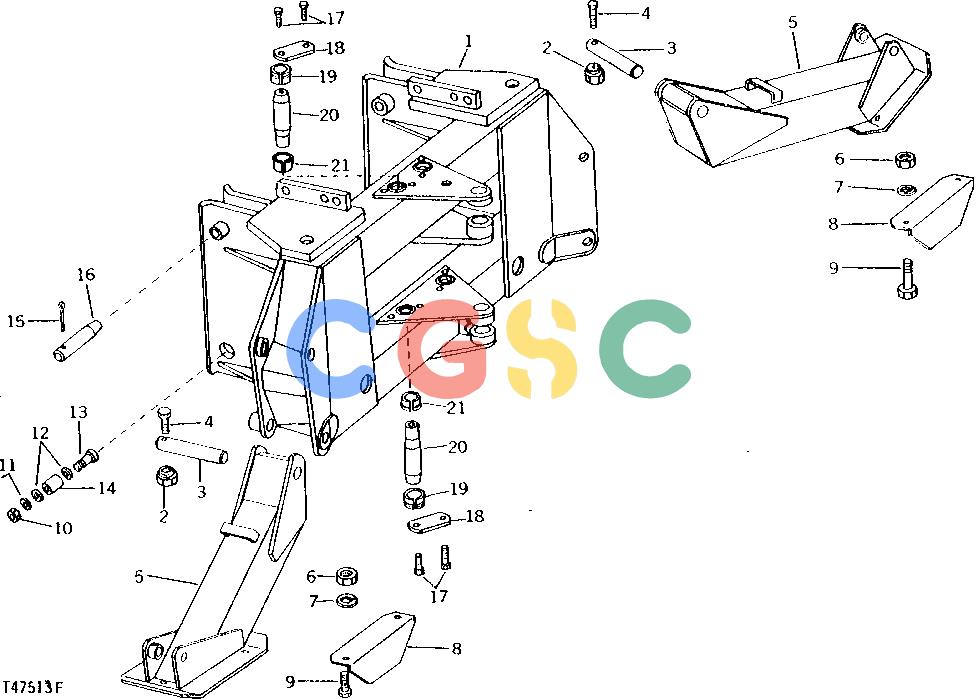

约翰迪尔零件查询9550 - BACKHOE MAIN FRAME AND STABILIZER [A10]EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT46844
|
[1] |
Frame
|
|
| 2. |
K40014
|
[2] |
Lock Nut
|
|
| 3. |
U40359
|
[2] |
Pin
|
|
| 4. |
19H3520
|
[2] |
Cap Screw
|
|
| 5. |
AU40390
|
[2] |
Stabilizer
|
|
| 6. |
14H1039
|
[4] |
Nut
|
|
| 7. |
12H294
|
[4] |
Lock Washer
|
|
| 8. |
T81868
|
[2] |
Angle
|
|
| 9. |
19H1708
|
[4] |
Cap Screw
|
|
| 10. |
14H794
|
[2] |
Nut
|
|
| 11. |
12H236
|
[2] |
Lock Washer
|
|
| 12. |
24H1236
|
[4] |
Washer
|
|
| 13. |
19H3196
|
[2] |
Cap Screw
|
|
| 14. |
U16401
|
[2] |
Bushing
|
|
| 15. |
11H277
|
[2] |
Cotter Pin
|
|
| 16. |
U16055
|
[2] |
Pin
|
|
| 17. |
19H2599
|
[8] |
Cap Screw
|
|
| 18. |
U43436
|
[4] |
Strap
|
|
| 19. |
U43435
|
[4] |
Tapered Sleeve
|
|
| 20. |
U43433
|
[4] |
Pin
|
|
| 21. |
T55322
|
[4] |
Tapered Sleeve
|
|
