约翰迪尔零件查询9550 - BACKHOE BOOM AND DIPPERSTICK [A17]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 463 次

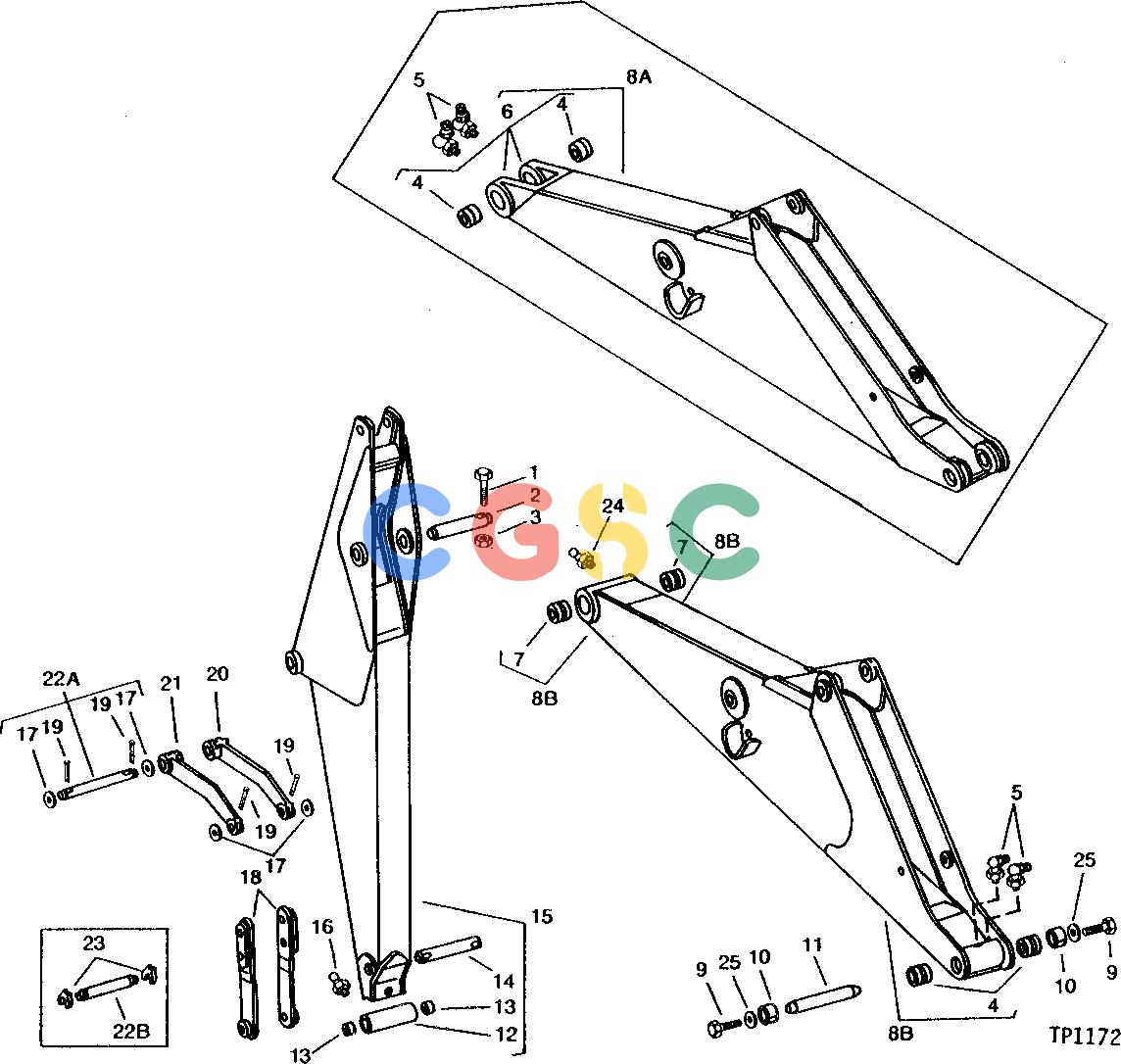

Pos.	Part No	Qty	Parts name	Comments
1.	19H2718	[1]	Cap Screw	5/8" X 4-3/4"
2.	T44275	[1]	Pin	BOOM TO DIPPERSTICK
3.	U14555	[1]	Lock Nut
4.	U43163	[4]	Bushing	(USE WITH AT52068)
4.	U43163	[2]	Bushing	(USE WITH AT65204)
5.	JD7806	[4]	Lubrication Fitting	90°, 1/4", (USE WITH AT52068)
5.	JD7806	[2]	Lubrication Fitting	90°, 1/4", (USE WITH AT65204)
6.	........	[1]	Bushing	(USE WITH AT52068) ( AU42087 USE IF AVAILABLE)
7.	T33933	[2]	Bushing	(USE WITH AT65204)
8A.	AT52068	[1]	Main Boom	(SUB AT65204)
8B.	AT65204	[1]	Main Boom	WITH BUSHING
9.	19H2717	[2]	Cap Screw	HS, SAE 8, 3/4" X 1-3/4"
10.	U43179	[2]	Tapered Sleeve
11.	U43184	[1]	Pin	TAPERED
12.	T39153	[1]	Bushing	DIPPER
13.	U10666	[2]	Bushing
14.	U40108	[1]	Pin
15.	AT38676	[1]	Dipperstick	(SUB AT81150)
15.	AT59535	[1]	Dipperstick	(SUB AT81150)
15.	AT81150	[1]	Dipperstick
16.	JD7759	[1]	Lubrication Fitting	STRAIGHT, 1/8"
17.	U11649	[4]	Washer
17.	U11649	[4]	Washer
18.	AU41933	[2]	Link
19.	11H221	[4]	Cotter Pin	3/8" X 2-1/2"
19.	11H221	[4]	Cotter Pin	3/8" X 2-1/2"
20.	U16168	[1]	Link	DRIVE, R.H. (SUB T67896) (ALSO ORDER T67895)
20.	T67896	[1]	Link	GUIDE, R.H. (USE WITH T67895)
21.	U16169	[1]	Drive	(SUB T67895) (ALSO ORDER T67896)
21.	T67895	[1]	Link	GUIDE, L.H. (USE WITH T67896)
22A.	AU13556	[1]	Pin
22A.	AU13556	[1]	Pin
22B.	T61038	[1]	Pin	(SUB AU13556)
23.	T59452	[2]	Snap Ring
24.	JD7759	[1]	Lubrication Fitting	(USE WITH AT65204) STRAIGHT, 1/8"
25.	U43180	[2]	Spacer
