约翰迪尔零件查询9550 - BACKHOE STANDARD BUCKETS 12 AND 16-INCH (304 MM AND 406 MM) [A19]EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 470 次

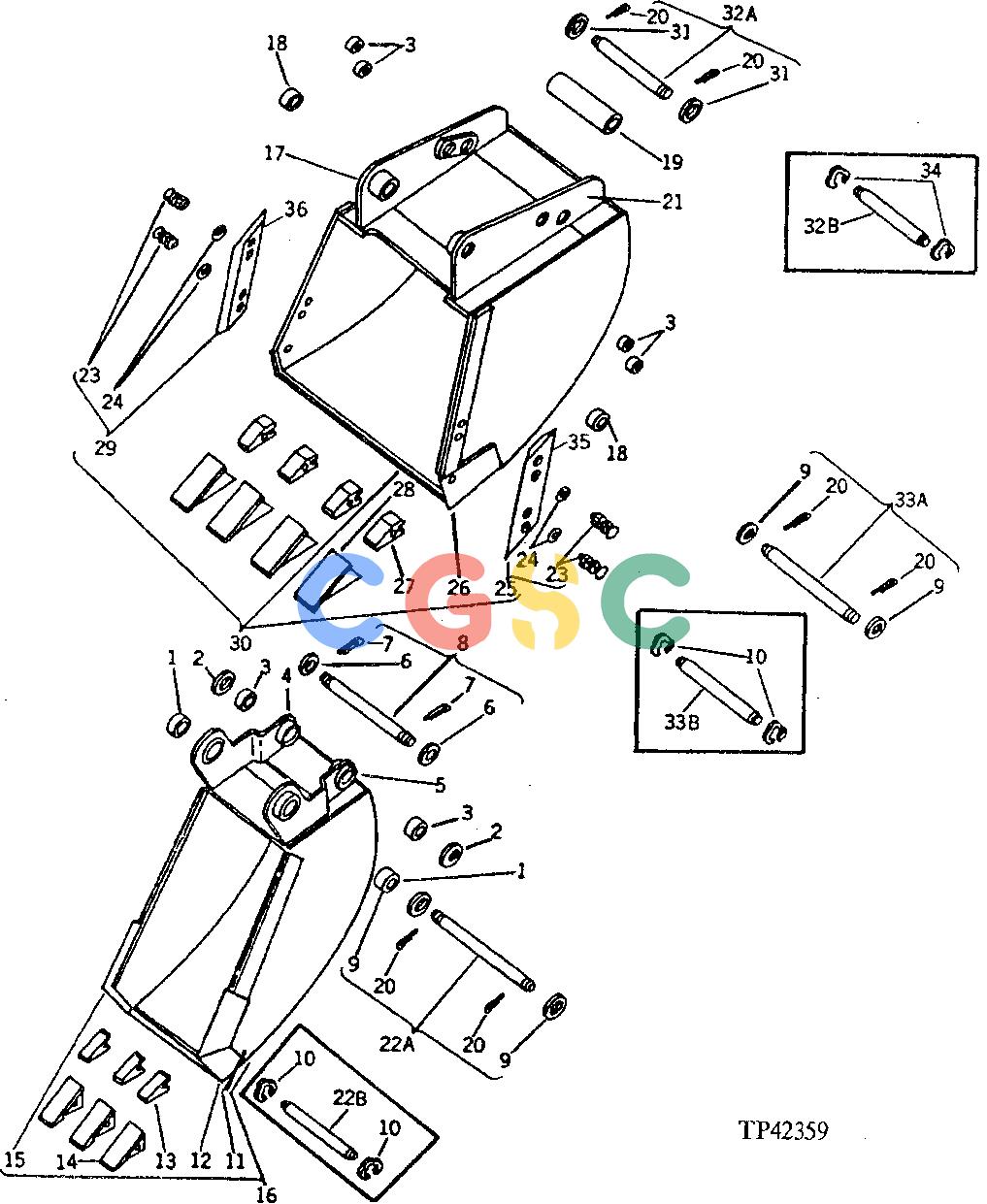

Pos.	Part No	Qty	Parts name	Comments
1.	U11121	[2]	Bushing	PIVOT PLATE
2.	24H1492	[2]	Washer	1-17/64" X 2-3/8" X 0.194"
3.	U10699	[2]	Bushing	PIVOT PLATE
4.	........	[1]	Plate	L.H. INCLUDES BUSHINGS ( AU10689 USE IF AVAILABLE)
5.	........	[1]	Plate	R.H. INCLUDES BUSHINGS ( AU10688 USE IF AVAILABLE)
6.	U11651	[2]	Washer
7.	11H221	[2]	Cotter Pin	3/8" X 2-1/2"
8.	AU13239	[1]	Pin	CONTROL LINK TO BUCKET
9.	U11649	[4]	Washer
9.	U11649	[4]	Washer
10.	T59452	[4]	Snap Ring
11.	U11116	[1]	Cutting Edge	SIDE, R.H.
12.	U11127	[1]	Cutting Edge	FRONT
13.	T716X2A	[3]	Bucket Tooth Adapter	(SUB FOR U10580)
14.	U10577	[3]	Point
15.	U11117	[1]	Cutting Edge	SIDE, L.H.
16.	........	[1]	Backhoe Bucket	304.8 MM (12") (INCLUDES PINS) ( BU10103 NO LONGER AVAILABLE)
17.	........	[1]	Plate	PIVOT, R.H. (INCLUDES BUSHINGS) ( AU10389 USE IF AVAILABLE)
18.	Y1951CU	[2]	Bushing
19.	28H2239	[1]	Spacer	1-1/4" X 7"
20.	11H221	[6]	Cotter Pin	3/8" X 2-1/2"
20.	11H221	[6]	Cotter Pin	3/8" X 2-1/2"
21.	........	[1]	Plate	PIVOT, R.H. (INCLUDES BUSHINGS) ( AU10388 USE IF AVAILABLE)
22A.	AU13556	[1]	Pin	DIPPERSTICK TO BUCKET
22A.	AU13556	[1]	Pin
22B.	T61038	[1]	Pin	DIPPERSTICK TO BUCKET, (SUB AU13556)
23.	03H1439	[6]	Bolt	1/2" X 1-3/4"
23.	12H301	[6]	Lock Washer	1/2"
23.	14H826	[6]	Nut	1/2"
24.	24H1162	[6]	Washer	17/32" X 1-1/4" X 0.060"
25.	........	[1]	Cutting Edge	R.H. ( AU12224 NO LONGER AVAILABLE)
26.	U13954	[1]	Cutting Edge	FRONT
27.	U14436	[4]	Shank
28.	U14437	[4]	Point
29.	........	[1]	Cutting Edge	L.H. ( AU12225 NO LONGER AVAILABLE)
30.	........	[1]	Backhoe Bucket	406 MM (16") ( BU10396 NO LONGER AVAILABLE)
31.	U11651	[2]	Washer
31.	U11651	[2]	Washer
32A.	AU11365	[1]	Pin	CONTROL LINK TO BUCKET
32A.	AU11365	[1]	Pin
32B.	T59462	[1]	Pin	CONTROL LINK TO BUCKET, (SUB AU11365)
33A.	AU11366	[1]	Pin	DIPPERSTICK TO BUCKET
33A.	AU11366	[1]	Pin	DIPPERSTICK TO BUCKET
33B.	T59458	[1]	Pin	DIPPERSTICK TO BUCKET, (SUB AU11366)
34.	T59447	[2]	Snap Ring
35.	U13952	[1]	Cutting Edge	R.H.
36.	U13953	[1]	Cutting Edge	L.H.
