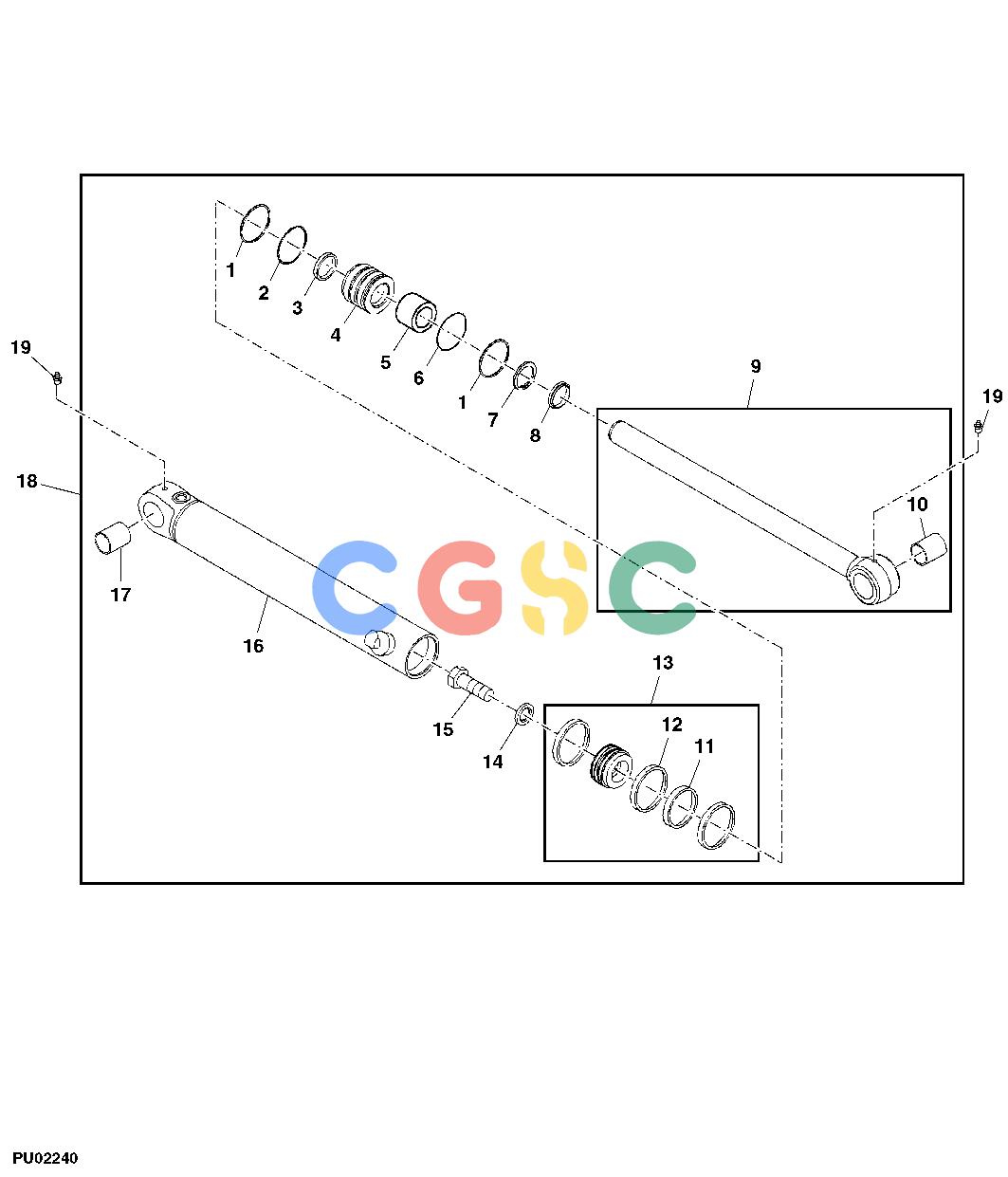

约翰迪尔零件查询110 - BACKHOE, LOADER Crowd/Dipperstick Cylinder (104013 - 107645)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
876 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T12582
|
[2] |
O-Ring
|
|
| 2. |
R81864
|
[1] |
Back-Up Ring
|
|
| 3. |
H152202
|
[1] |
Seal
|
|
| 4. |
H210732
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 5. |
H157898
|
[1] |
Wear Ring
|
|
| 6. |
H170216
|
[1] |
Snap Ring
|
|
| 7. |
H180787
|
[1] |
Snap Ring
|
|
| 8. |
H157899
|
[1] |
Seal
|
|
| 9. |
AH173860
|
[1] |
Rod
|
|
| 10. |
H151542
|
[1] |
Bushing
|
|
| 11. |
R98323
|
[1] |
Seal
|
|
| 12. |
R98322
|
[1] |
Seal
|
|
| 13. |
RE33968
|
[1] |
Piston
|
|
| 14. |
H145176
|
[1] |
Washer
|
|
| 15. |
19H3632
|
[1] |
Cap Screw
|
|
| 16. |
........
|
[1] |
Hydraulic Cylinder Barrel
|
|
| 17. |
H151542
|
[1] |
Bushing
|
|
| 18. |
AH215950
|
[1] |
Hydraulic Cylinder
|
|
| 19. |
T162396
|
[2] |
Lubrication Fitting
|
|
| ... |
AH149813
|
[1] |
Seal Kit
|
|
| ... |
AH212092
|
[1] |
Seal Kit
|
|
