约翰迪尔零件查询110 - BACKHOE, LOADER Boom Cylinder (101814 - 106873)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 925 次

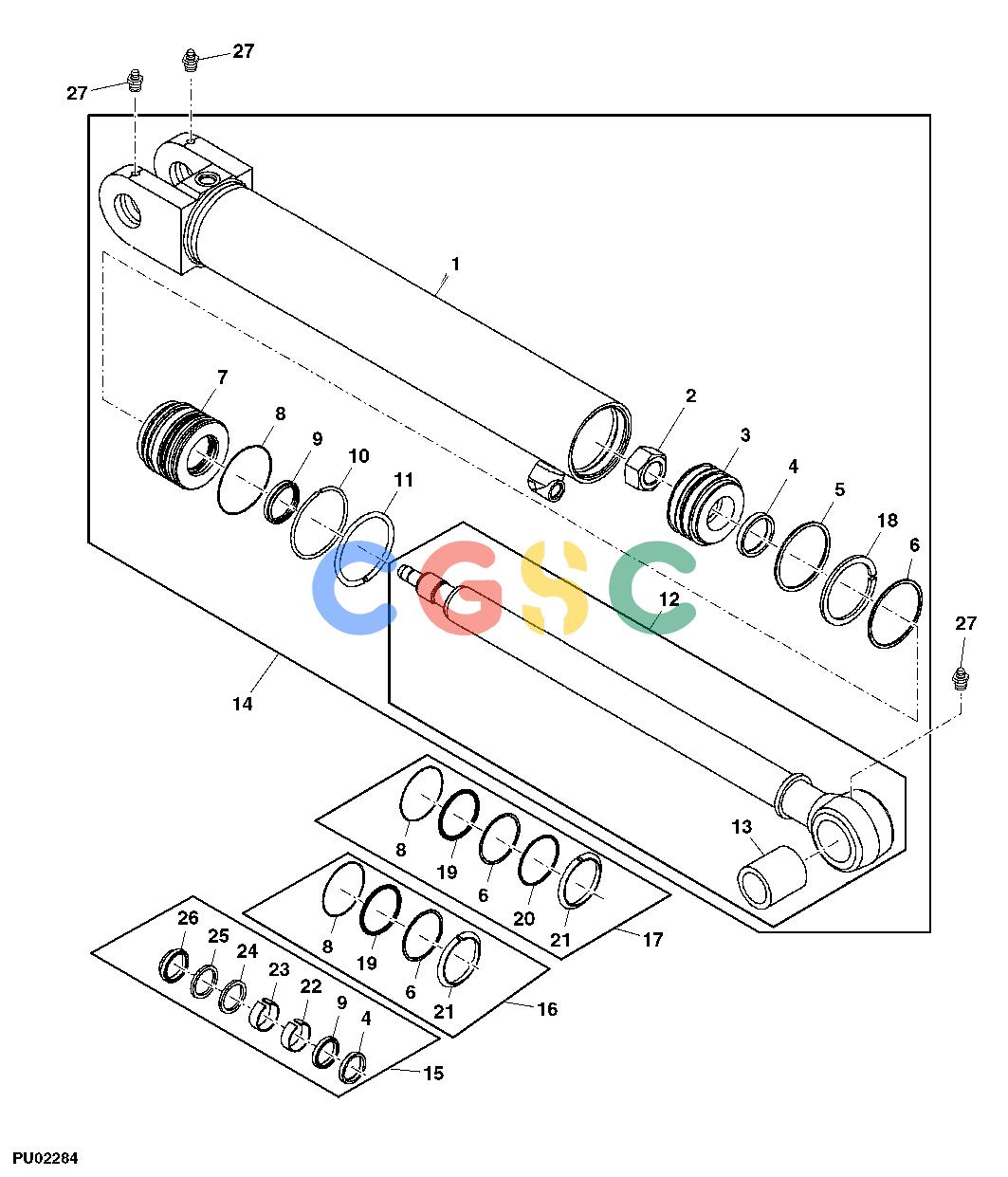

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Hydraulic Cylinder Barrel	(ORDER AH213382)
2.	H170539	[1]	Nut
3.	AH169436	[1]	Piston
4.	H152202	[1]	Seal	(A)
5.	F1430R	[1]	O-Ring
6.	R79101	[1]	Back-Up Ring	(B) (C)
7.	H206860	[1]	Hydr. Cylinder Rod Guide
8.	E65288	[1]	O-Ring	(B) (C)
9.	H157899	[1]	Seal	(A)
10.	H180103	[1]	Snap Ring
11.	H206859	[1]	Snap Ring
12.	AH206780	[1]	Hydraulic Cylinder Rod
13.	H151542	[1]	Bushing
14.	AH213382	[1]	Hydraulic Cylinder	(FOR SERIAL NUMBERS (106228-106735) (106738-106752) (106759-106817) USE AH213382 CYLINDER) (SUB FOR AH206619)
15.	AH149813	[1]	Hydraulic Cylinder Kit	ROD SEAL (INCLUDES PARTS MARKED (A))
16.	AH212097	[1]	Hydraulic Cylinder Kit	SEAL (INCLUDES PARTS MARKED (C)), (SUB FOR AH202290)
17.	AH212097	[1]	Hydraulic Cylinder Kit	BORE SEAL (INCLUDES PARTS MARKED (B))
18.	H173206	[1]	Ring
19.	R83576	[1]	O-Ring	(B) (C)
20.	H181114	[1]	O-Ring	(B)
21.	R91730	[1]	Ring	(B) (C)
22.	H157898	[1]	Wear Ring	(A)
23.	H152793	[1]	Wear Ring	(A)
24.	H155629	[1]	Seal	(A)
25.	AH146560	[1]	Seal	(A)
26.	AH146556	[1]	Seal	(A)
27.	T162396	[3]	Lubrication Fitting
