约翰迪尔零件查询110 - BACKHOE, LOADER Boom Cylinder (106874 - )EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 450 次

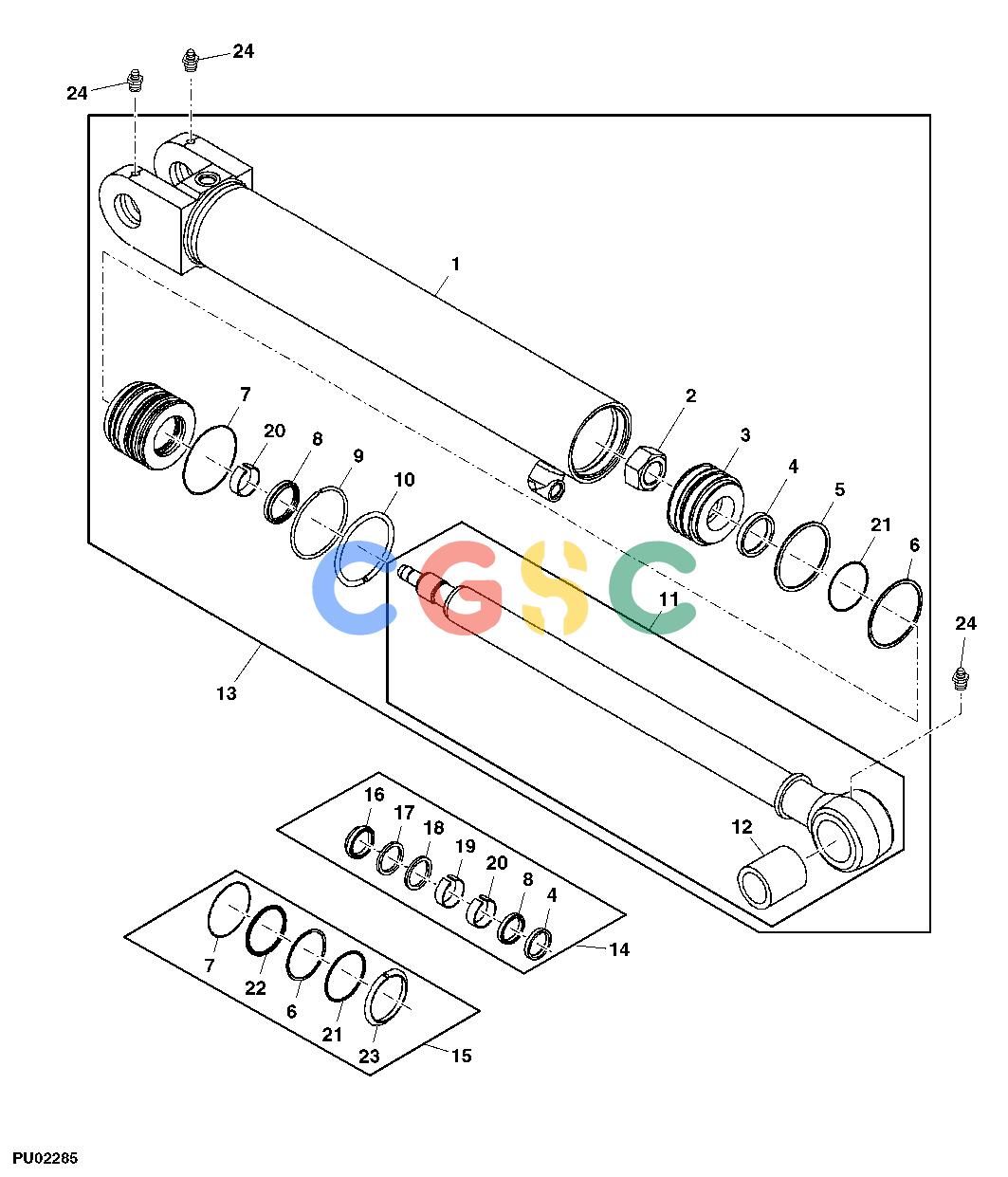

Pos.	Part No	Qty	Parts name	Comments
1.	........	[1]	Hydraulic Cylinder Barrel	( AH213393 NLA) (ORDER AH213382)
2.	H170539	[1]	Nut
3.	AH169436	[1]	Piston
4.	H152202	[1]	Seal	(A)
5.	F1430R	[1]	O-Ring
6.	R79101	[1]	Back-Up Ring	(B)
7.	E65288	[1]	O-Ring	(B)
8.	H157899	[1]	Seal	(A)
9.	H180103	[1]	Snap Ring
10.	H206859	[1]	Snap Ring
11.	AH213383	[1]	Hydraulic Cylinder Rod
12.	H151542	[1]	Bushing
13.	AH213382	[1]	Hydraulic Cylinder	(FOR SN.(101814-106227)(106736-106737)(106753-106758)(106818-106873) USE AH206619 CYLINDER)
14.	AH149813	[1]	Hydraulic Cylinder Kit	ROD SEAL (INCLUDES PARTS MARKED (A))
15.	AH212097	[1]	Hydraulic Cylinder Kit	BORE SEAL (INCLUDES PARTS MARKED (B)), (SUB FOR AH202290)
16.	AH146556	[1]	Seal	(A)
17.	AH146560	[1]	Seal	(A)
18.	H155629	[1]	Seal	(A)
19.	H152793	[1]	Wear Ring	(A)
20.	H157898	[1]	Wear Ring	(A)
21.	H181114	[1]	O-Ring	(B)
22.	R83576	[1]	O-Ring	(B)
23.	R91730	[1]	Ring	(B)
24.	T162396	[3]	Lubrication Fitting
...	AH213394	[1]	Screw	(CUSHION ASSEMBLY)
