约翰迪尔零件查询110 - BACKHOE, LOADER Stabilizer Cylinder (106261 - )EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 597 次

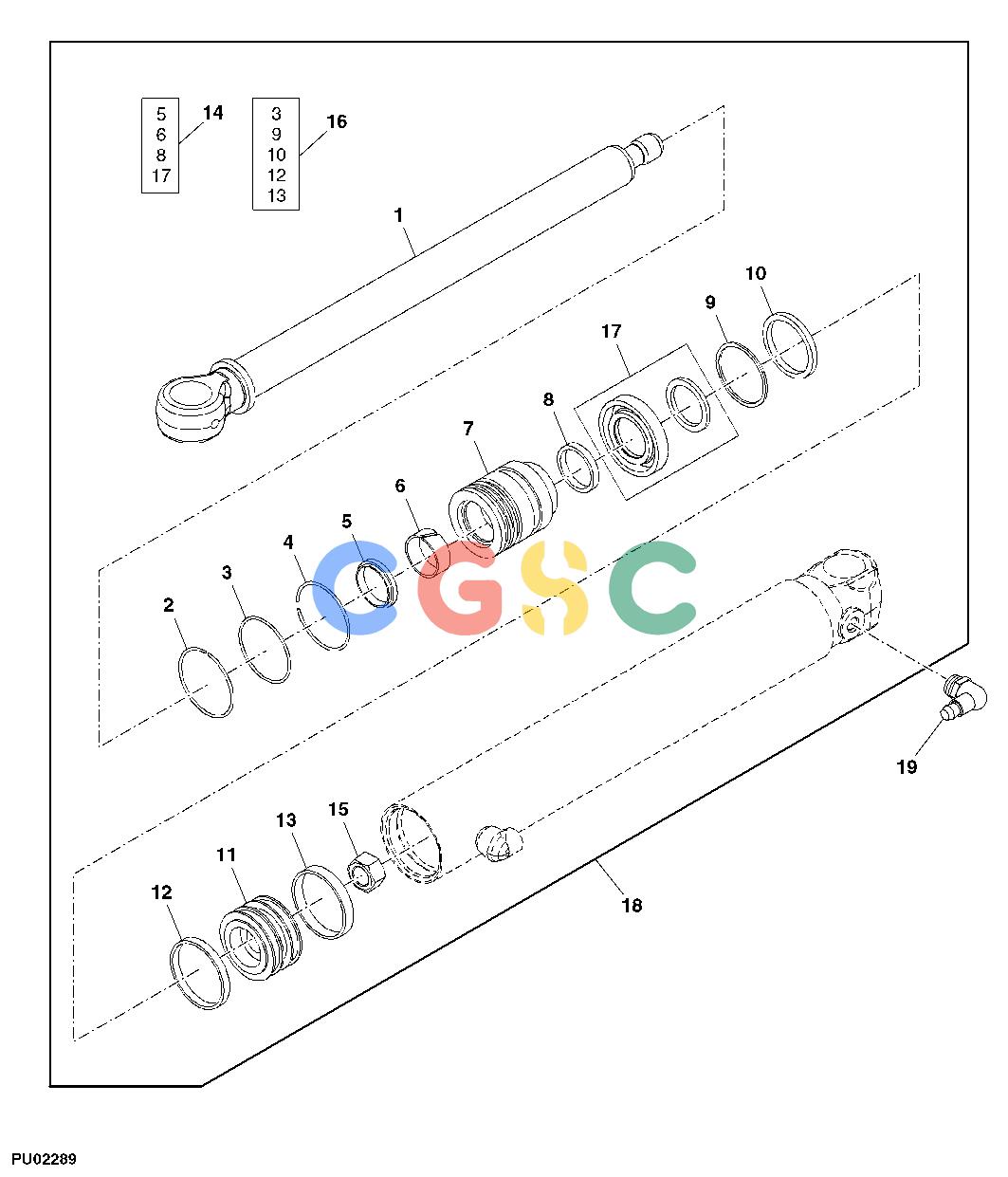

Pos.	Part No	Qty	Parts name	Comments
1.	AH173935	[1]	Hydraulic Cylinder Rod
2.	H179657	[1]	Snap Ring
3.	U12198	[1]	O-Ring	(B)
4.	H178765	[1]	Snap Ring
5.	H155655	[1]	Seal	(A)
6.	H157897	[1]	Wear Ring	(A) (SUB FOR H157947)
7.	H210939	[1]	Hydr. Cylinder Rod Guide
8.	H155655	[1]	Seal	(A)
9.	R81195	[1]	Back-Up Ring	(B)
10.	R83469	[1]	O-Ring	(B)
11.	AH158623	[1]	Piston
12.	R98325	[1]	Seal	(B) RING, ELASTOMER (70 BORE)
13.	R98324	[1]	Seal	(B) RING (70 BORE)
14.	AH149194	[1]	Hydraulic Cylinder Kit	ROD SEAL (INCLUDES PARTS MARKED (A))
14.	AH148608	[1]	Seal	(A)
14.	AH150453	[1]	Seal	(A)
14.	H157897	[1]	Wear Ring	(A)
14.	H155628	[1]	Seal	(A)
14.	H155655	[1]	Seal	(A)
15.	H170537	[1]	Nut
16.	AH212090	[1]	Hydraulic Cylinder Kit	SEAL, ALSO ORDER DIR204 DIRECTIONS (INCLUDES PARTS MARKED (B))
16.	R91728	[1]	Ring	(B) FILLER
16.	U12198	[1]	O-Ring	(B)
17.	AH148608	[1]	Seal	(A)
18.	AH213904	[2]	Hydraulic Cylinder
19.	JD7799	[1]	Lubrication Fitting
