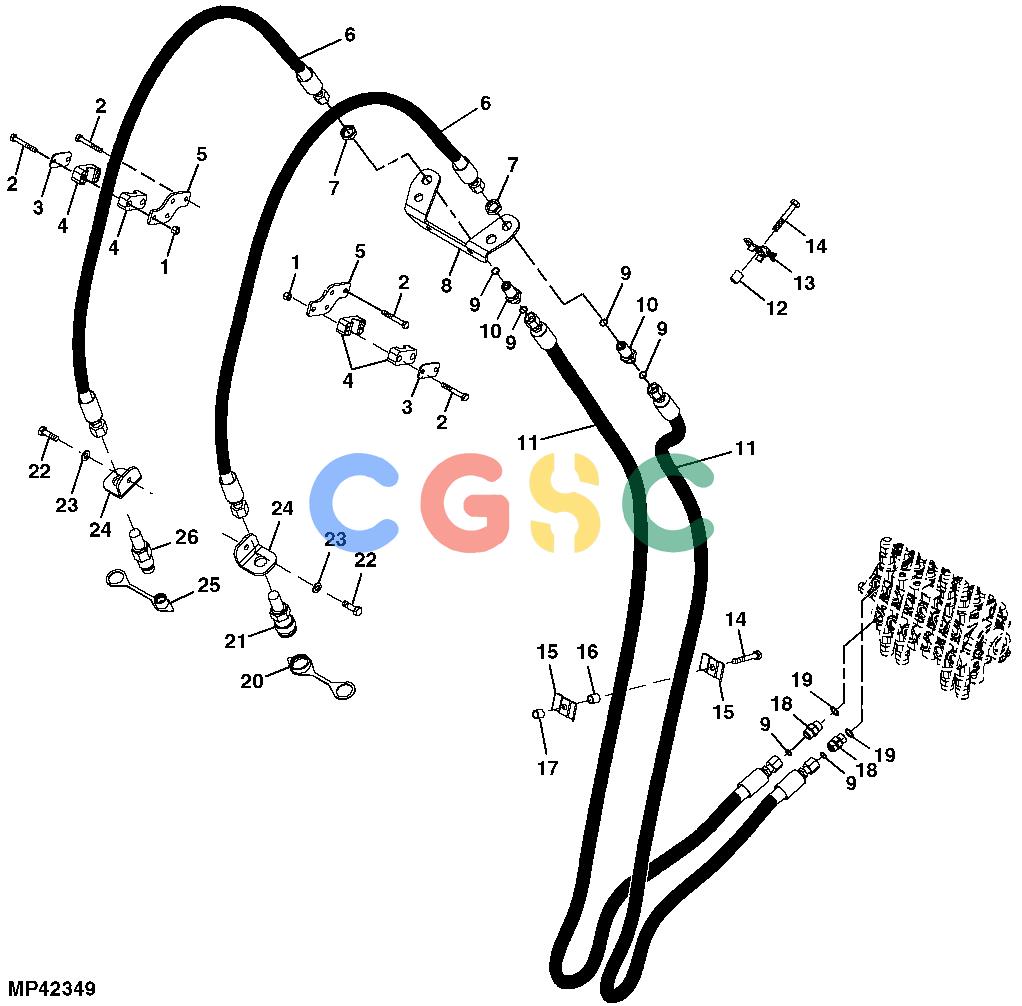

约翰迪尔零件查询110 - BACKHOE, LOADER Auxiliary Hydraulic Kit (7 Function) ( - 102999)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
293 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7166
|
[4] |
Lock Nut
|
|
| 2. |
19M7185
|
[8] |
Cap Screw
|
|
| 3. |
T162005
|
[2] |
Strap
|
|
| 4. |
T162003
|
[4] |
Clamp
|
|
| 5. |
T188237
|
[2] |
Plate
|
|
| 6. |
AT195646
|
[2] |
Hydraulic Hose - Fabricate
|
|
| 7. |
T78716
|
[2] |
Nut
|
|
| 8. |
T188045
|
[1] |
Bracket
|
|
| 9. |
T77857
|
[6] |
O-Ring
|
|
| 10. |
38H1275
|
[2] |
Adapter Fitting
|
|
| 11. |
AT196022
|
[2] |
Hydraulic Hose - Fabricate
|
|
| 12. |
28H1523
|
[1] |
Bushing
|
|
| 13. |
T160548
|
[1] |
Clamp
|
|
| 14. |
19M7742
|
[2] |
Cap Screw
|
|
| 15. |
R46919
|
[2] |
Half Clamp
|
|
| 16. |
28H3383
|
[1] |
Bushing
|
|
| 17. |
28H3381
|
[1] |
Spacer
|
|
| 18. |
38H1161
|
[2] |
Adapter Fitting
|
|
| 19. |
R26375
|
[2] |
O-Ring
|
|
| 20. |
T188880
|
[1] |
Cap
|
|
| 21. |
KV11305
|
[1] |
Hyd. Quick-Connect Coupler
|
|
| 22. |
19M7550
|
[2] |
Cap Screw
|
|
| 23. |
24M7239
|
[2] |
Washer
|
|
| 24. |
T188046
|
[2] |
Angle
|
|
| 25. |
T188879
|
[1] |
Cap
|
|
| 26. |
KV11304
|
[1] |
Hyd. Quick-Connect Coupler
|
|
