约翰迪尔零件查询110 - BACKHOE, LOADER Hydraulic Lines (Boom/Bucket) (103000 - 107886)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 356 次

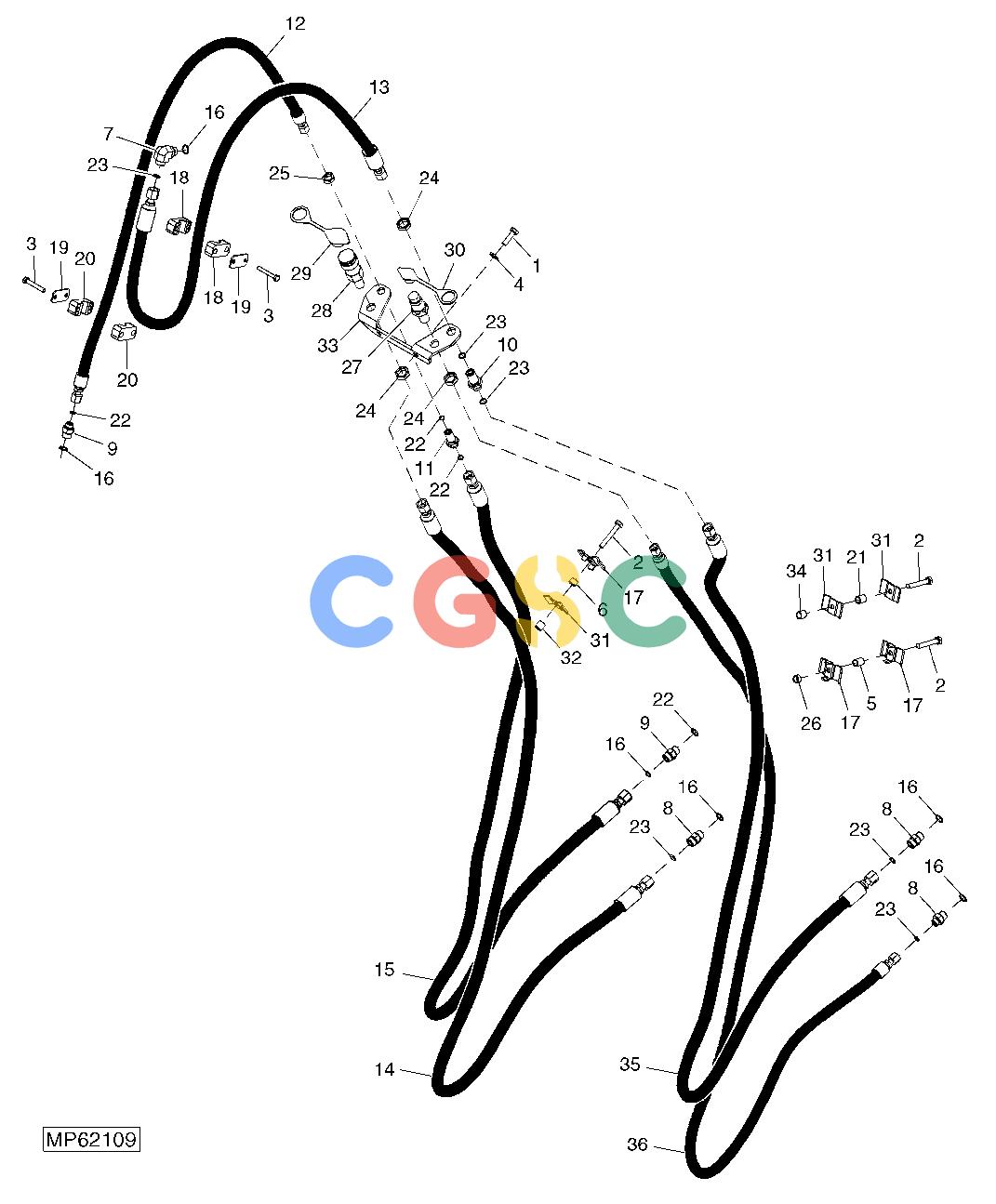

Pos.	Part No	Qty	Parts name	Comments
1.	19M7550	[2]	Cap Screw	M10 X 35 (HS, HEAD MARKED 10.9)
2.	19M7742	[3]	Cap Screw	M10 X 65 (HS, HEAD MARKED 10.9)
3.	19M7981	[4]	Cap Screw	M8 X 55 (HS, HEAD MARKED 10.9)
4.	24M7239	[2]	Washer	10.700 X 21 X 2.500 MM
5.	28H1523	[1]	Bushing	0.493" X 0.675" X 13/16"
6.	28H3394	[1]	Bushing	0.493" X 0.675" X 1/2"
7.	38H1005	[1]	Elbow Fitting
8.	38H1161	[2]	Adapter Fitting
9.	38H1171	[2]	Adapter Fitting
10.	38H1275	[1]	Adapter Fitting
11.	38H1285	[1]	Union Fitting
12.	AT194012	[1]	Hydraulic Hose
13.	AT194013	[1]	Hydraulic Hose
14.	AT196022	[1]	Hydraulic Hose - Fabricate	0.500" I.D. (AUXILIARY, BOTTOM)
15.	AT196025	[1]	Hydraulic Hose - Fabricate	0.375" I.D. (BUCKET CYLINDER, ROD END)
16.	R26375	[6]	O-Ring
17.	T160548	[3]	Clamp
18.	T162003	[2]	Clamp
19.	T162005	[2]	Strap
20.	T187403	[2]	Clamp
21.	28H3383	[1]	Bushing	0.493" X 0.675" X 3/4"
22.	T77613	[4]	O-Ring
23.	T77857	[6]	O-Ring
24.	T78716	[3]	Nut
25.	T81029	[1]	Nut
26.	T190406	[1]	Washer
27.	AT305460	[1]	Hyd. Quick-Connect Coupler
28.	AT305461	[1]	Hyd. Quick-Connect Coupler
29.	T188879	[1]	Cap
30.	T188880	[1]	Cap
31.	R46919	[3]	Half Clamp
32.	T126052	[1]	Spacer
33.	T202790	[1]	Bracket
34.	28H3381	[1]	Spacer	0.493" X 0.675" X 5/8"
35.	AT196022	[1]	Hydraulic Hose - Fabricate	0.500" I.D. (BUCKET CYLINDER, HEAD END)
36.	AT196022	[1]	Hydraulic Hose - Fabricate	0.500" I.D. (AUXILIARY, TOP)
