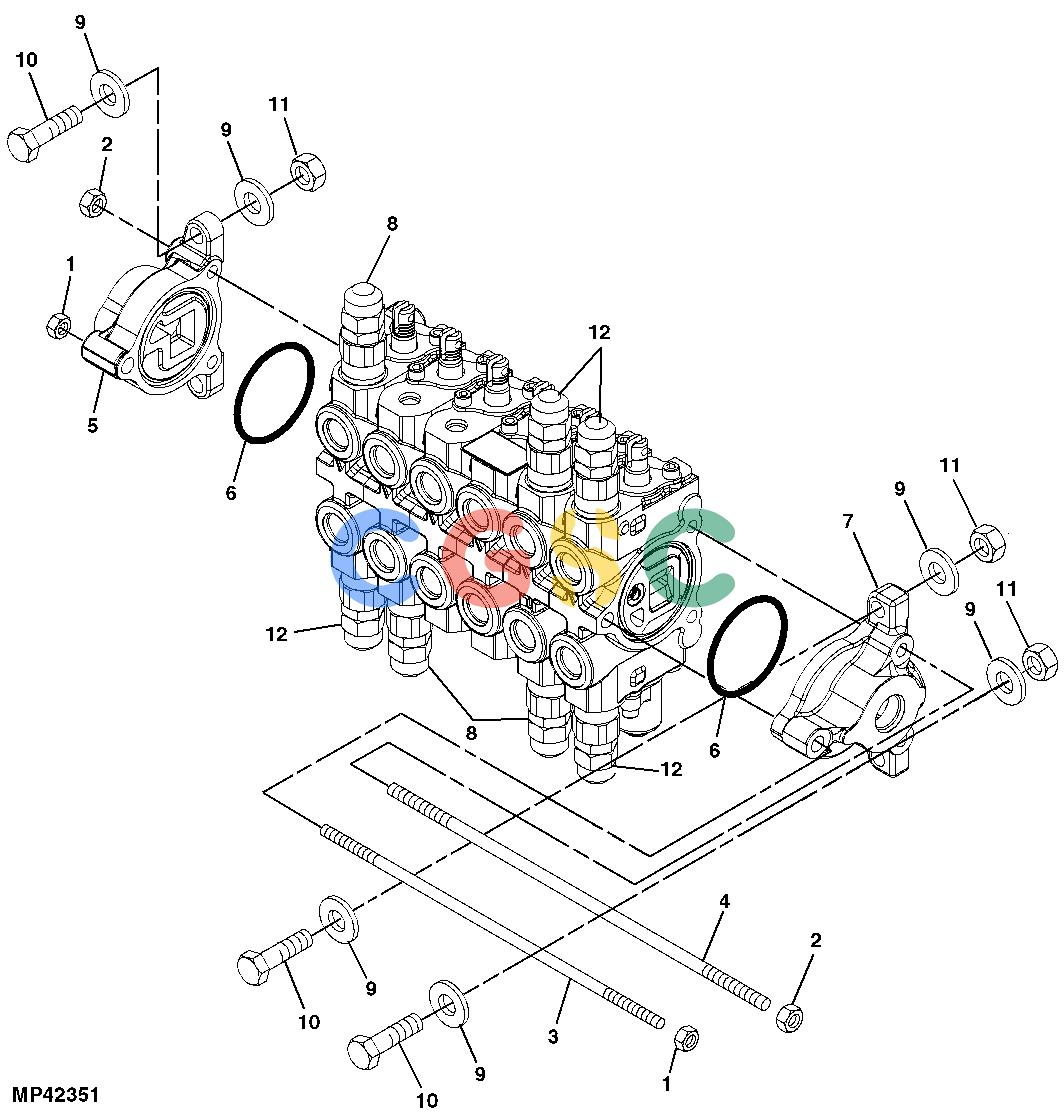

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14H1080 | [2] | Nut | 3/8" |
| 2. | 14H1042 | [4] | Nut | 5/16" |
| 3. | T188598 | [1] | Tie Rod Assembly | |
| 4. | T188597 | [2] | Tie Rod Assembly | |
| 5. | AT196091 | [1] | Housing | INLET SECTION |
| 6. | L111836 | [2] | O-Ring | |
| 7. | AT196100 | [1] | Hyd Actuated Control Valve | OUTLET SECTION |
| 8. | AT307634 | [3] | Pressure Relief Valve | (4000 PSI) (SUB FOR AT196244) |
| 9. | 24M7239 | [8] | Washer | 10.700 X 21 X 2.500 MM |
| 10. | 19M7550 | [4] | Cap Screw | M10 X 35 (HS, HEAD MARKED 10.9) |
| 11. | 14M7274 | [4] | Nut | M10 |
| 12. | AT307633 | [4] | Pressure Relief Valve | (3200 PSI) (SUB FOR AT196121) |
