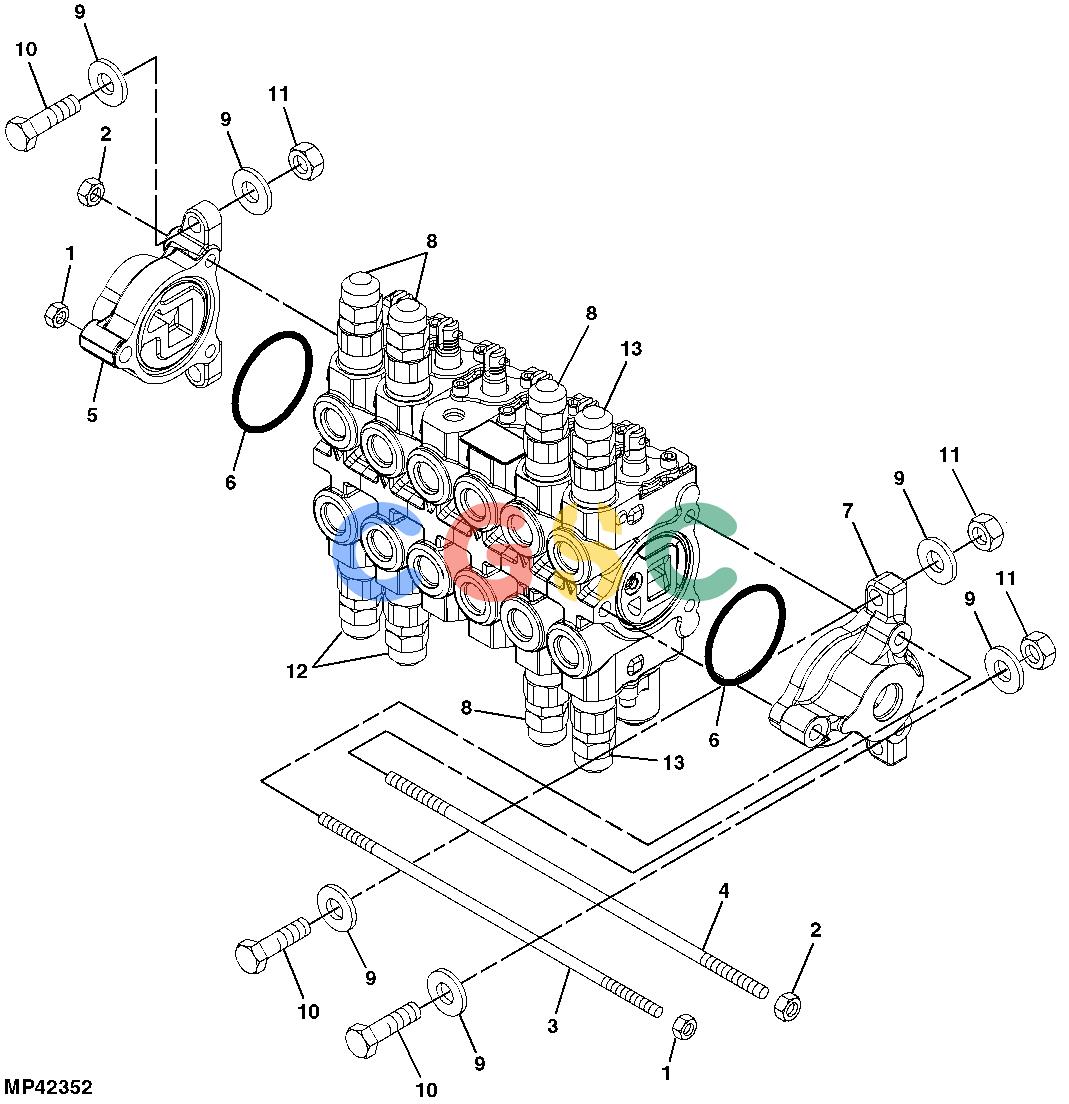

约翰迪尔零件查询110 - BACKHOE, LOADER HYDRAULIC CONTROL VALVE (7 FUNCTION)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14H1080
|
[2] |
Nut
|
|
| 2. |
14H1042
|
[4] |
Nut
|
|
| 3. |
T188585
|
[1] |
Tie Rod Assembly
|
|
| 4. |
T188586
|
[2] |
Tie Rod Assembly
|
|
| 5. |
AT196091
|
[1] |
Housing
|
|
| 6. |
L111836
|
[2] |
O-Ring
|
|
| 7. |
AT196100
|
[1] |
Hyd Actuated Control Valve
|
|
| 8. |
AT307634
|
[4] |
Pressure Relief Valve
|
|
| 9. |
24M7239
|
[8] |
Washer
|
|
| 10. |
19M7550
|
[4] |
Cap Screw
|
|
| 11. |
14M7274
|
[4] |
Nut
|
|
| 12. |
AT307633
|
[2] |
Pressure Relief Valve
|
|
| 13. |
AT307635
|
[2] |
Pressure Relief Valve
|
|
