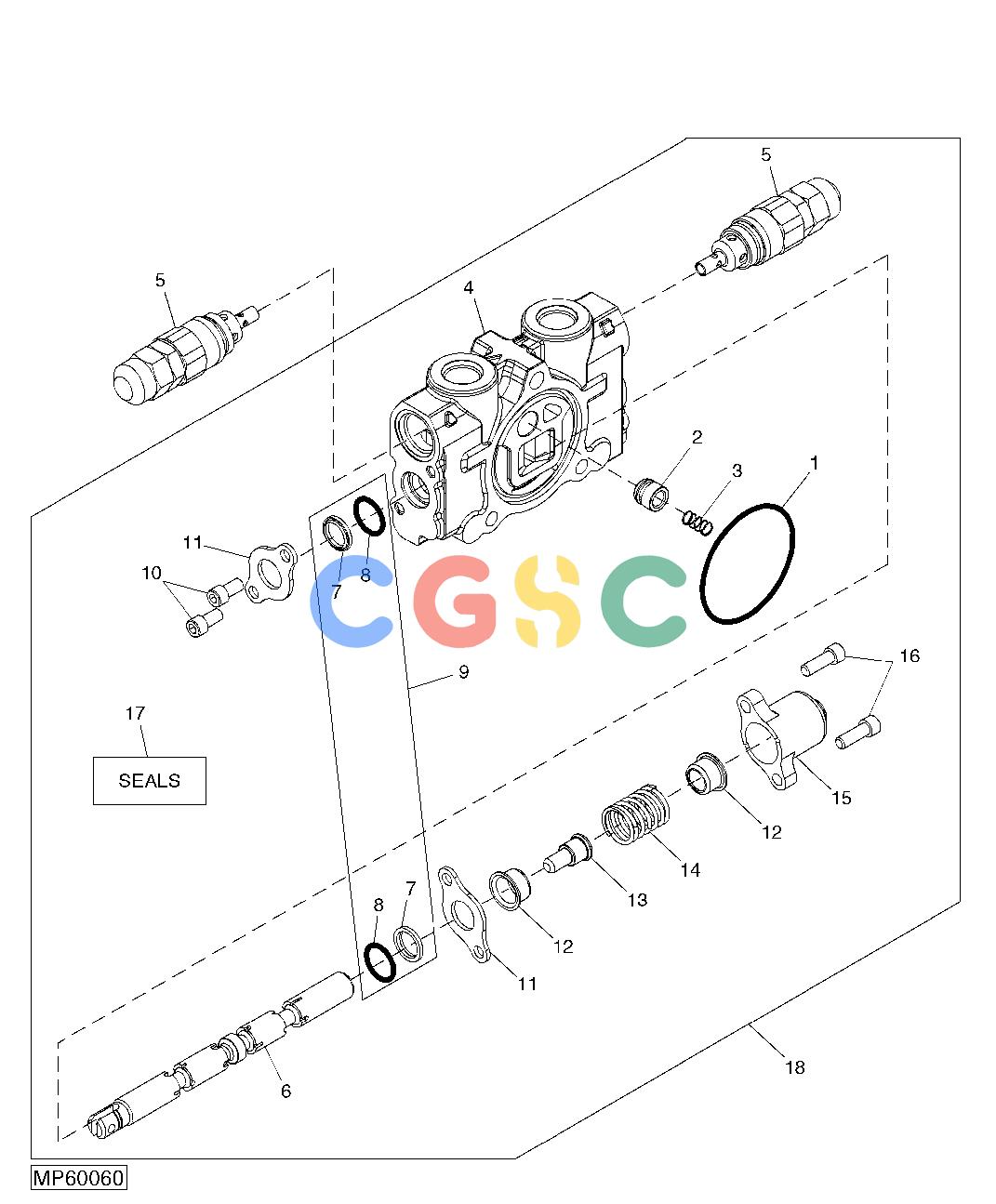

约翰迪尔零件查询110 - BACKHOE, LOADER Valve Section (Swing)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
L111836
|
[1] |
O-Ring
|
|
| 2. |
T76503
|
[1] |
Poppet
|
|
| 3. |
T76509
|
[1] |
Spring
|
|
| 4. |
........
|
[1] |
Housing
|
|
| 5. |
AT307633
|
[2] |
Pressure Relief Valve
|
|
| 6. |
........
|
[1] |
Valve Spool
|
|
| 7. |
........
|
[2] |
Seal
|
|
| 8. |
........
|
[2] |
O-Ring
|
|
| 9. |
LVA11783
|
[1] |
Seal Kit
|
|
| 10. |
21H1352
|
[2] |
Screw
|
|
| 11. |
T76504
|
[2] |
Plate
|
|
| 12. |
T188564
|
[2] |
Retainer
|
|
| 13. |
T188562
|
[1] |
Screw
|
|
| 14. |
T76506
|
[1] |
Spring
|
|
| 15. |
T188563
|
[1] |
Cap
|
|
| 16. |
19H2924
|
[2] |
Screw
|
|
| 17. |
AT314538
|
[1] |
Seal Kit
|
|
| 17. |
R63548
|
[2] |
O-Ring
|
|
| 17. |
R79060
|
[1] |
O-Ring
|
|
| 17. |
T107887
|
[1] |
O-Ring
|
|
| 17. |
T118681
|
[2] |
O-Ring
|
|
| 17. |
T150958
|
[1] |
Back-Up Ring
|
|
| 17. |
T183756
|
[1] |
Seal
|
|
| 17. |
T183757
|
[1] |
Seal
|
|
| 18. |
AT196092
|
[1] |
Hyd Actuated Control Valve
|
|
