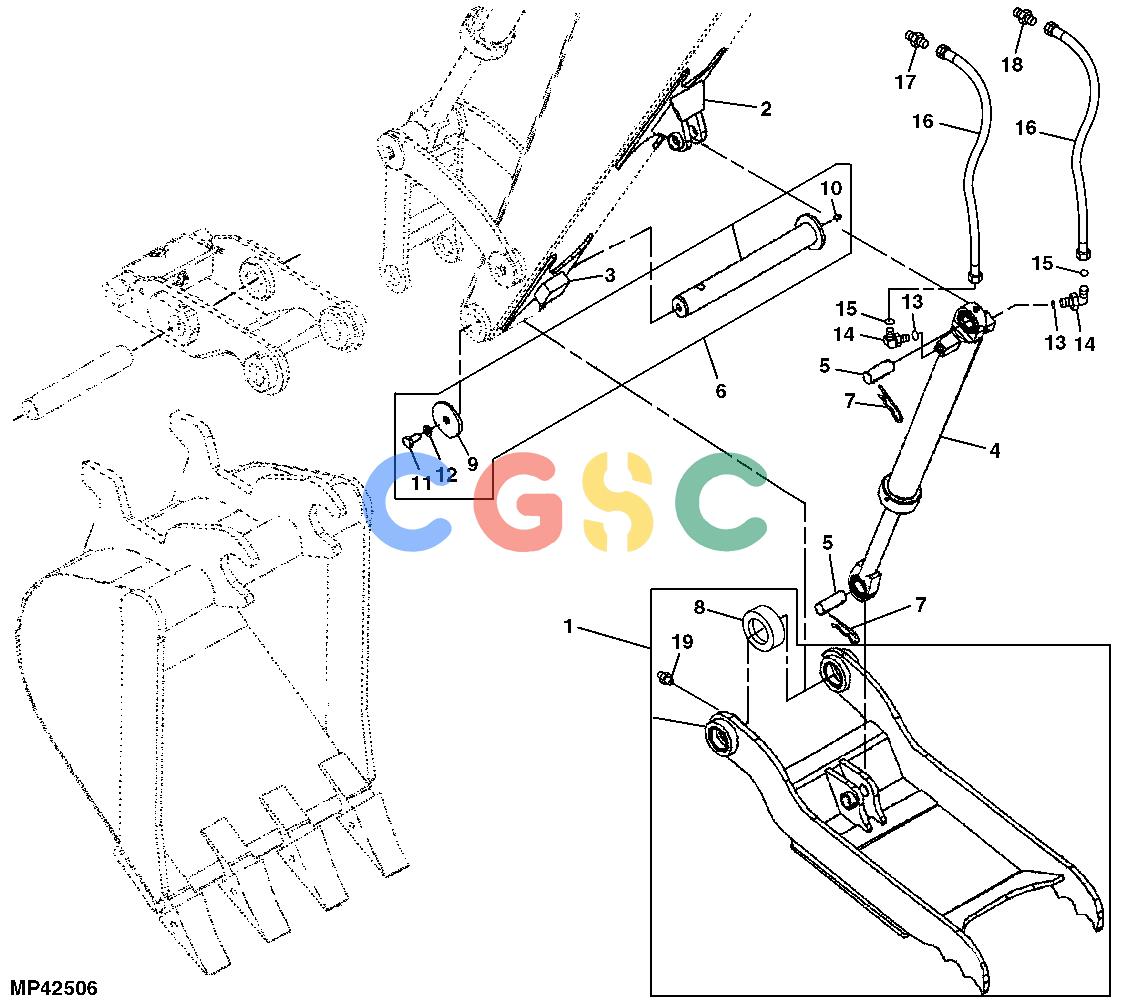

约翰迪尔零件查询110 - BACKHOE, LOADER HYDRAULIC CLAMP (BACKHOE SN 103000- )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT316569
|
[1] |
Clamp
|
|
| 2. |
T185261
|
[1] |
Plate
|
|
| 3. |
T207216
|
[1] |
Plate
|
|
| 4. |
AT309145
|
[1] |
Hydraulic Cylinder
|
|
| 5. |
T185222
|
[2] |
Pin
|
|
| 6. |
AT317651
|
[1] |
Pin Fastener
|
|
| 7. |
AT260407
|
[2] |
Spring Locking Pin
|
|
| 8. |
T185267
|
[1] |
Bushing
|
|
| 9. |
L77320
|
[1] |
Washer
|
|
| 10. |
AT260410
|
[1] |
Lubrication Fitting
|
|
| 11. |
19H2472
|
[1] |
Cap Screw
|
|
| 12. |
12H301
|
[1] |
Lock Washer
|
|
| 13. |
R28782
|
[2] |
O-Ring
|
|
| 14. |
38H1435
|
[2] |
Elbow Fitting
|
|
| 15. |
T77613
|
[2] |
O-Ring
|
|
| 16. |
AT280275
|
[2] |
Hydraulic Hose - Fabricate
|
|
| 17. |
M131862
|
[1] |
Hyd. Quick-Connect Coupler
|
|
| 18. |
M131863
|
[1] |
Hydr. Quick Coupler Plug
|
|
| 19. |
AT260410
|
[2] |
Lubrication Fitting
|
|
| 20. |
T185267
|
[2] |
Bushing
|
|
| 21. |
AT318255
|
[2] |
Clamp
|
|
