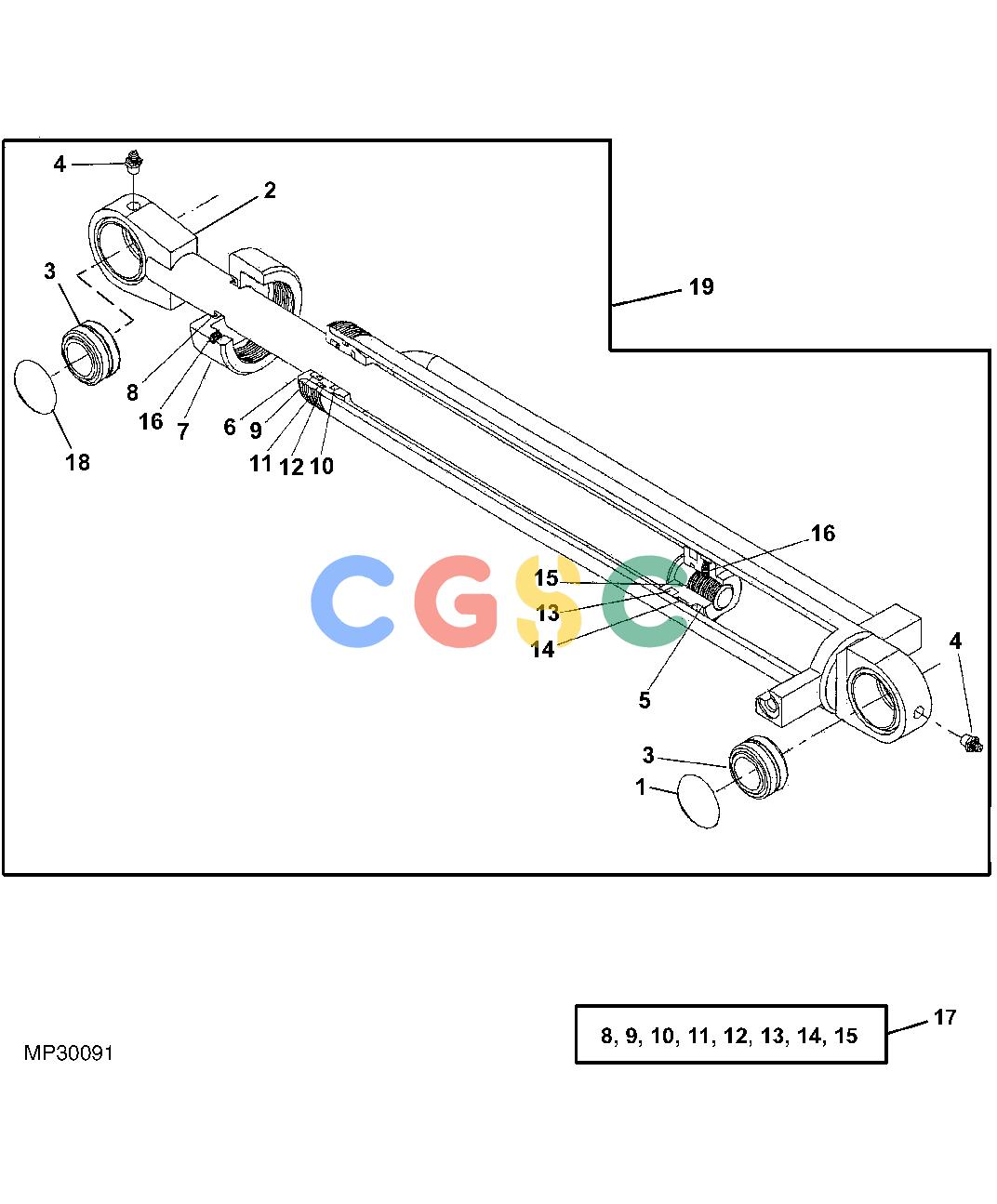

约翰迪尔零件查询110 - BACKHOE, LOADER BUCKET CLAMP CYLINDER (BACKHOE SERIAL NO. -102999)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R54114
|
[4] |
Snap Ring
|
|
| 2. |
........
|
[1] |
Rod
|
|
| 3. |
AT260411
|
[2] |
Bushing
|
|
| 4. |
AT260410
|
[2] |
Lubrication Fitting
|
|
| 5. |
........
|
[1] |
Piston
|
|
| 6. |
T185270
|
[1] |
Cylinder
|
|
| 7. |
T185271
|
[1] |
Retainer
|
|
| 8. |
T185272
|
[1] |
Seal
|
|
| 9. |
T185273
|
[1] |
Seal
|
|
| 10. |
T185274
|
[1] |
Ring
|
|
| 11. |
R78392
|
[1] |
Back-Up Ring
|
|
| 12. |
R31378
|
[1] |
O-Ring
|
|
| 13. |
T185248
|
[1] |
Piston Ring
|
|
| 14. |
T185249
|
[1] |
Wear Ring
|
|
| 15. |
T185250
|
[1] |
O-Ring
|
|
| 16. |
AT260415
|
[2] |
Nut
|
|
| 17. |
AT191403
|
[1] |
Seal Kit
|
|
| 18. |
R54114
|
[1] |
Snap Ring
|
|
| 19. |
AT191402
|
[1] |
Cylinder
|
|
