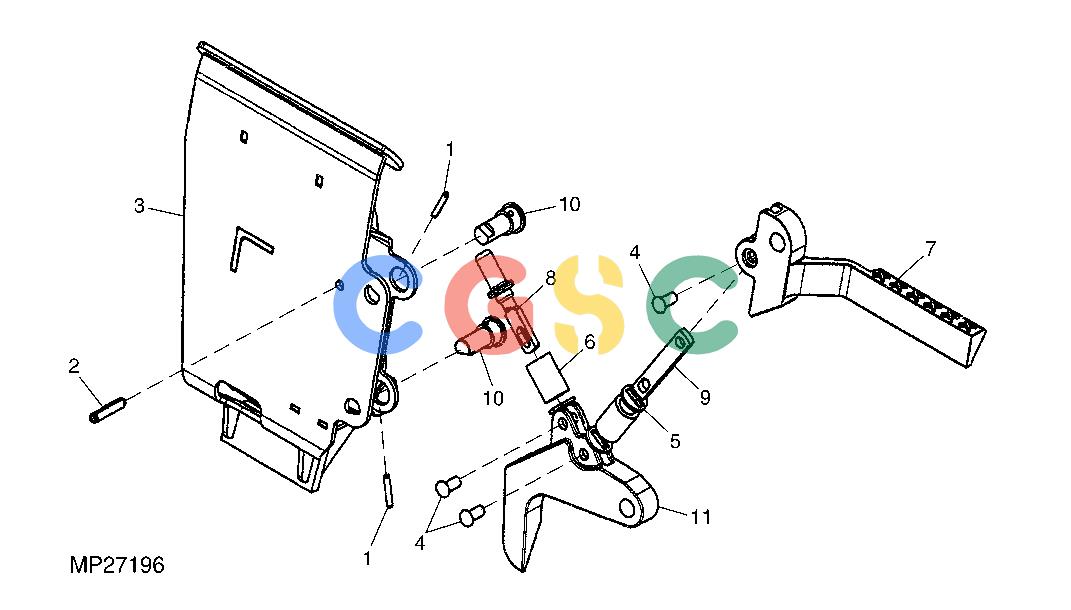

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 34M7216 | [2] | Spring Pin | 6 X 35 MM |
| 2. | 34H356 | [1] | Spring Pin | 3/8" X 2-1/4" (SUB FOR 34M7251) |
| 3. | AW32978 | [1] | Holder | (56.5 MM) RH, (SUB FOR AW30508) |
| 3. | AW32979 | [1] | Holder | (56.5 MM) LH, (SUB FOR AW30509) |
| 4. | W50737 | [3] | Weld Pin | |
| 5. | KV14518 | [3] | Washer | |
| 6. | KV15409 | [2] | Compression Spring | |
| 7. | KV15906 | [1] | Handle | RH |
| 7. | KV15907 | [1] | Handle | LH |
| 8. | KV15968 | [1] | Guide | |
| 9. | KV18477 | [1] | Strap | |
| 10. | W50194 | [2] | Pin | LGTH=62.5 MM, PIVOT, (SUB FOR KV18494) |
| 11. | KV18988 | [1] | Pawl | RH |
| 11. | KV18987 | [1] | Pawl | LH |
