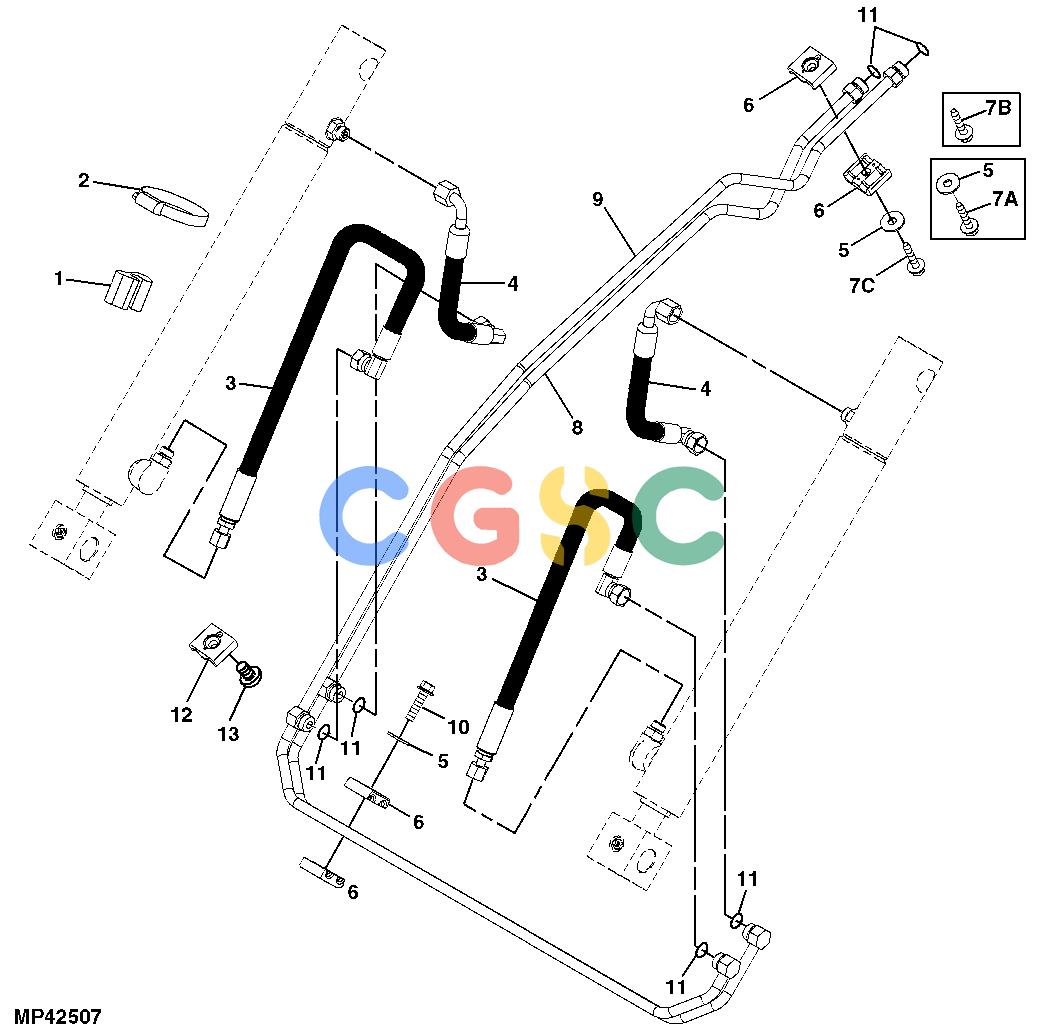

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | T105774 | [2] | Guide | |
| 2. | TY22473 | [2] | Clamp | |
| 3. | AW31823 | [2] | Hydraulic Hose | |
| 4. | AW31045 | [2] | Hydraulic Hose | |
| 5. | 24M7178 | [3] | Washer | 10.500 X 30 X 2.500 MM |
| 6. | W39750 | [6] | Clamp | |
| 7A. | 37M7262 | [1] | Screw | M10 X 50 SELF TAPPING; SUB FOR H171977 |
| 7B. | 37M7332 | [1] | Screw | SELF TAPPING; ORDER 37M7262 |
| 7C. | 37M7262 | [1] | Screw | M10 X 50 SELF TAPPING |
| 8. | AW31195 | [1] | Line | |
| 9. | AW31196 | [1] | Line | |
| 10. | 19M8162 | [2] | Screw | M10 X 40 (HS, HEAD MARKED 10.9) |
| 11. | T77857 | [6] | O-Ring | 12.421 X 1.778 MM |
| 12. | W30661 | [1] | Clamp | |
| 13. | 19M7166 | [1] | Cap Screw | M10 X 20 |
