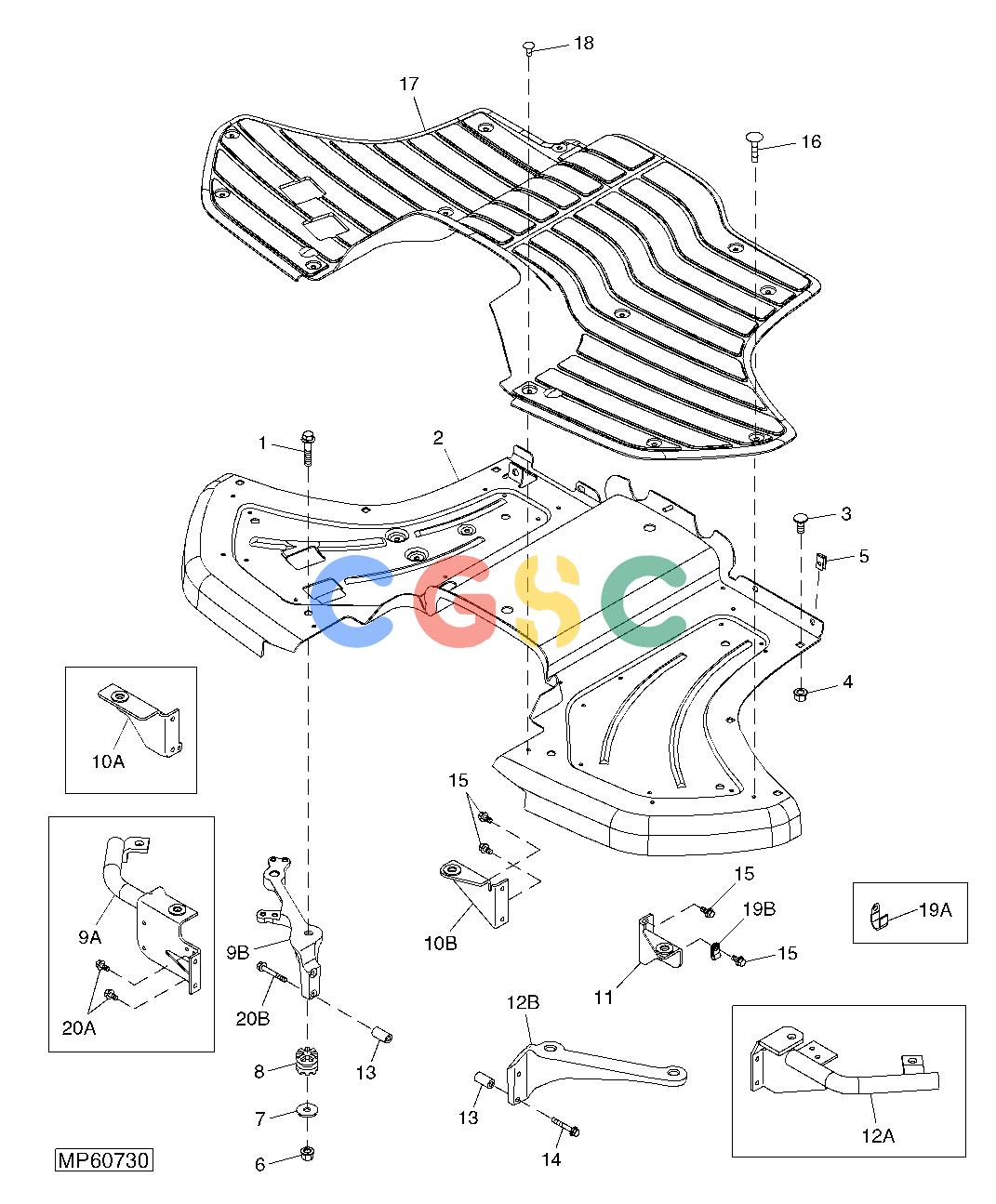

Pos.	Part No	Qty	Parts name	Comments
1.	19M7806	[6]	Screw	M10 X 50 (HS, HEAD MARKED 10.9)
2.	LVA16199	[1]	Platform	(SUB FOR LVA12430 OR LVA13616)
3.	03M7191	[6]	Bolt	M10 X 25
4.	14M7400	[6]	Lock Nut	M10
5.	M84972	[4]	Nut
6.	14M7296	[6]	Flange Nut	M10
7.	24M7101	[6]	Washer	11 X 34 X 3 MM
8.	LVA16084	[6]	Isolator	(SUB FOR M134471)
9A.	LVA10588	[1]	Support
9B.	LVU14303	[1]	Support
10A.	........	[1]	Frame	( LVA10990 NO LONGER AVAILABLE) (SUB LVA12443)
10B.	LVA12443	[1]	Frame
11.	AM120469	[1]	Frame
12A.	LVA11068	[1]	Frame
12B.	LVU14552	[1]	Support
13.	LVU14639	[2]	Spacer	(SUB FOR M132624)
13.	LVU14639	[4]	Spacer	(SUB FOR M132624)
14.	19M7808	[2]	Screw	M10 X 65 (HS, HEAD MARKED 10.9)
14.	19M9128	[2]	Screw	M10 X 75 (HS, HEAD MARKED 10.9)
15.	19M7784	[4]	Screw	M10 X 20 HS, HEAD MARKED 10.9,
16.	M134505	[10]	Plug
17.	LVU12305	[1]	Mat
18.	M71234	[2]	Plug
19A.	R72853	[1]	Clamp
19B.	H22660	[1]	Clip
20A.	19M7784	[2]	Screw	M10 X 20 HS, HEAD MARKED 10.9; USE WITH LVA10588
20B.	19M8977	[2]	Screw	M10 X 85 HS, HEAD MARKED 10.9; USE WITH LVU14303
