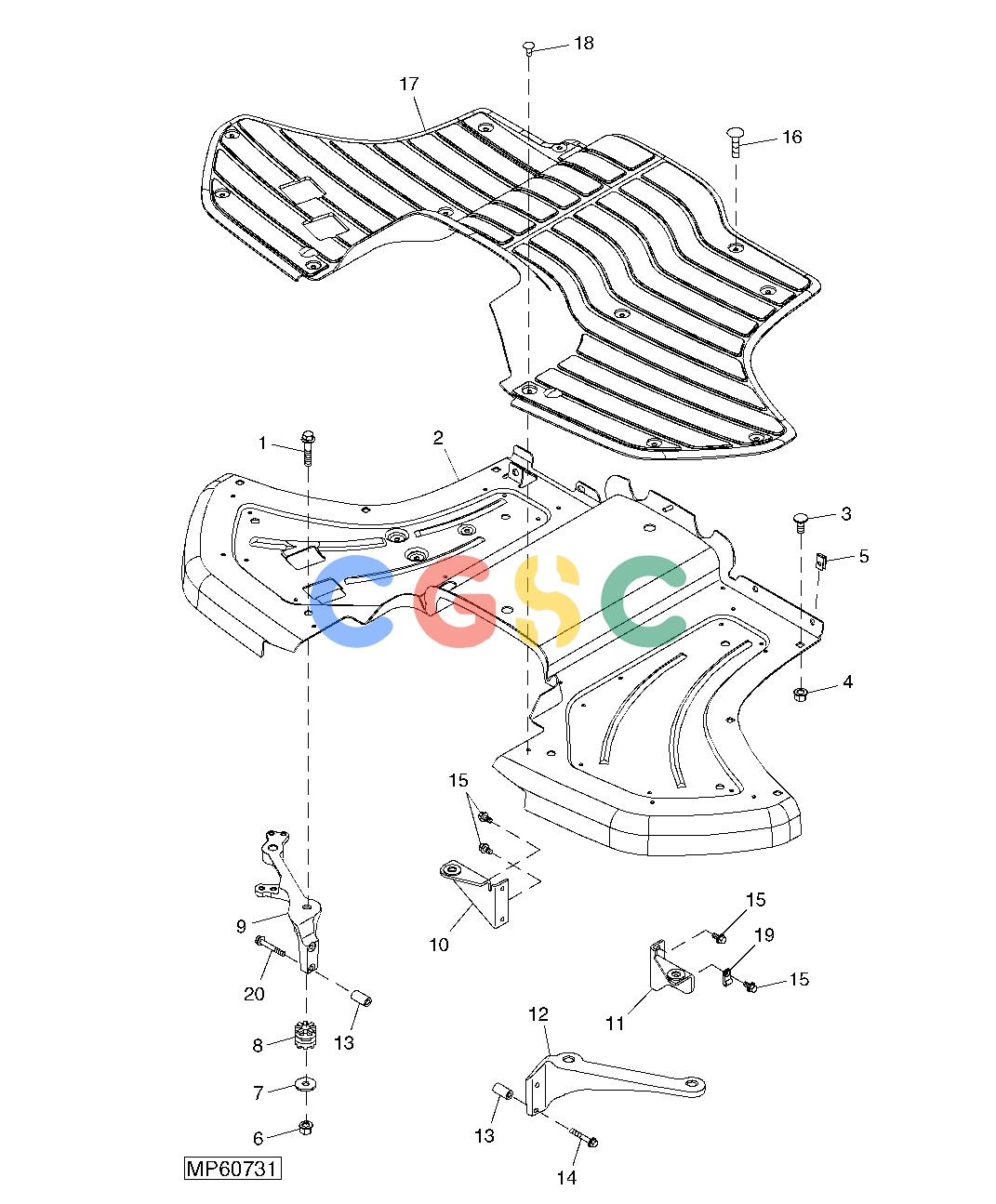

约翰迪尔零件查询110 - BACKHOE, LOADER Footrests (311000 - )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
322 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7806
|
[6] |
Screw
|
|
| 2. |
LVA16199
|
[1] |
Platform
|
|
| 3. |
03M7191
|
[6] |
Bolt
|
|
| 4. |
14M7400
|
[6] |
Lock Nut
|
|
| 5. |
M84972
|
[4] |
Nut
|
|
| 6. |
14M7400
|
[6] |
Lock Nut
|
|
| 7. |
24M7101
|
[6] |
Washer
|
|
| 8. |
LVA16084
|
[6] |
Isolator
|
|
| 9. |
LVU14303
|
[1] |
Support
|
|
| 10. |
LVA12443
|
[1] |
Frame
|
|
| 11. |
AM120469
|
[1] |
Frame
|
|
| 12. |
LVU14552
|
[1] |
Support
|
|
| 13. |
LVU14639
|
[2] |
Spacer
|
|
| 14. |
19M7808
|
[2] |
Screw
|
|
| 14. |
19M9128
|
[2] |
Screw
|
|
| 15. |
19M7784
|
[4] |
Screw
|
|
| 16. |
M134505
|
[2] |
Plug
|
|
| 17. |
LVU12305
|
[1] |
Mat
|
|
| 18. |
R115466
|
[12] |
Plug
|
|
| 19. |
H22660
|
[1] |
Clip
|
|
| 20. |
19M8977
|
[2] |
Screw
|
|
