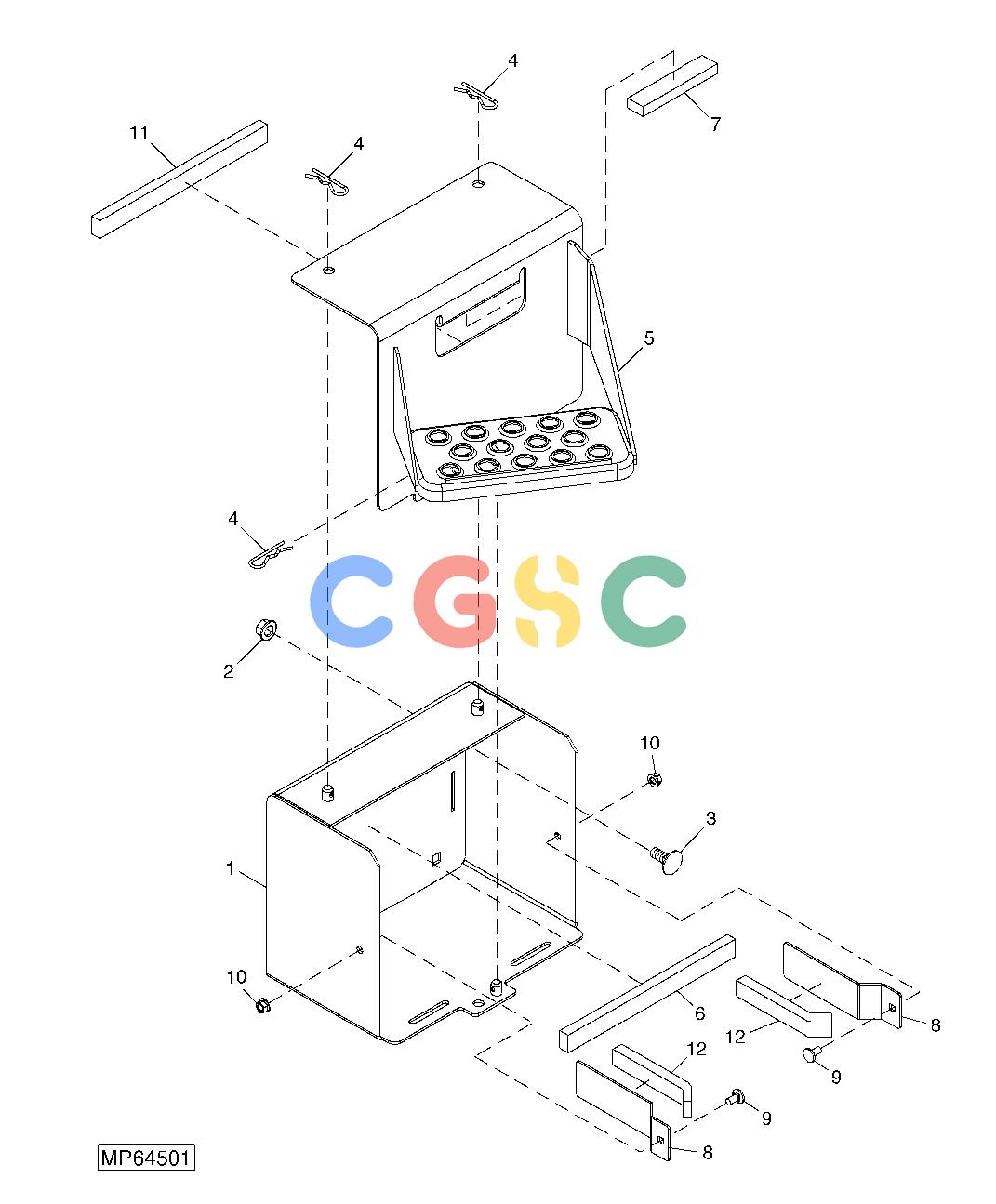

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LVA15252 | [1] | Battery Box | |
| 2. | 14M7299 | [4] | Flange Nut | M12 |
| 3. | 03M7089 | [4] | Bolt | M12 X 30 |
| 4. | A15147 | [3] | Spring Locking Pin | |
| 5. | LVA11062 | [1] | Step | |
| 6. | LVU11934 | [1] | Cushion | |
| 7. | LVU12001 | [1] | Isolator | |
| 8. | LVU19388 | [2] | Bracket | (USE WITH TY26442) |
| 9. | 03M7183 | [2] | Bolt | M8 X 16 |
| 10. | 14M7298 | [2] | Flange Nut | M8 |
| 11. | LVU19793 | [1] | Cushion | |
| 12. | LVU12001 | [2] | Isolator |
