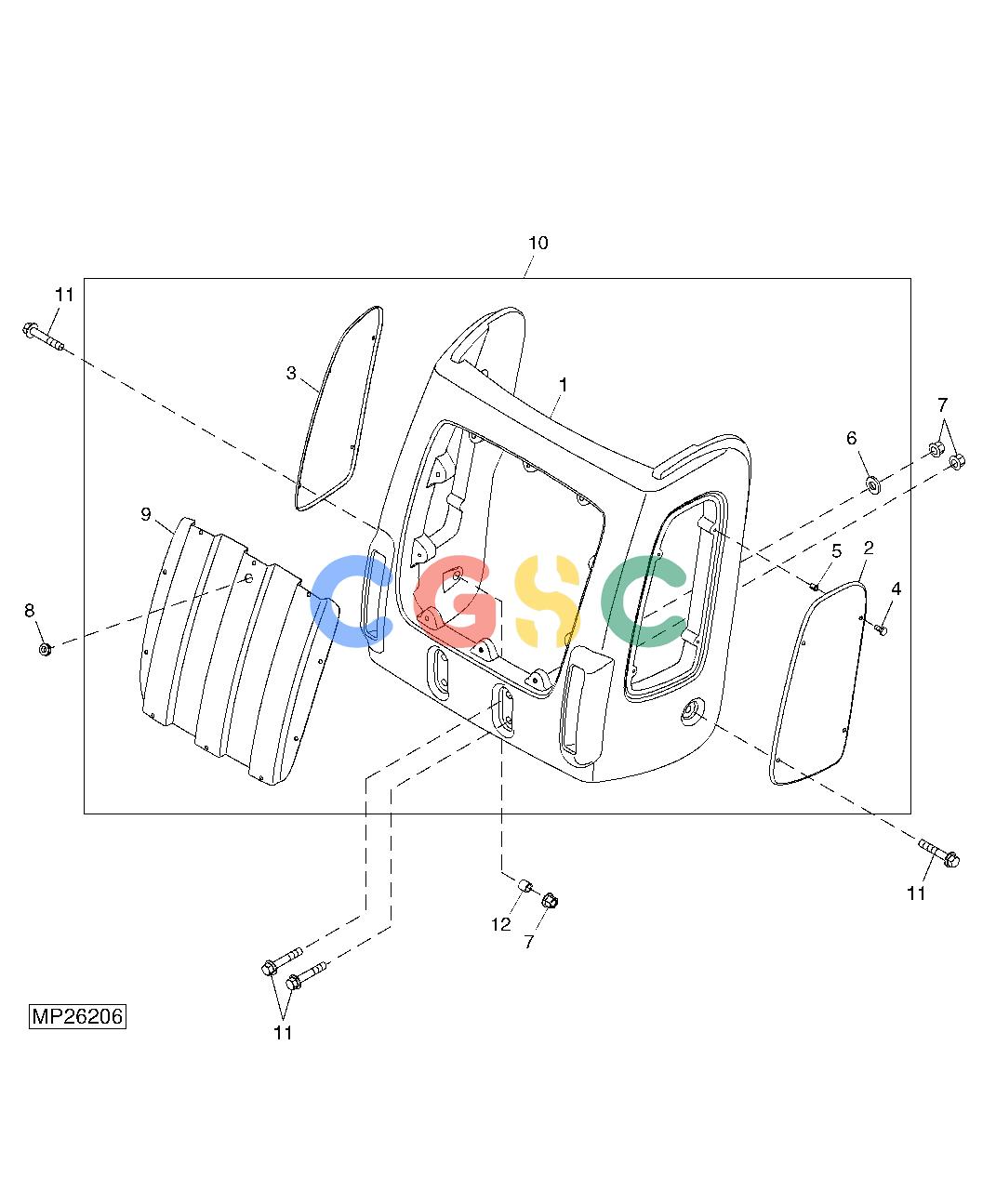

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | ........ | [1] | Grille | |
| 2. | LVU11116 | [1] | Screen | LH |
| 3. | LVU11117 | [1] | Screen | RH |
| 4. | 19M8937 | [18] | Screw | M5 X 10 (HS, HEAD MARKED 10.9) |
| 5. | LVU12840 | [18] | Insert | |
| 6. | 24M7038 | [2] | Washer | 13.500 X 24 X 2.500 MM |
| 7. | 14M7401 | [6] | Lock Nut | M12 |
| 8. | LVU13447 | [1] | Grommet | |
| 9. | LVU11115 | [1] | Screen | FRONT |
| 10. | LVA10639 | [1] | Grille | |
| 11. | 19M7817 | [6] | Screw | M12 X 70 (HS, HEAD MARKED 10.9) |
| 12. | 28H3381 | [2] | Spacer | 0.493" X 0.675" X 5/8" |
