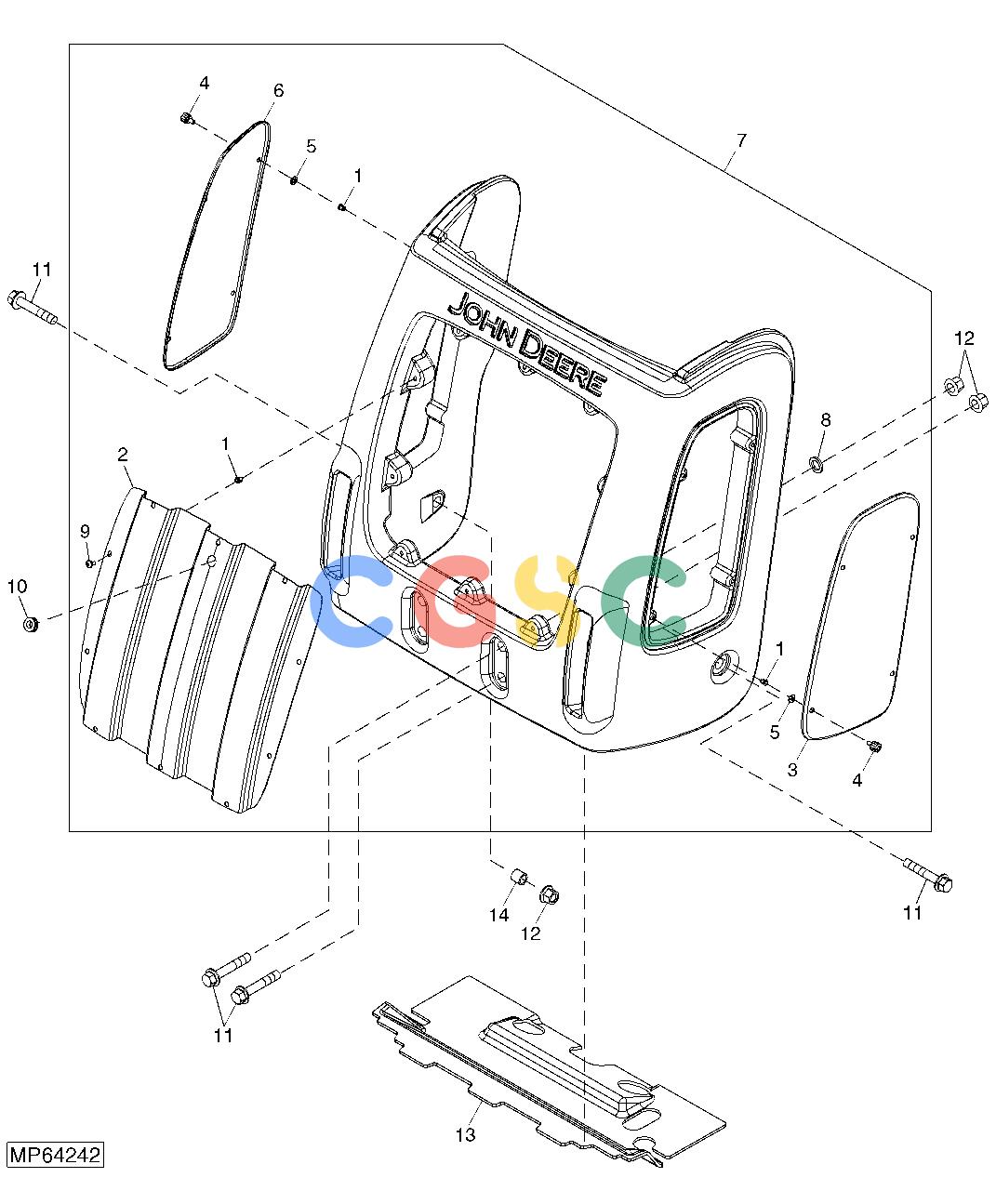

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LVU12840 | [18] | Insert | |
| 2. | LVU11115 | [1] | Screen | |
| 3. | LVU19741 | [1] | Screen | |
| 4. | LVA15415 | [4] | Knurled Thumb Screw | |
| 5. | LVU19744 | [4] | Washer | |
| 6. | LVU19742 | [1] | Screen | |
| 7. | LVA15490 | [1] | Grille Kit | |
| 8. | 24M7038 | [2] | Washer | 13.500 X 24 X 2.500 MM |
| 9. | 19M8937 | [10] | Screw | M5 X 10 |
| 10. | LVU13447 | [1] | Grommet | |
| 11. | 19M7817 | [6] | Screw | M12 X 70 |
| 12. | 14M7401 | [6] | Lock Nut | M12 |
| 13. | LVU19402 | [1] | Shield | |
| 14. | 28H3381 | [2] | Spacer | 0.493" X 0.675" X 5/8" |
