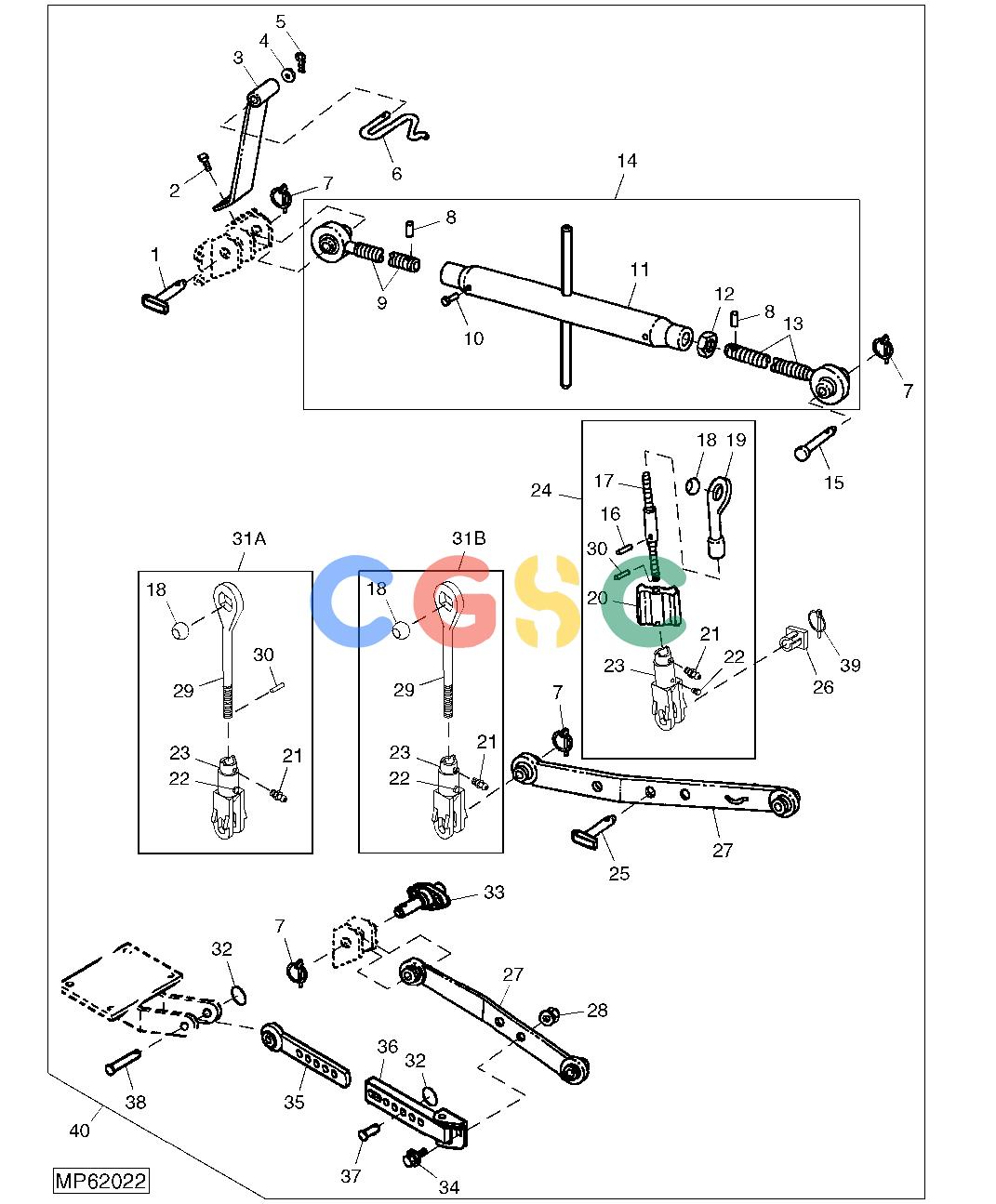

约翰迪尔零件查询110 - BACKHOE, LOADER Three Point Hitch, Sway Blocks, OptionalEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
238 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
LVA15787
|
[1] |
Pin Fastener
|
|
| 2. |
19M7865
|
[2] |
Screw
|
|
| 3. |
LVU15494
|
[1] |
Bracket
|
|
| 4. |
24M7055
|
[1] |
Washer
|
|
| 5. |
11M7081
|
[1] |
Cotter Pin
|
|
| 6. |
CH19220
|
[1] |
Spring
|
|
| 6. |
LVU803931
|
[1] |
Spring
|
|
| 7. |
AR62149
|
[6] |
Quick Lock Pin
|
|
| 8. |
34M7098
|
[2] |
Spring Pin
|
|
| 9. |
LVA14227
|
[1] |
Center Link
|
|
| 10. |
CE17590
|
[2] |
Plug
|
|
| 11. |
LVA14227
|
[1] |
Center Link
|
|
| 12. |
14M7278
|
[1] |
Nut
|
|
| 13. |
AM119698
|
[1] |
Center Link
|
|
| 14. |
AM119874
|
[1] |
Center Link
|
|
| 15. |
CH11409
|
[1] |
Pin Fastener
|
|
| 16. |
34M7141
|
[1] |
Spring Pin
|
|
| 17. |
R243220
|
[1] |
Lift Link
|
|
| 18. |
T21901
|
[1] |
Ball
|
|
| 19. |
R243218
|
[1] |
Lift Link
|
|
| 20. |
RE42504
|
[1] |
Handle
|
|
| 21. |
JD7798
|
[2] |
Lubrication Fitting
|
|
| 22. |
99M7016
|
[2] |
Plug
|
|
| 23. |
R243217
|
[1] |
Yoke Link End
|
|
| 23. |
........
|
[1] |
Link Body
|
|
| 23. |
R243217
|
[1] |
Yoke Link End
|
|
| 24. |
RE243216
|
[1] |
Lift Link
|
|
| 25. |
R120540
|
[1] |
Pin
|
|
| 26. |
R105230
|
[1] |
Retainer
|
|
| 27. |
AM126165
|
[2] |
Draft Link
|
|
| 28. |
14M7328
|
[2] |
Lock Nut
|
|
| 29. |
CE18321
|
[1] |
Lift Link
|
|
| 29. |
CE18871
|
[1] |
Lift Link
|
|
| 30. |
34M7031
|
[1] |
Spring Pin
|
|
| 31A. |
AM126166
|
[1] |
Lift Link
|
|
| 31B. |
LVA14235
|
[1] |
Lift Link
|
|
| 32. |
M84180
|
[4] |
Ring
|
|
| 33. |
M804490
|
[2] |
Pin
|
|
| 34. |
M138943
|
[1] |
Bolt
|
|
| 35. |
AM126867
|
[1] |
Sway Block
|
|
| 36. |
AM126933
|
[1] |
Sway Block
|
|
| 37. |
M136096
|
[2] |
Pin Fastener
|
|
| 38. |
45M7043
|
[2] |
Pin Fastener
|
|
| 39. |
AL14540
|
[1] |
Quick Lock Pin
|
|
| 40. |
LVB25339
|
[1] |
Kit
|
|
