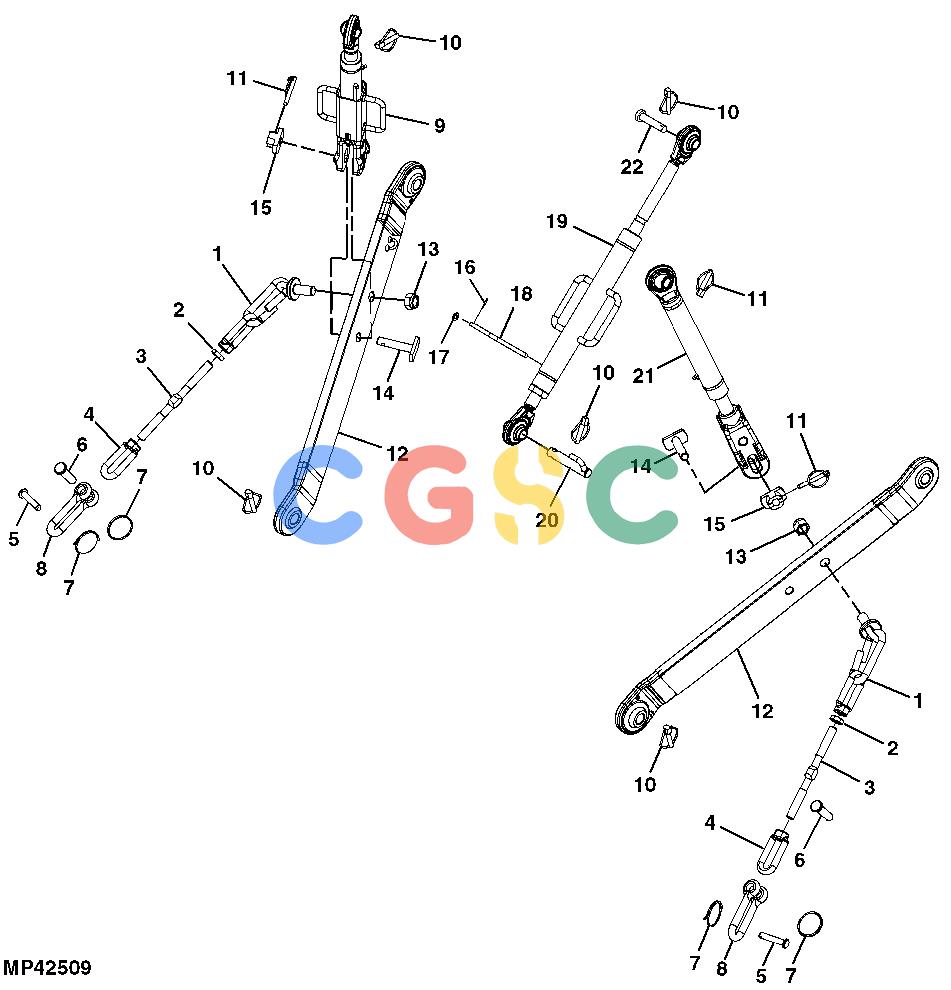

约翰迪尔零件查询110 - BACKHOE, LOADER Three Point Hitch, Sway Chain, OptionalEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RE235929
|
[1] |
Sway Chain
|
|
| 2. |
14M7192
|
[2] |
Nut
|
|
| 3. |
R109168
|
[2] |
Rod
|
|
| 4. |
R109169
|
[2] |
Nut
|
|
| 5. |
45M7043
|
[2] |
Pin Fastener
|
|
| 6. |
45M7058
|
[2] |
Pin Fastener
|
|
| 7. |
M84180
|
[4] |
Ring
|
|
| 8. |
R109171
|
[2] |
Clevis
|
|
| 9. |
LVA14231
|
[1] |
Lift Link
|
|
| 10. |
AR62150
|
[6] |
Quick Lock Pin
|
|
| 11. |
AR60372
|
[2] |
Quick Lock Pin
|
|
| 12. |
LVA14516
|
[2] |
Draft Link
|
|
| 13. |
14M7333
|
[2] |
Lock Nut
|
|
| 14. |
R120540
|
[2] |
Pin
|
|
| 15. |
R105230
|
[2] |
Retainer
|
|
| 16. |
11M7080
|
[1] |
Cotter Pin
|
|
| 17. |
24M7055
|
[1] |
Washer
|
|
| 18. |
LVU17719
|
[1] |
Retainer
|
|
| 19. |
LVA14227
|
[1] |
Center Link
|
|
| 20. |
LVA15787
|
[1] |
Pin Fastener
|
|
| 21. |
LVA14235
|
[1] |
Lift Link
|
|
| 22. |
CH11409
|
[1] |
Pin Fastener
|
|
