约翰迪尔零件查询110 - BACKHOE, LOADER Hydraulic Lift CylinderEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 114 次

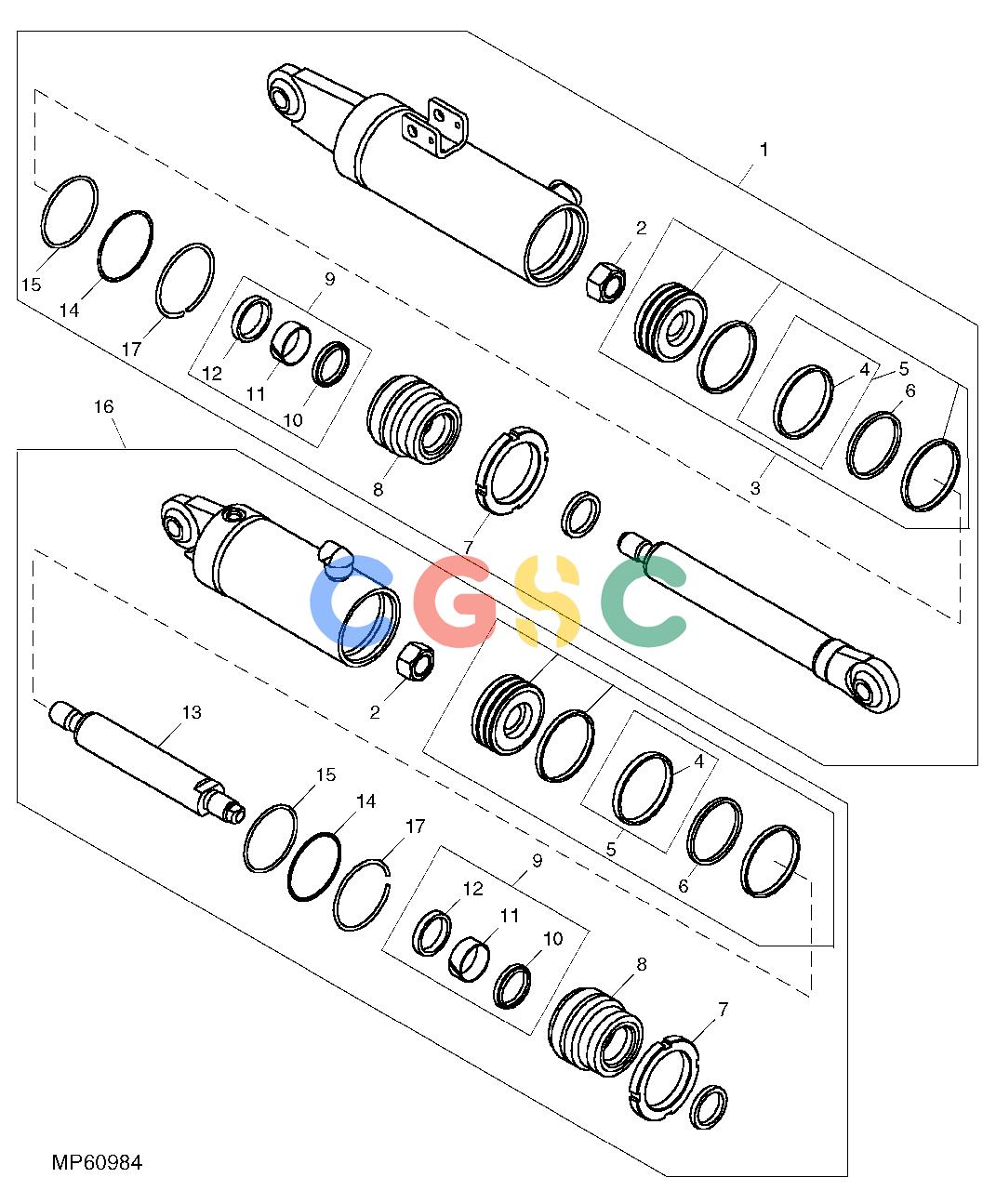

Pos.	Part No	Qty	Parts name	Comments
1.	AH222935	[1]	Hydraulic Cylinder	TOP, (SUB FOR AH168698)
2.	H170537	[1]	Nut
3.	AH139078	[1]	Piston
4.	R98322	[1]	Seal	(A)
5.	AH212092	[1]	Hydraulic Cylinder Kit	BORE SEAL (INCLUDES PARTS MARKED (A))
5.	R83575	[1]	O-Ring	(A)
5.	R91729	[1]	Ring	(A) (USED FOR ASSEMBLY/DISASSEMBLY)
6.	R98323	[1]	Seal	(A)
7.	R81795	[1]	Nut
8.	H172617	[1]	Hydr. Cylinder Rod Guide	(USE WITH AH169236 OR AH168698)
8.	H223150	[1]	Hydr. Cylinder Rod Guide	(USE WITH AH222403)
9.	AH149194	[1]	Hydraulic Cylinder Kit	ROD SEAL (INCLUDES PARTS MARKED (B))
9.	AH148608	[1]	Seal	(B)
9.	AH150453	[1]	Seal	(B)
9.	H155628	[1]	Seal	(B)
10.	H156587	[1]	Seal	(B) WIPER
11.	H157897	[1]	Wear Ring	(B)
12.	H155655	[1]	Seal	(B)
13.	H176337	[1]	Hydraulic Cylinder Rod
14.	R81864	[1]	Back-Up Ring	(A)
15.	T12582	[1]	O-Ring
16.	AH222403	[1]	Hydraulic Cylinder	VERTICAL, (SUB FOR AH169236)
17.	H170216	[1]	Snap Ring
17.	H180787	[1]	Snap Ring	(USE WITH AH222403 OR AH222935)
