约翰迪尔零件查询110 - BACKHOE, LOADER TOP AND TILT KITEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 232 次

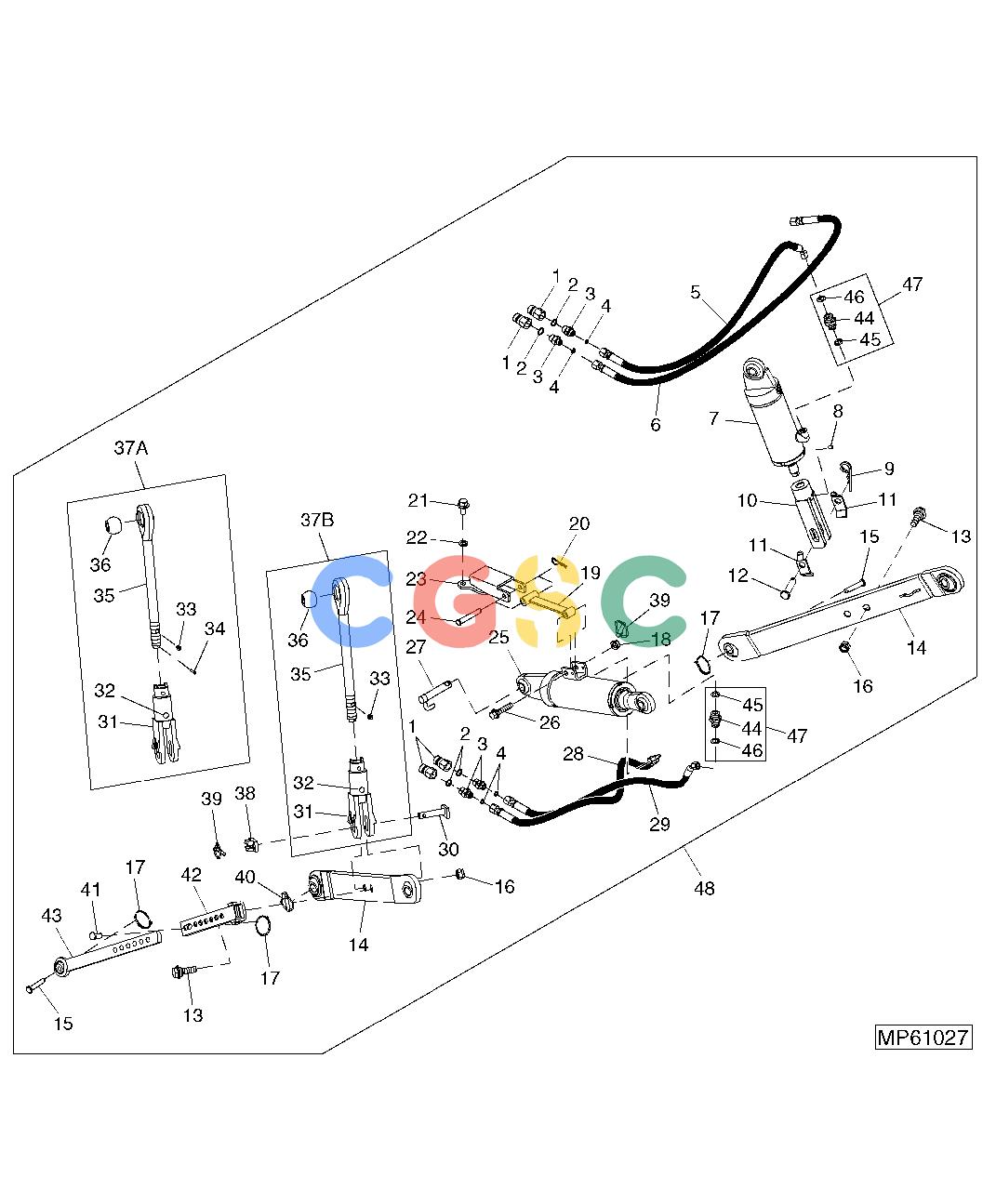

Pos.	Part No	Qty	Parts name	Comments
1.	AR94522	[4]	Hydr. Quick Coupler Plug	MALE
2.	R26375	[4]	O-Ring
3.	38H1171	[4]	Adapter Fitting
4.	T77613	[4]	O-Ring
5.	LVA12309	[1]	Hydraulic Hose - Fabricate	TILT CYLINDER, ROD
5.	LVA11101	[1]	Hydraulic Hose - Fabricate	TILT CYLINDER, ROD (INCLUDED IN LVB25340 KIT)
6.	LVA12310	[1]	Hydraulic Hose - Fabricate	TILT CYLINDER, BORE
6.	LVA11102	[1]	Hydraulic Hose - Fabricate	TILT CYLINDER, BORE (INCLUDED IN LVB25340 KIT)
7.	AH222403	[1]	Hydraulic Cylinder	TILT, (SUB FOR AH169236)
8.	22M7073	[1]	Set Screw	M8 X 12
9.	A15146	[1]	Pin
10.	LVA10946	[1]	Yoke
11.	M90337	[2]	Stop
12.	LVU12459	[1]	Pin Fastener
13.	M138943	[2]	Bolt
14.	AM126165	[2]	Draft Link	(SUB LVA14237, LVA15836 AND LVA15876)
15.	45M7043	[2]	Pin Fastener	12 X 60 MM
16.	14M7328	[2]	Lock Nut	M16
17.	M84180	[2]	Ring
18.	14M7299	[1]	Flange Nut	M12
19.	LVA10970	[1]	Bracket
20.	M40461	[1]	Spring Locking Pin
21.	19M8435	[2]	Screw	M14 X 35 (HS, HEAD MARKED 12.9)
22.	12M7068	[2]	Lock Washer	14 MM
23.	LVA14118	[1]	Bracket	TOP CYLINDER SUPPORT, (SUB FOR LVA10968, THIS APPLICATION)
24.	M804887	[1]	Pin Fastener
25.	AH222935	[1]	Hydraulic Cylinder	TOP, (SUB FOR AH168698)
26.	19M7815	[1]	Screw	M12 X 60 (HS, HEAD MARKED 10.9)
27.	LVA15787	[1]	Pin Fastener	UPPER LINK, (SUB FOR AM127168)
28.	LVA12308	[1]	Hydraulic Hose - Fabricate	TOP CYLINDER, BORE
28.	LVA11044	[1]	Hydraulic Hose - Fabricate	TOP CYLINDER, BORE (INCLUDED IN LVB25340 KIT)
29.	LVA12307	[1]	Hydraulic Hose - Fabricate	TOP CYLINDER, ROD
29.	LVA11043	[1]	Hydraulic Hose - Fabricate	TOP CYLINDER, ROD (INCLUDED IN LVB25340 KIT)
30.	R120540	[1]	Pin
31.	R243217	[1]	Yoke Link End	LIFT, (SUB FOR R105227)
32.	99M7016	[2]	Plug
33.	JD7798	[1]	Lubrication Fitting
34.	34M7031	[1]	Spring Pin	5 X 24 MM
35.	LVA14235	[1]	Lift Link	(SUB FOR CE18321)
36.	T21901	[1]	Ball
37A.	DE19418	[1]	Lift Link	(SUB FOR AM126166)
37B.	LVA14235	[1]	Lift Link	(SUB FOR DE19418)
38.	R105230	[1]	Retainer
39.	AL14540	[1]	Quick Lock Pin
40.	AR62149	[2]	Quick Lock Pin
41.	M136096	[1]	Pin Fastener
42.	AM126933	[1]	Sway Block	FEMALE
43.	AM126867	[1]	Sway Block	MALE
44.	38H5011	[1]	Adapter Fitting
45.	51M7041	[1]	O-Ring	11.300 X 2.200 MM
46.	T77814	[1]	O-Ring
47.	61M5011	[4]	Adapter Fitting
48.	LVB25340	[1]	Kit	(WHOLE GOODS) TOP AND TILT 3 POINT HITCH
