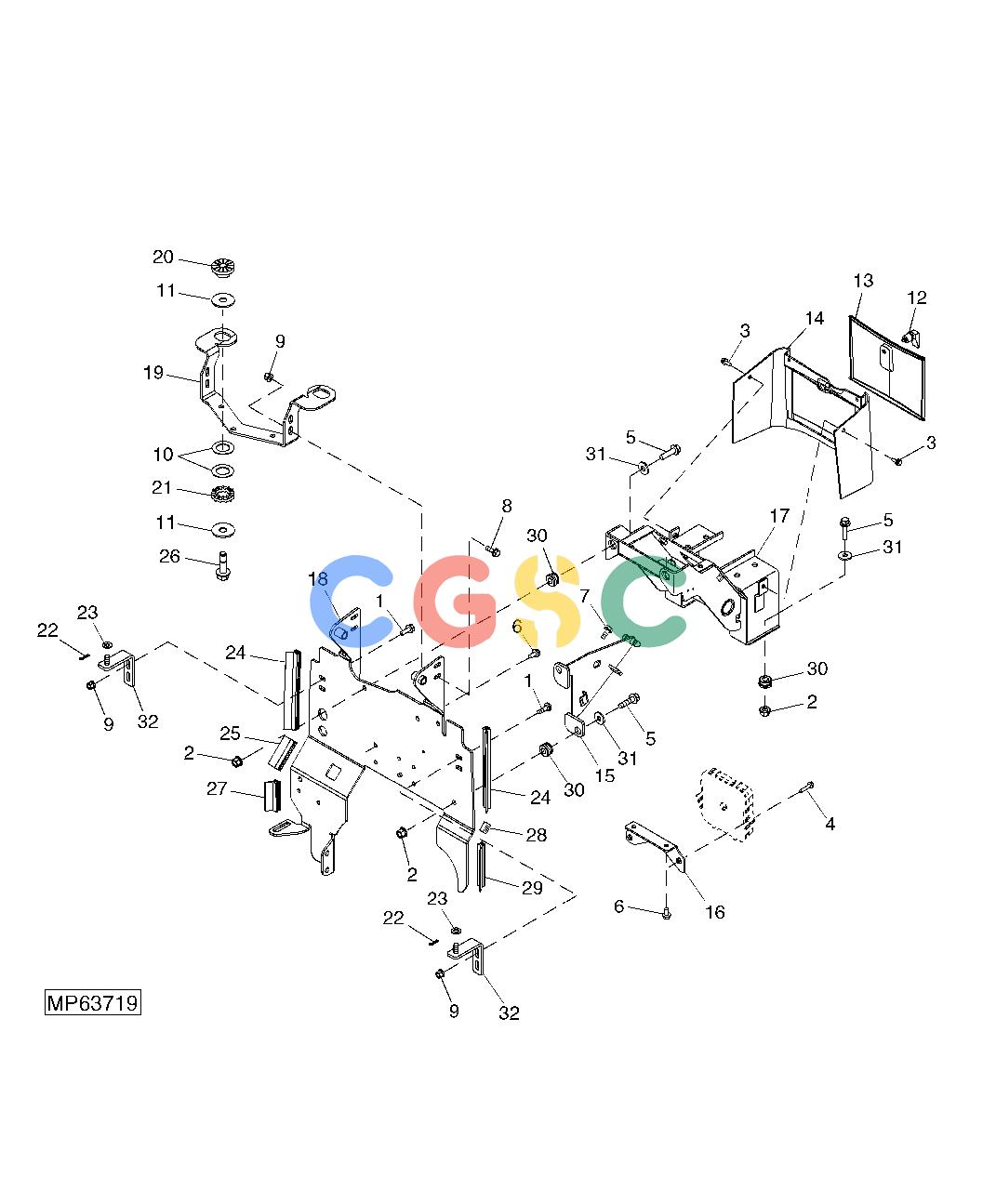

Pos.	Part No	Qty	Parts name	Comments
1.	03M7184	[4]	Bolt	M8 X 20
2.	14M7400	[4]	Lock Nut	M10
3.	19M7775	[2]	Screw	M6 X 16 (HS, HEAD MARKED 10.9)
4.	19M7796	[2]	Screw	M6 X 30 (HS, HEAD MARKED 10.9)
5.	19M7804	[6]	Screw	M10 X 40 (HS, HEAD MARKED 10.9)
6.	19M7865	[8]	Screw	M8 X 16 (HS, HEAD MARKED 10.9)
7.	19M7866	[5]	Screw	M8 X 20 (HS, HEAD MARKED 10.9)
8.	19M7867	[4]	Screw	M8 X 25 (HS, HEAD MARKED 10.9)
9.	14M7396	[8]	Lock Nut	M8
10.	24H1630	[4]	Washer	1-1/8" X 1-7/8" X 0.060"
11.	24M7315	[4]	Washer	17 X 50 X 3 MM
12.	M133730	[1]	Latch
13.	M133729	[1]	Cover
14.	LVU10922	[1]	Cowl
15.	LVA14540	[1]	Firewall	(ALSO ORDER LVA14541 ) (SUB FOR LVA13579)
16.	LVA11261	[1]	Bracket
17.	LVA11046	[1]	Frame
18.	LVA14540	[1]	Firewall	(ALSO ORDER LVA14541 ) (SUB FOR LVA13482)
19.	LVU15527	[1]	Bracket
20.	LVU12088	[2]	Bushing
21.	LVU12089	[2]	Isolator
22.	M112711	[2]	Spring Pin
23.	24M7055	[2]	Washer	8.400 X 16 X 1.600 MM
24.	LVU12203	[2]	Isolator
25.	LVU12204	[1]	Isolator
26.	LVU13556	[2]	Bolt	FUEL TANK MOUNTING
27.	LVU12325	[1]	Isolator
28.	LVU12326	[1]	Isolator
29.	LVU12327	[1]	Isolator
30.	LVA16083	[6]	Isolator	(SUB FOR M133098)
31.	M133440	[6]	Washer
32.	LVA12927	[2]	Bracket
