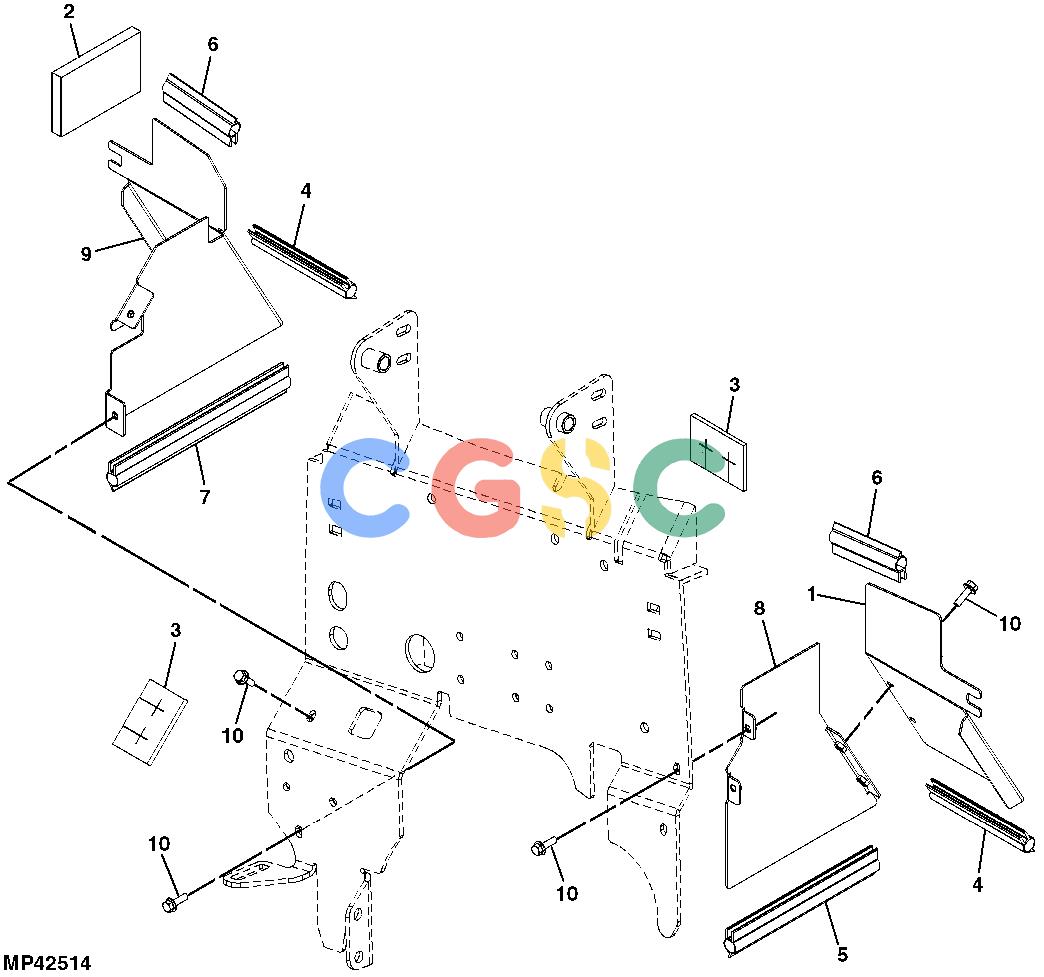

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | LVU18463 | [1] | Heat Shield | |
| 2. | LVU17433 | [1] | Heat Shield | |
| 3. | LVU16014 | [2] | Seal | |
| 4. | ........ | [1] | Seal | CTL 129 MM, MF LVA14318 |
| 5. | ........ | [1] | Seal | CTL 199 MM, MF LVA14318 |
| 6. | ........ | [1] | Seal | CTL 92 MM, MF LVA14318 |
| 7. | ........ | [1] | Seal | CTL 238 MM, MF LVA14318 |
| 8. | LVA14085 | [1] | Heat Shield | |
| 9. | LVA14084 | [1] | Heat Shield | |
| 10. | 19M7862 | [6] | Screw | M6 X 20 |
