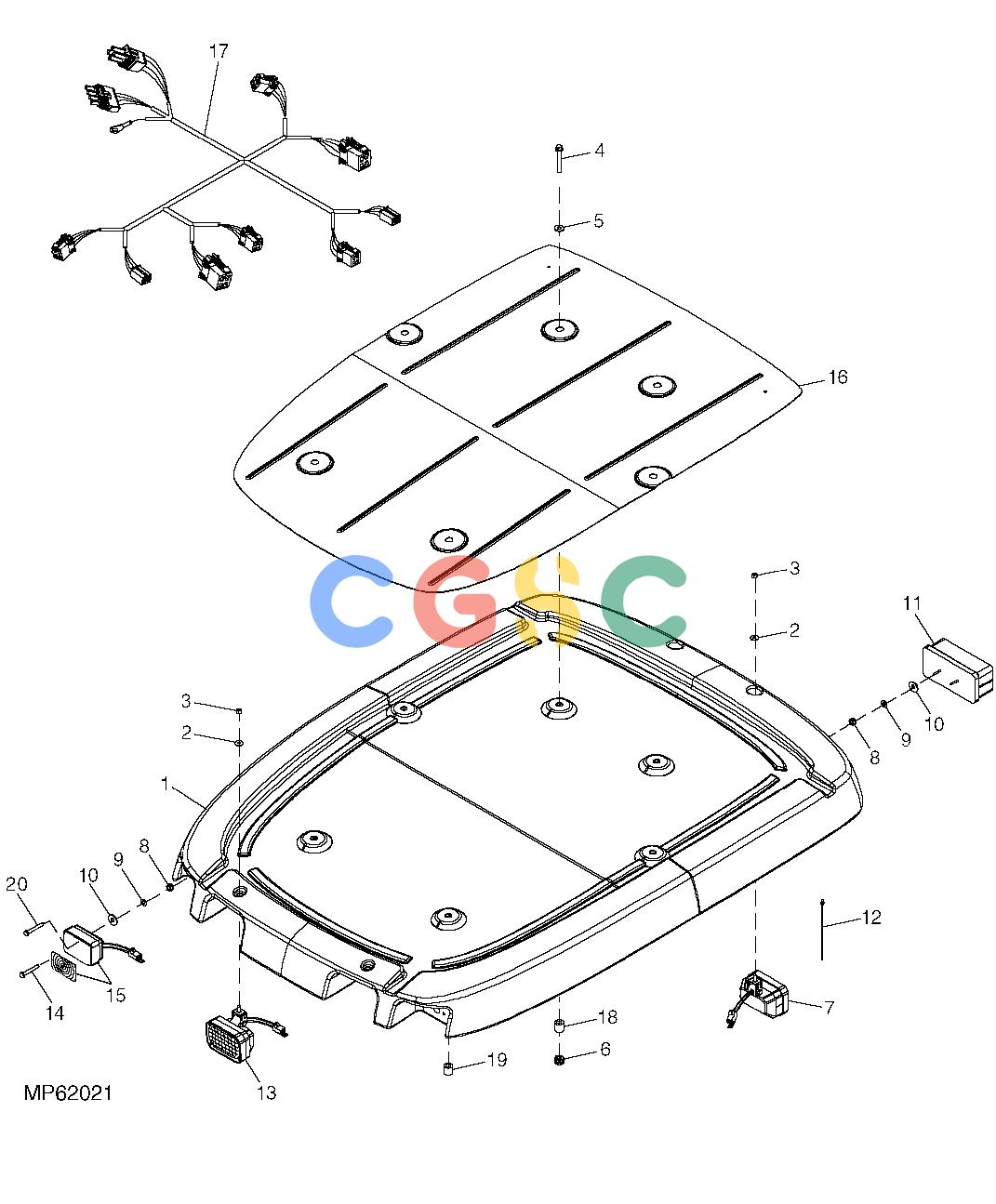

约翰迪尔零件查询110 - BACKHOE, LOADER CanopyEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
170 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
LVU11258
|
[1] |
Canopy
|
|
| 2. |
24M7298
|
[2] |
Washer
|
|
| 3. |
14M7426
|
[2] |
Lock Nut
|
|
| 4. |
19M7810
|
[6] |
Screw
|
|
| 5. |
M133440
|
[6] |
Washer
|
|
| 6. |
LVA16083
|
[6] |
Isolator
|
|
| 7. |
LVA15076
|
[2] |
Headlight
|
|
| 8. |
14M7375
|
[8] |
Flange Nut
|
|
| 9. |
12M7060
|
[8] |
Washer
|
|
| 10. |
24M7138
|
[8] |
Washer
|
|
| 11. |
AT159359
|
[2] |
Stop Light
|
|
| 11. |
AD2062R
|
[1] |
Bulb
|
|
| 11. |
AR48041
|
[1] |
Bulb
|
|
| 12. |
LVU12447
|
[24] |
Tie Band
|
|
| 13. |
LVA15076
|
[2] |
Headlight
|
|
| 14. |
37M7268
|
[4] |
Screw
|
|
| 15. |
RE58641
|
[2] |
Lamp
|
|
| 15. |
AD2062R
|
[2] |
Bulb
|
|
| 16. |
LVU14530
|
[1] |
Sheet
|
|
| 17. |
LVA10961
|
[1] |
Wiring Harness
|
|
| 18. |
LVU11259
|
[2] |
Spacer
|
|
| 19. |
LVU11260
|
[4] |
Spacer
|
|
| 20. |
19M7920
|
[4] |
Cap Screw
|
|
