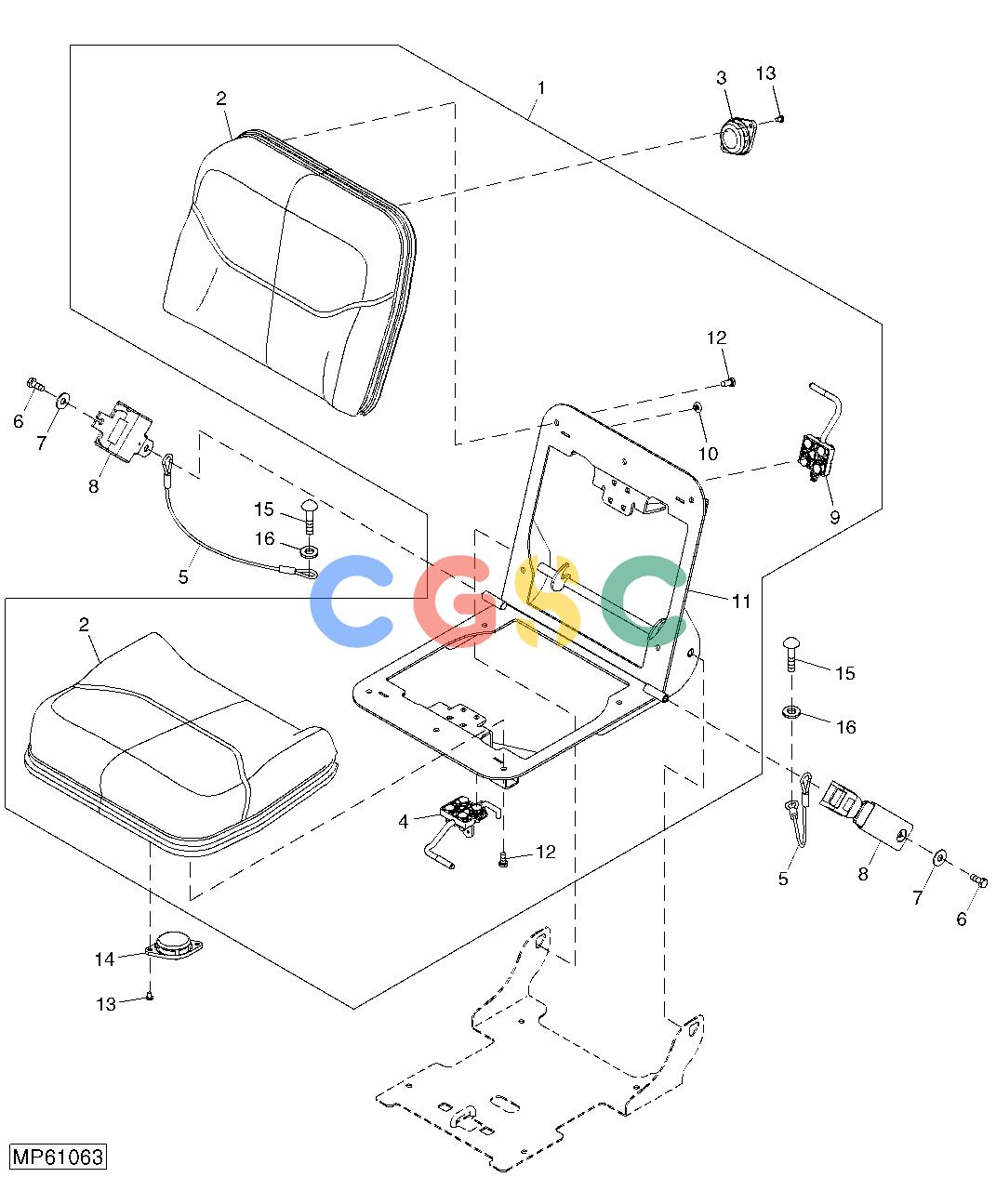

约翰迪尔零件查询110 - BACKHOE, LOADER Seat Components (312165 - )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
251 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
LVA13608
|
[1] |
Seat Kit
|
|
| 2. |
LVA13612
|
[2] |
Cushion
|
|
| 3. |
AET10449
|
[1] |
Switch
|
|
| 4. |
LVA13614
|
[1] |
Latch
|
|
| 5. |
LVU16560
|
[2] |
Cable
|
|
| 6. |
19M7402
|
[2] |
Cap Screw
|
|
| 7. |
24H1226
|
[2] |
Washer
|
|
| 8. |
LVA12335
|
[1] |
Belt Kit
|
|
| 8. |
LVA18230
|
[1] |
Seat Belt
|
|
| 9. |
LVA13613
|
[1] |
Latch
|
|
| 10. |
LVU13980
|
[8] |
Plug
|
|
| 11. |
LVA13615
|
[1] |
Frame
|
|
| 12. |
19H1648
|
[8] |
Cap Screw
|
|
| 13. |
21H1352
|
[4] |
Screw
|
|
| 14. |
AET10449
|
[1] |
Switch
|
|
| 15. |
19M8832
|
[2] |
Screw
|
|
| 16. |
24H1654
|
[2] |
Washer
|
|
