约翰迪尔零件查询110 - BACKHOE, LOADER Seat Suspension ( - 312164)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 1009 次

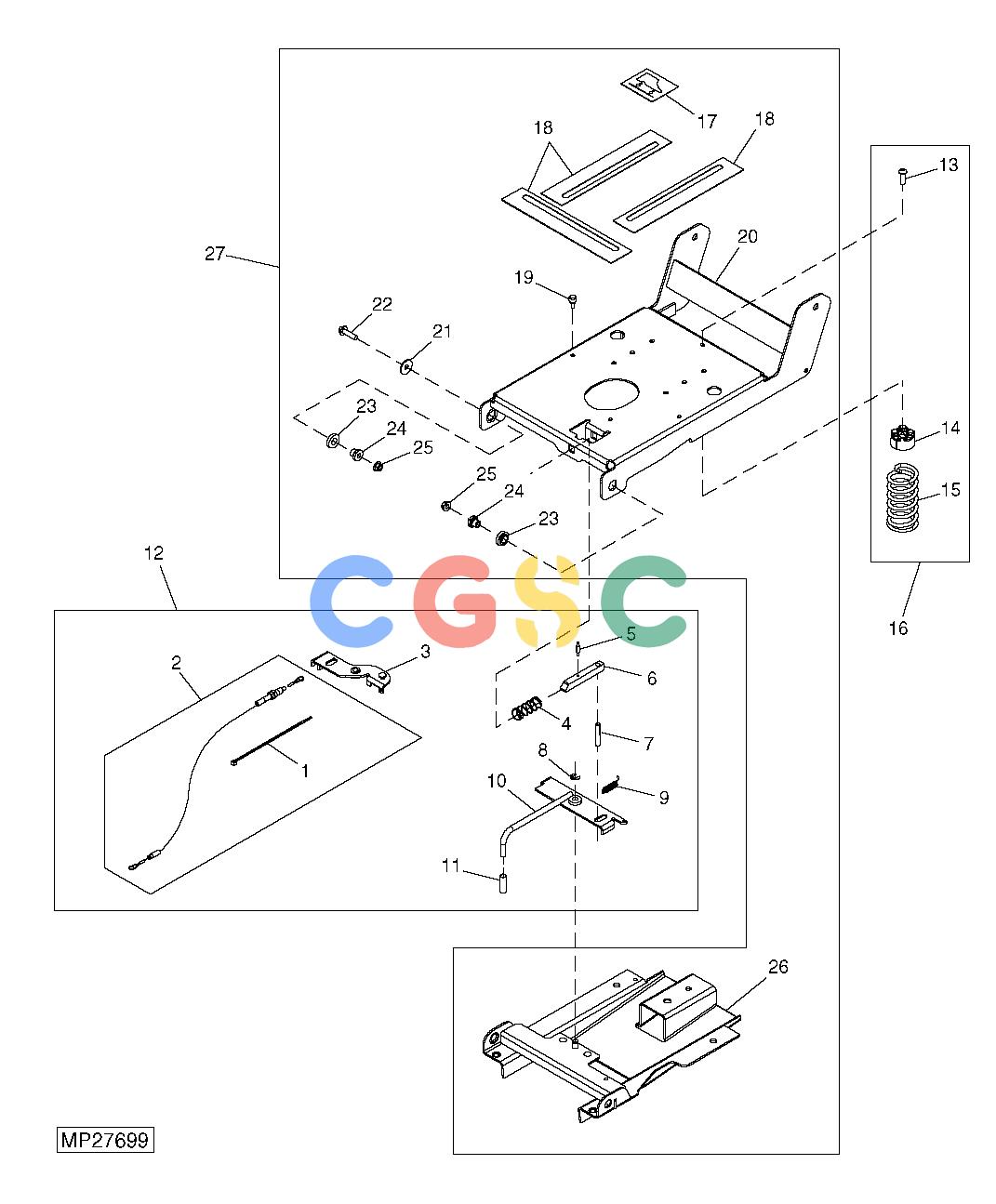

Pos.	Part No	Qty	Parts name	Comments
1.	R44302	[4]	Tie Band	(A)
2.	LVA12472	[1]	Cable	(A)
3.	........	[1]	Latch	(A)
4.	........	[2]	Compression Spring	(A)
5.	25H750	[2]	Groove Pin	3/16" X 1-1/4" (A)
6.	........	[2]	Pin	(A) LATCH
7.	25H125	[2]	Groove Pin	5/16" X 1-3/4" (A)
8.	R72655	[2]	Snap Ring	(A)
9.	........	[2]	Extension Spring	(A)
10.	........	[1]	Bracket	(A) PIVOT
11.	R126831	[1]	Grip	(A) (SUB FOR LVU14215)
12.	LVA12473	[1]	Seat Adjustment Cable Kit	(INCLUDES PARTS MARKED (A))
13.	19H3807	[2]	Screw	1/4" X 3/4" (B) (SUB FOR F1114512)
14.	........	[2]	Retainer	(B)
15.	........	[2]	Spring	(B)
16.	LVA12471	[1]	Seat Suspension	(INCLUDES PARTS MARKED (B))
17.	LVU14223	[1]	Label	(C) STEP
18.	LVU14224	[3]	Tape	(C) NO-SLIP
19.	GC00389	[2]	Bumper	(C) (SUB FOR LVU14225)
20.	........	[1]	Housing	(C) UPPER
21.	24M7298	[2]	Washer	8.400 X 25 X 2 MM (C)
22.	19M7868	[2]	Screw	M8 X 30 (C) (HS, HEAD MARKED 10.9)
23.	........	[2]	Washer	(C)
24.	........	[2]	Bushing	(C) PIVOT
25.	14M7396	[2]	Lock Nut	M8 (C)
26.	........	[1]	Housing	(C) LOWER
27.	LVA12477	[1]	Seat Suspension	PIVOT (INCLUDES PARTS MARKED (C)) (SUB LVA13329, LVA13330, LVA13915, LVA13938, (4) 24M7178, (2) 19M7866, (2) 19M7867, (2) 24H1654, (2) 19M8832 AND (12) LVU13980 (NLA))
