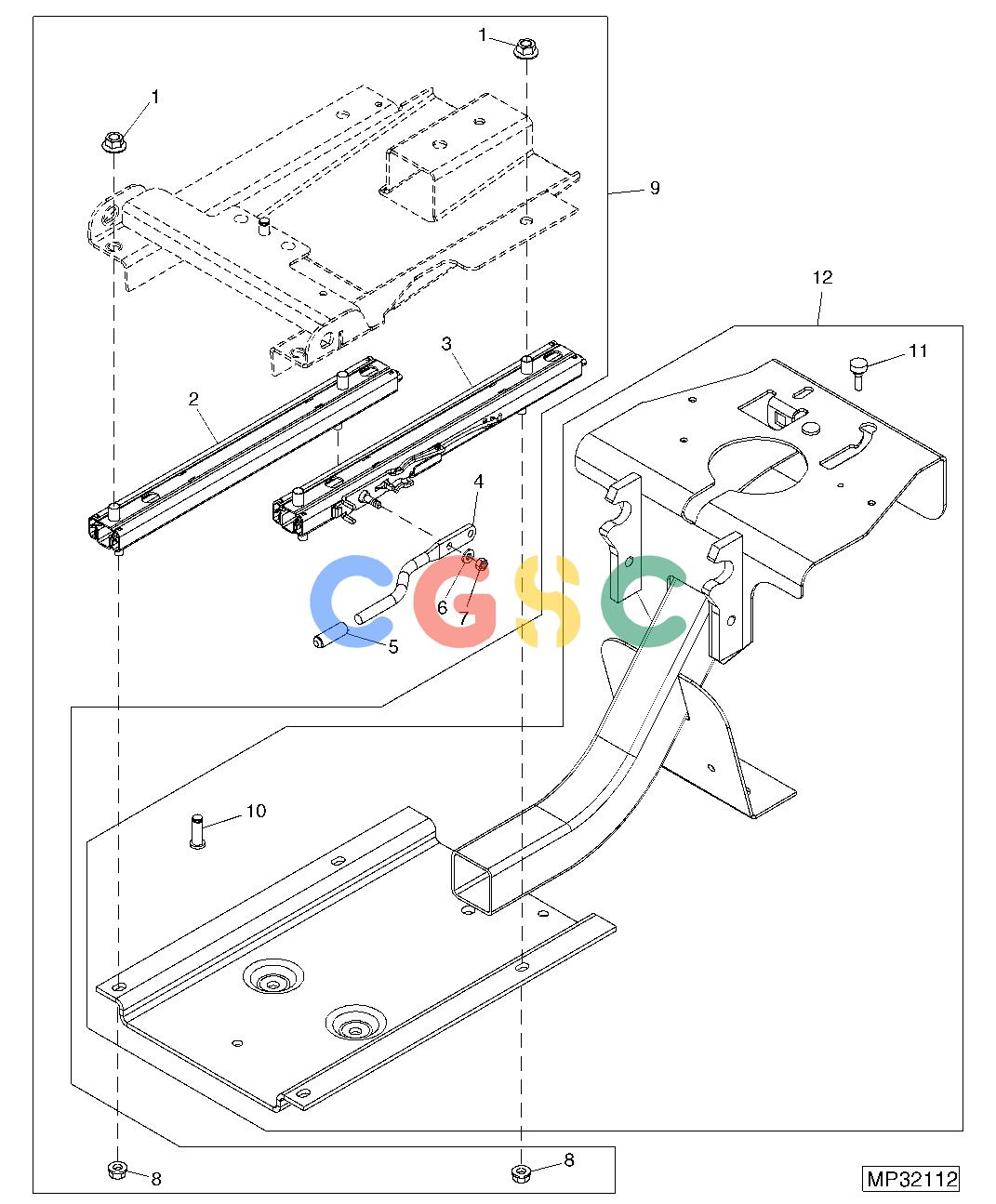

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14M7400 | [4] | Lock Nut | M10 |
| 2. | ........ | [1] | Adjuster | SLAVE |
| 3. | ........ | [1] | Adjuster | LATCH |
| 4. | ........ | [1] | Handle | |
| 5. | R126831 | [1] | Grip | ADJUSTER HANDLE (SUB FOR LVU14215) |
| 6. | ........ | [1] | Washer | |
| 7. | 14M7272 | [1] | Nut | M6 |
| 8. | 14M7396 | [4] | Lock Nut | M8 |
| 9. | LVA12470 | [1] | Seat Slide Track Kit | |
| 10. | 25H750 | [1] | Groove Pin | 3/16" X 1-1/4" |
| 11. | GC00389 | [2] | Bumper | |
| 12. | LVA13329 | [1] | Seat | (ALSO ORDER LVA13330, LVA13915, LVA13938, (4) 24M7178, (2) 19M7866, (2) 19M7867, (2) 24H1654, (2) 19M8832 AND (12) LVU13980 ) (SUB FOR LVA12478) |
