约翰迪尔零件查询110 - BACKHOE, LOADER Seat Suspension (312165 - )EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 425 次

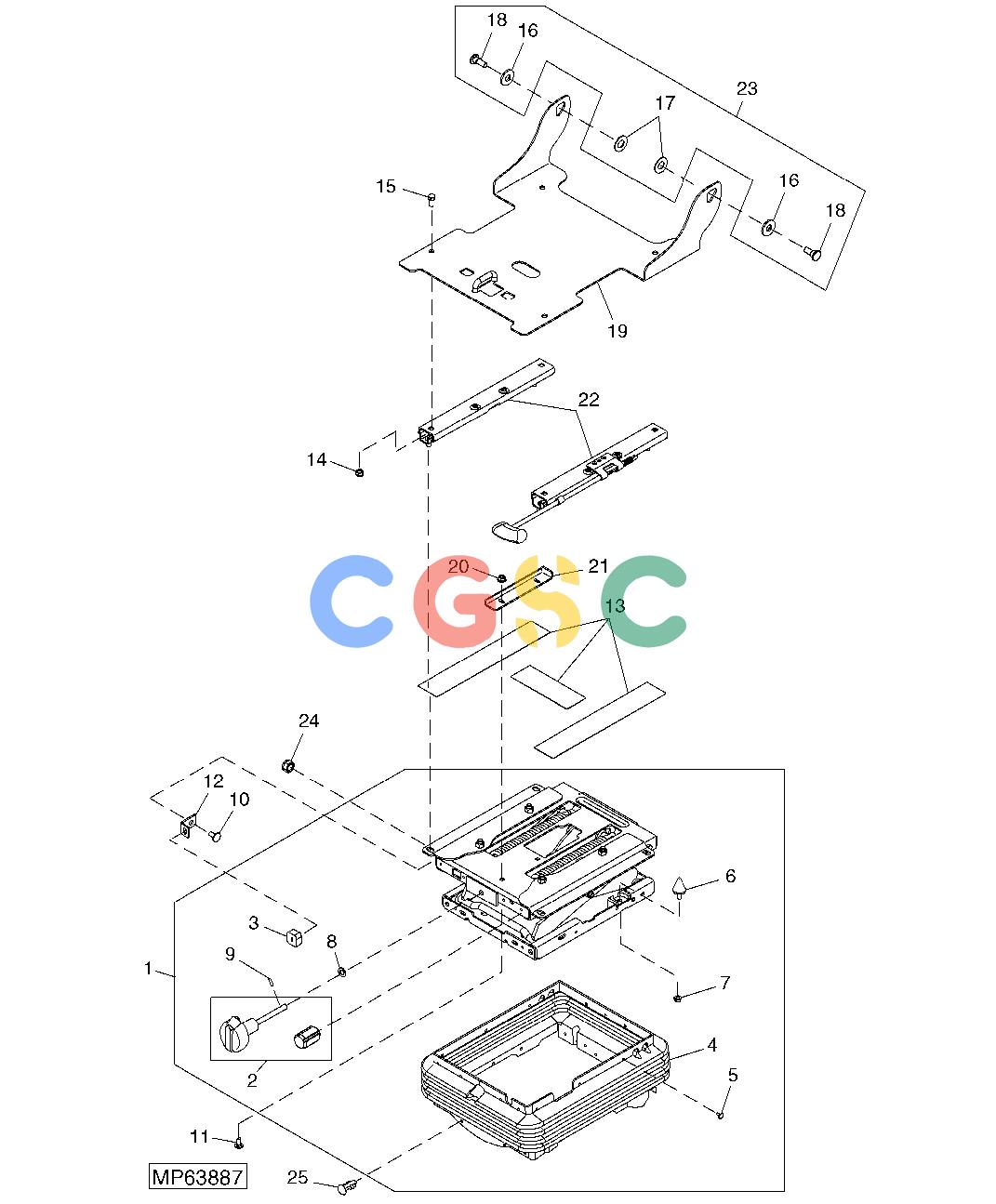

Pos.	Part No	Qty	Parts name	Comments
1.	LVA13637	[1]	Seat Suspension	NLA; ORDER LVA15848
1.	LVA15848	[1]	Seat Suspension	(INCLUDES PARTS MARKED (A))
2.	RE233566	[1]	Seat Knob Kit	(A) KNOB
3.	T55224	[1]	Bumper	(A) (SUB FOR LVU13978)
4.	LVU13903	[1]	Boot	NLA; ORDER LVA18107
4.	LVA18107	[1]	Seat Suspension Boot Kit	(A)
5.	LVU13979	[13]	Plug	(A)
6.	LVU13977	[2]	Bumper	(A)
7.	14M7303	[2]	Flange Nut	M6 (A)
8.	24M7096	[1]	Washer	10.500 X 18 X 1.600 MM (A)
9.	34M7094	[1]	Spring Pin	4 X 16 MM (A)
10.	03H1539	[1]	Bolt	5/16" X 5/8" (A)
11.	03H1778	[2]	Bolt	1/4" X 5/8"
12.	LVU16558	[1]	Bracket
13.	LVA13610	[1]	Anti-Skid Pad
14.	14M7426	[4]	Lock Nut	M8
15.	19M7932	[4]	Cap Screw	M8 X 16 (HS, HEAD MARKED 10.9)
16.	........	[2]	Spacer
17.	........	[2]	Thrust Washer
18.	........	[2]	Link
19.	LVA13609	[1]	Support
20.	R40694	[4]	Flange Nut
21.	LVU16559	[1]	Plate
22.	LVA12327	[1]	Seat Slide Track Kit	(A)
23.	LVA13723	[1]	Hardware Kit
24.	E50101	[1]	Lock Nut	7.925 MM (A)
25.	LVU13980	[12]	Plug	(A)
