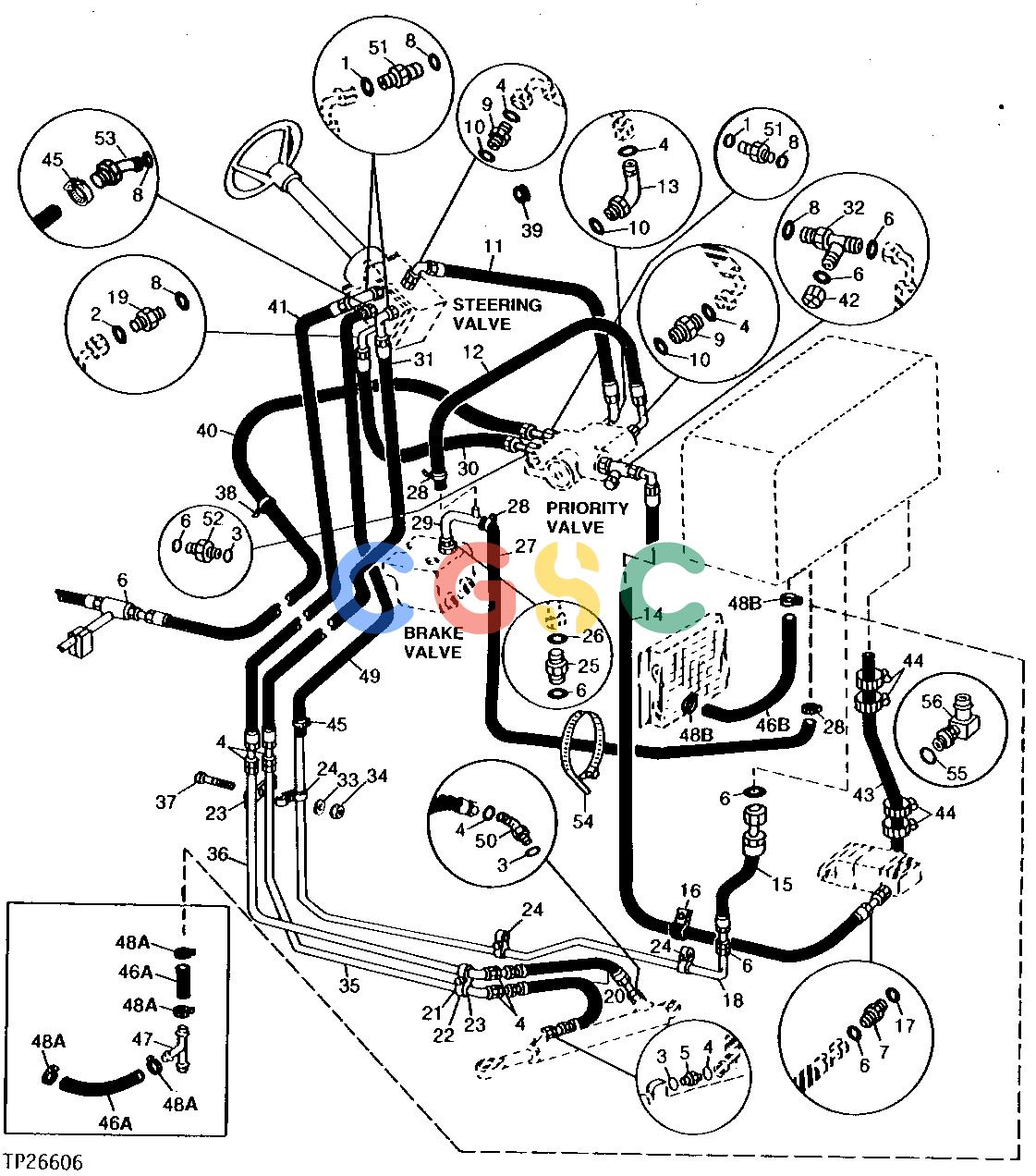

Pos.	Part No	Qty	Parts name	Comments
1.	T77613	[3]	O-Ring
2.	T77857	[1]	O-Ring
3.	R26448	[3]	O-Ring
4.	T77814	[9]	O-Ring
4.	T77613	[AR]	O-Ring	(TWO USED MFWD, ONE USED WITHOUT MFWD) (USE WITH 38H1004)
5.	38H1168	[1]	Adapter Fitting	(ROD END) (USE WITH AT100471)
5.	38H1160	[1]	Adapter Fitting	(ROD END) (USE WITH AT114474)
6.	T77857	[8]	O-Ring
7.	38H1161	[1]	Adapter Fitting
8.	R26375	[6]	O-Ring
9.	38H1159	[2]	Adapter Fitting
10.	R28782	[3]	O-Ring
11.	AT101577	[1]	Hydraulic Hose - Fabricate
12.	AT101576	[1]	Hydraulic Hose - Fabricate	9/16" X 445 MM (17-1/2") X 1/4"
13.	38H1003	[1]	Elbow Fitting
14.	AT106519	[1]	Hydraulic Hose - Fabricate	13/16" X 1975 MM (77-3/4") X 13/16"
15.	AT101779	[1]	Hydraulic Hose - Fabricate	13/16" X 445 MM (17-1/2") X 13/16"
16.	T78787	[1]	Clamp	(SUB FOR T24959, THIS APPLICATION)
17.	R26375	[1]	O-Ring	(SUB FOR R26906)
18.	AT100548	[1]	Line
19.	AT132903	[1]	Check Valve	(SUB FOR AT100507, AT83307 AND AT107698 ) (ALSO ORDER R26375 AND T77857)
20.	AT100472	[1]	Hydraulic Hose	(HEAD END) (SUB AT114474, THIS APPLICATION ) (ALSO ORDER R26448, T77613 AND 38H1004)
20.	AT100471	[1]	Hydraulic Hose - Fabricate	(ROD END) (SUB AT114474, THIS APPLICATION ) (ALSO ORDER R26448, T77613, 38H1004 AND 38H1160)
20.	AT114474	[2]	Hydraulic Hose - Fabricate	(HEAD AND ROD END)
21.	19M7864	[2]	Screw	M8 X 12
22.	24H1136	[2]	Washer	11/32" X 11/16" X 0.065"
23.	R42009	[3]	Clamp
24.	R46415	[3]	Clamp	(SUB FOR H75541)
