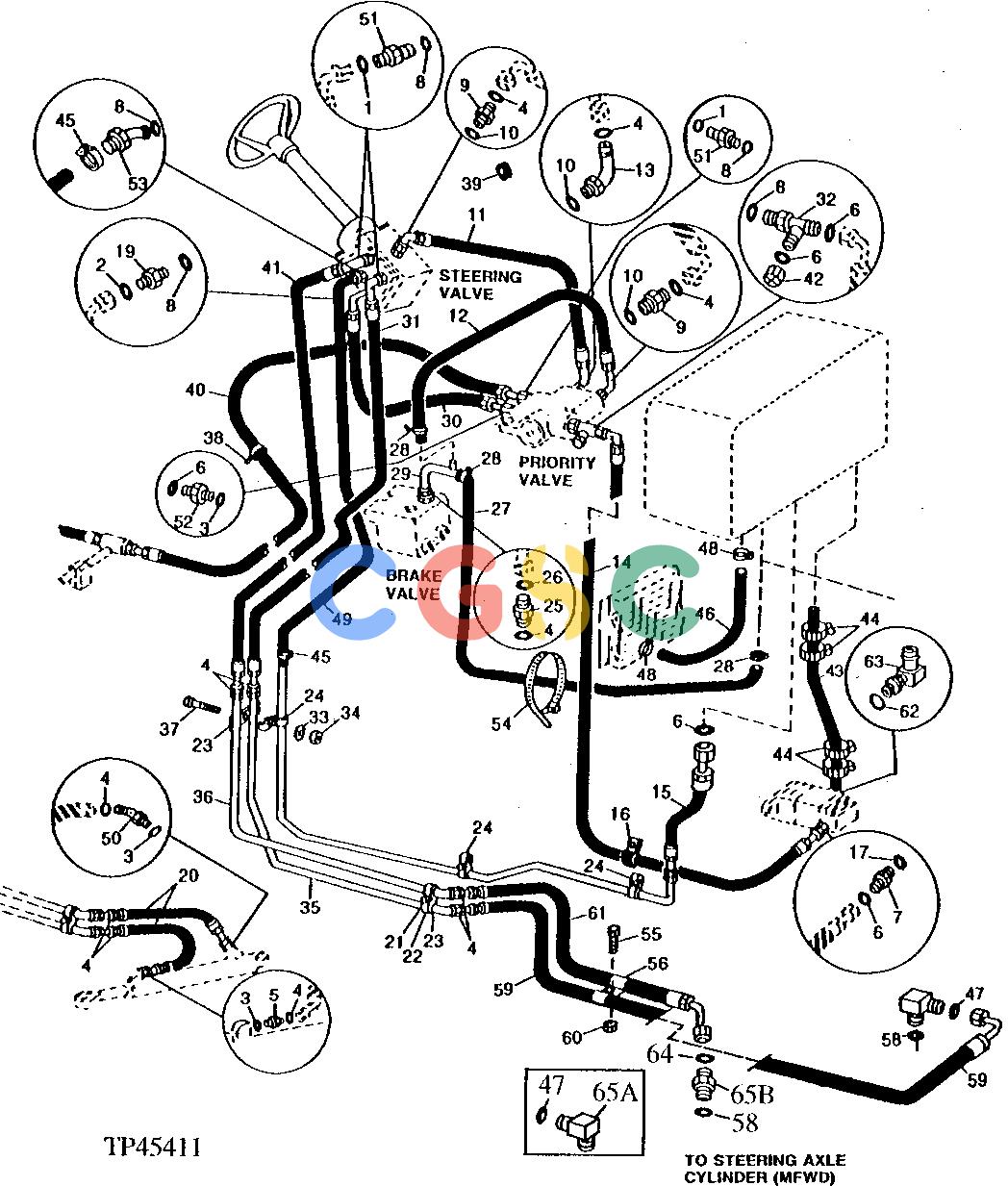

约翰迪尔零件查询210C - BACKHOE, LOADER Steering Hydraulic Hoses And Lines (737488 - )EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 307 次

Pos.	Part No	Qty	Parts name	Comments
1.	T77613	[3]	O-Ring
2.	T77857	[1]	O-Ring
3.	R26448	[3]	O-Ring
4.	T77814	[9]	O-Ring
4.	T77814	[8]	O-Ring
4.	T77814	[1]	O-Ring	(WITHOUT MFWD) (SUB FOR T77613, THIS APPLICATION (BETWEEN HOSE AND STEERING CYLINDER ADAPTER))
5.	38H1168	[1]	Adapter Fitting	(WITHOUT MFWD)
6.	T77857	[8]	O-Ring
7.	38H1161	[1]	Adapter Fitting
8.	R26375	[6]	O-Ring
9.	38H1159	[2]	Adapter Fitting
10.	R28782	[3]	O-Ring
11.	AT101577	[1]	Hydraulic Hose - Fabricate	9/16" X 489 MM (19-1/4") X 9/16"
12.	AT101576	[1]	Hydraulic Hose - Fabricate	9/16" X 445 MM (17-1/2") X 1/4"
13.	38H1003	[1]	Elbow Fitting
14.	AT106519	[1]	Hydraulic Hose - Fabricate	13/16" X 1975 MM (77-3/4") X 13/16"
15.	AT101779	[1]	Hydraulic Hose - Fabricate	13/16" X 445 MM (17-1/2") X 13/16"
16.	T78787	[1]	Clamp	(SUB FOR T24959, THIS APPLICATION)
17.	R26375	[1]	O-Ring
18.	AT100548	[1]	Line
19.	AT132903	[1]	Check Valve	(SUB FOR AT107698)
20.	AT100471	[2]	Hydraulic Hose - Fabricate	9/16" X 519 MM (20-1/2") X 9/16" (WITHOUT MFWD) (SUB AT114474, ALSO ORDER T77613, 38H1004 AND R26448)
20.	AT114474	[2]	Hydraulic Hose - Fabricate	9/16" X 519 MM (20-1/2") X 17.4752" (WITHOUT MFWD)
21.	19M7864	[2]	Screw	M8 X 12
22.	24H1136	[2]	Washer	11/32" X 11/16" X 0.065"
23.	R42009	[3]	Clamp
24.	R46415	[3]	Clamp
25.	38H1176	[1]	Adapter Fitting
