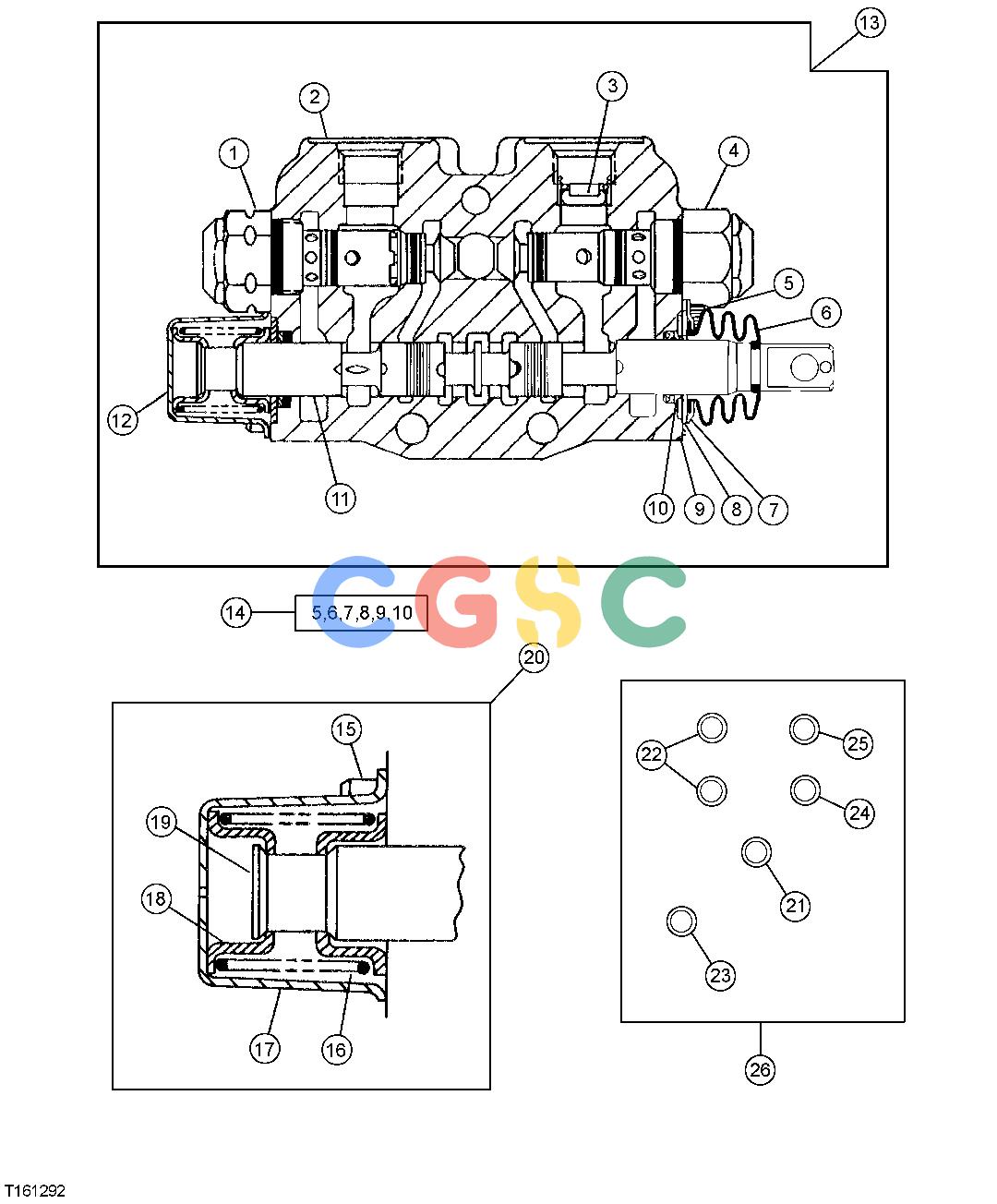

约翰迪尔零件查询210C - BACKHOE, LOADER THIRD FUNCTION LOADER VALVE SECTION AND POSITIONEREPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT101701
|
[1] |
Pressure Relief Valve
|
|
| 2. |
........
|
[1] |
Housing
|
|
| 3. |
AT101746
|
[1] |
Orifice
|
|
| 4. |
AT101699
|
[1] |
Pressure Relief Valve
|
|
| 5. |
T104773
|
[2] |
Cap Screw
|
|
| 6. |
T151335
|
[1] |
Boot
|
|
| 7. |
T151337
|
[1] |
Retainer
|
|
| 8. |
........
|
[1] |
Plate
|
|
| 9. |
........
|
[1] |
Retainer
|
|
| 10. |
........
|
[2] |
Seal
|
|
| 11. |
........
|
[2] |
Seal
|
|
| 12. |
AT104333
|
[1] |
Hydr./Pilot Control Valve
|
|
| 13. |
AT167240
|
[1] |
Valve
|
|
| 14. |
AT315751
|
[1] |
Seal Kit
|
|
| 15. |
19H3554
|
[2] |
Screw
|
|
| 16. |
T105045
|
[1] |
Spring
|
|
| 17. |
........
|
[1] |
Cap
|
|
| 18. |
T104788
|
[1] |
Locking Collar
|
|
| 19. |
T104789
|
[1] |
Valve Spool
|
|
| 20. |
AT104333
|
[1] |
Hydr./Pilot Control Valve
|
|
| 21. |
T49819
|
[2] |
O-Ring
|
|
| 22. |
T142419
|
[2] |
O-Ring
|
|
| 23. |
........
|
[1] |
Snap Ring
|
|
| 24. |
T135968
|
[2] |
O-Ring
|
|
| 25. |
T135797
|
[1] |
O-Ring
|
|
| 26. |
AT160682
|
[1] |
Seal Kit
|
|
