约翰迪尔零件查询210C - BACKHOE, LOADER Relief Valves (Loader Control Valve Third Function Section)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 531 次

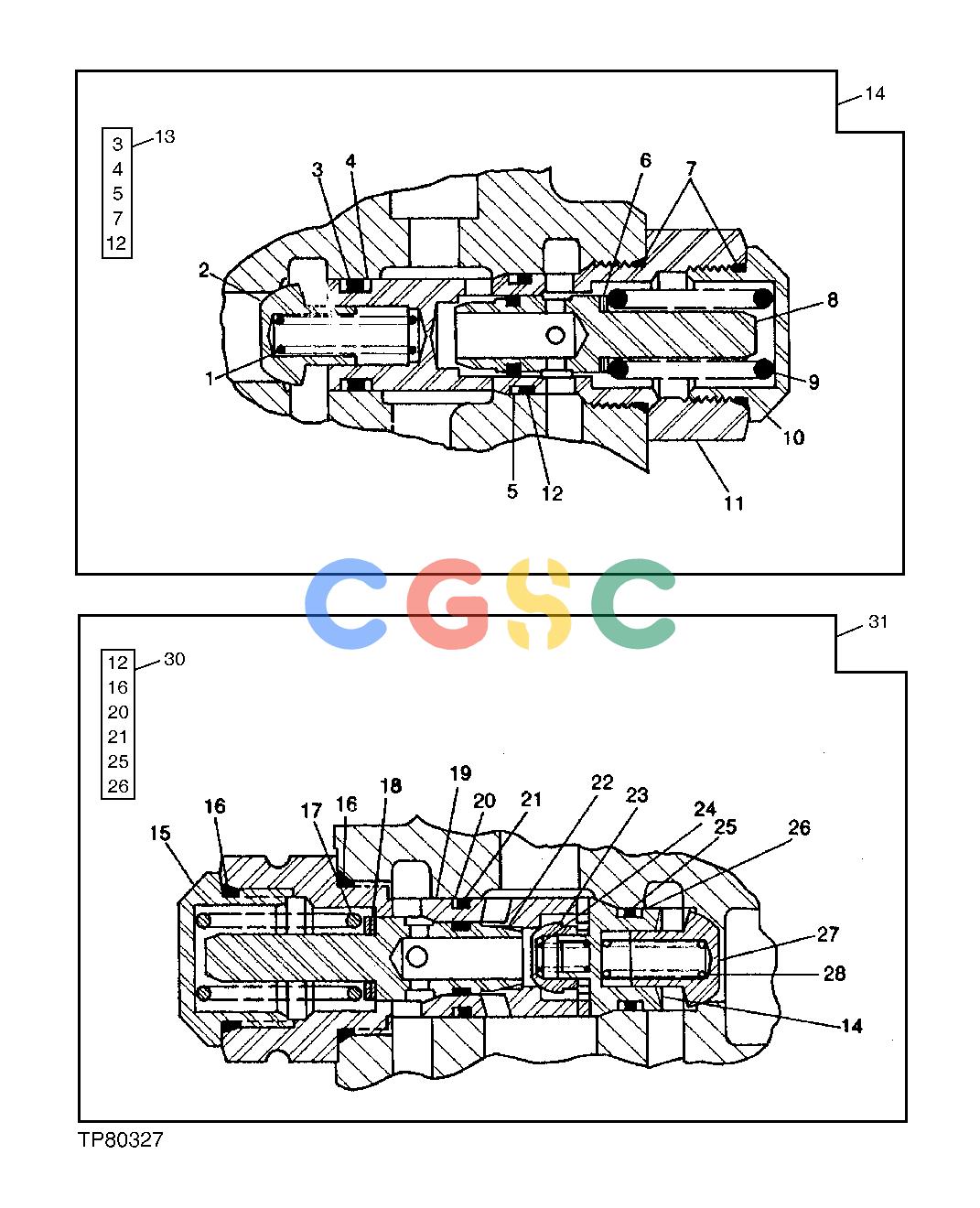

Pos.	Part No	Qty	Parts name	Comments
1.	T36012	[1]	Spring
2.	U13616	[1]	Pressure Relief Valve
3.	H63283	[1]	O-Ring
4.	T35984	[2]	Back-Up Ring
5.	T35985	[1]	Back-Up Ring
6.	........	[AR]	Solid Shim	(SUB AT101699)
7.	W19903	[2]	O-Ring
8.	........	[1]	Poppet	(SUB AT101699)
9.	........	[1]	Spring	(SUB AT101699)
10.	........	[1]	Cap	(SUB AT101699)
11.	........	[1]	Case	(SUB AT101699)
12.	T77932	[1]	O-Ring	(SUB FOR Z29304)
13.	AT160684	[1]	Seal Kit
14.	AT101699	[1]	Pressure Relief Valve	(TOP BUCKET SECTION)
15.	........	[1]	Cap	(SUB AT101701)
16.	W19903	[2]	O-Ring
17.	........	[1]	Spring	(SUB AT101701)
18.	........	[AR]	Solid Shim	(SUB AT101701)
19.	........	[1]	Case	(SUB AT101701)
20.	T35985	[1]	Back-Up Ring
21.	T77932	[1]	O-Ring	(SUB FOR Z29304)
22.	........	[1]	Poppet	(SUB AT101701)
23.	........	[1]	Poppet	( T58862 NO LONGER AVAILABLE)
24.	........	[1]	Spring	( T58863 NO LONGER AVAILABLE)
25.	H63283	[1]	O-Ring
26.	T35984	[1]	Back-Up Ring
27.	........	[1]	Poppet	( T58864 NO LONGER AVAILABLE)
28.	........	[1]	Spring	( T58865 NO LONGER AVAILABLE)
29.	........	[1]	Retainer	(SUB AT101701)
30.	AT160684	[1]	Seal Kit
31.	AT101701	[1]	Pressure Relief Valve	(BOTTOM BUCKET SECTION)
