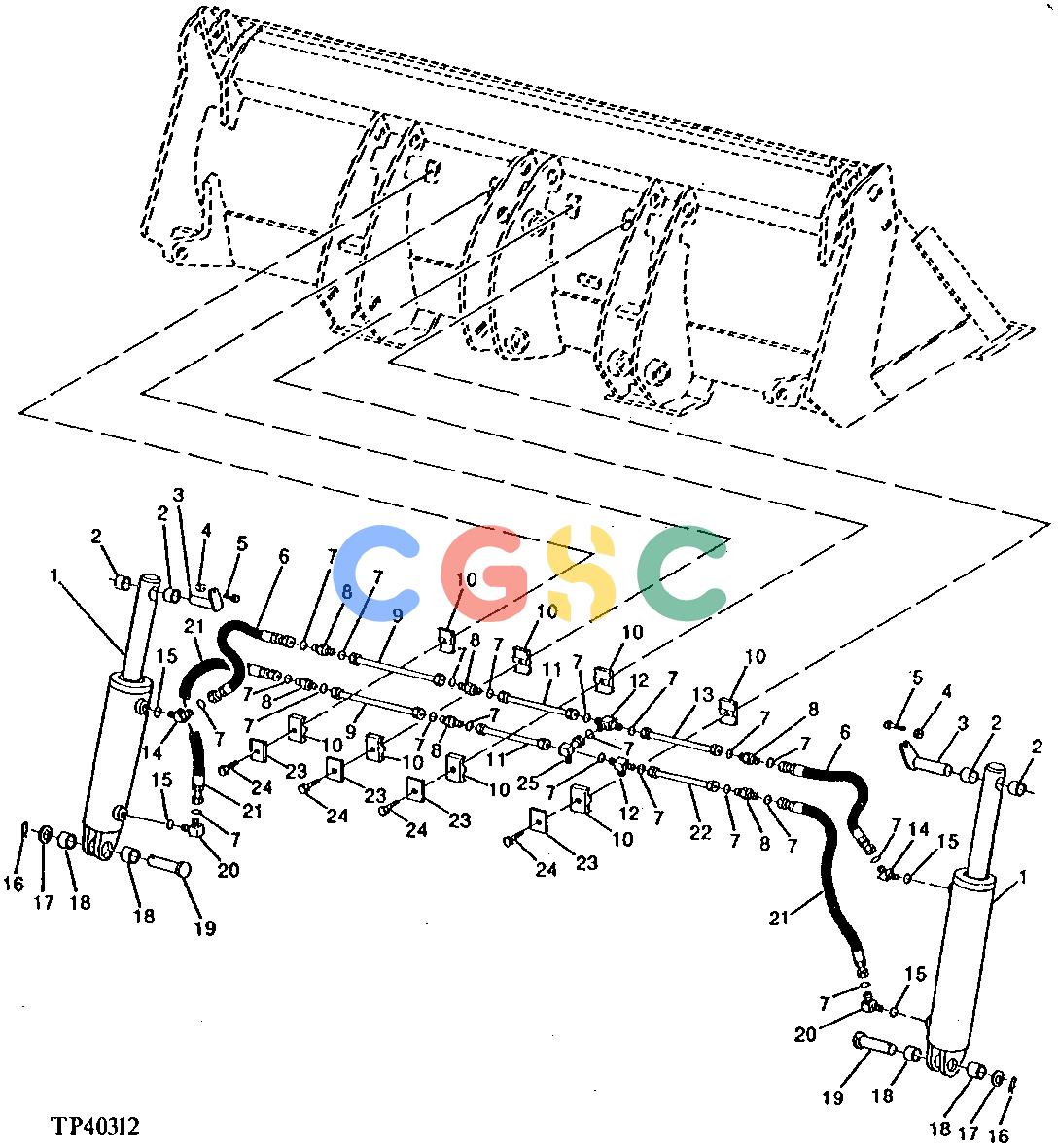

Pos.	Part No	Qty	Parts name	Comments
1.	........	[2]	Cylinder	( AT190880 NO LONGER AVAILABLE) (SUB FOR AT142578 ) (SUB (2) AH210737, (2) T191318 AND (6) 24H1138)
2.	T128532	[4]	Bushing	26.289 X 34.798 X 19.050 MM (1.035" X 1.370" X 3/4") (USE WITH AT142578)
2.	A24073	[4]	Bushing	25.400 X 31.750 X 19.812 MM (1" X 1-1/4" X 0.780") (USE WITH AT190880)
3.	AT190900	[2]	Pin	(SUB FOR AT142584)
4.	T54568	[2]	Lock Nut
5.	19H2676	[2]	Cap Screw	3/8" X 1"
6.	AT81928	[2]	Hydraulic Hose - Fabricate	13/16" X 364 MM (14-1/4") X 13/16"
7.	T77857	[21]	O-Ring
8.	38H1279	[6]	Union Fitting
9.	AT142586	[2]	Oil Line
10.	H135156	[8]	Clamp
11.	AT142585	[2]	Oil Line
12.	38H1206	[2]	Tee Fitting
13.	AT142587	[1]	Oil Line
14.	38H1521	[2]	Elbow Fitting
15.	R26448	[4]	O-Ring
16.	11M7030	[2]	Cotter Pin	5 X 40 MM
17.	24H1138	[2]	Washer	1-1/16" X 2" X 0.134"
18.	T128531	[4]	Bushing	26.289 X 34.798 X 12.700 MM (1.035" X 1.370" X 1/2") (USE WITH AT142578)
18.	A24073	[4]	Bushing	25.400 X 31.750 X 19.812 MM (1" X 1-1/4" X 0.780") (USE WITH AT190880)
19.	........	[2]	Pin	( T185041 NO LONGER AVAILBLE) (SUB FOR T128536 ) (SUB (2) T191318 AND (6) 24H1138)
20.	38H1314	[2]	Elbow Fitting
21.	AT142589	[2]	Hydraulic Hose - Fabricate	13/16" X 558 MM (22") X 13/16"
22.	AT142588	[1]	Oil Line
23.	H121168	[4]	Plate
24.	19H2661	[4]	Cap Screw	5/16" X 1-3/8"
25.	38H1095	[1]	Elbow Fitting
